Maintenance
40
05.00 | PGN-plus-P | Assembly- and Operating Manual | en | 0389753
7.4 Servicing the gripper
NOTE
SCHUNK recommends dismantling, dry cleaning without degreas-
ing agents and re-lubricating for every maintenance interval, to
ensure that every lubrication point is optimally supplied with
grease.
If the gripper is not dismantled during maintenance, not every
lubrication point can be optimally supplied with lubricant.

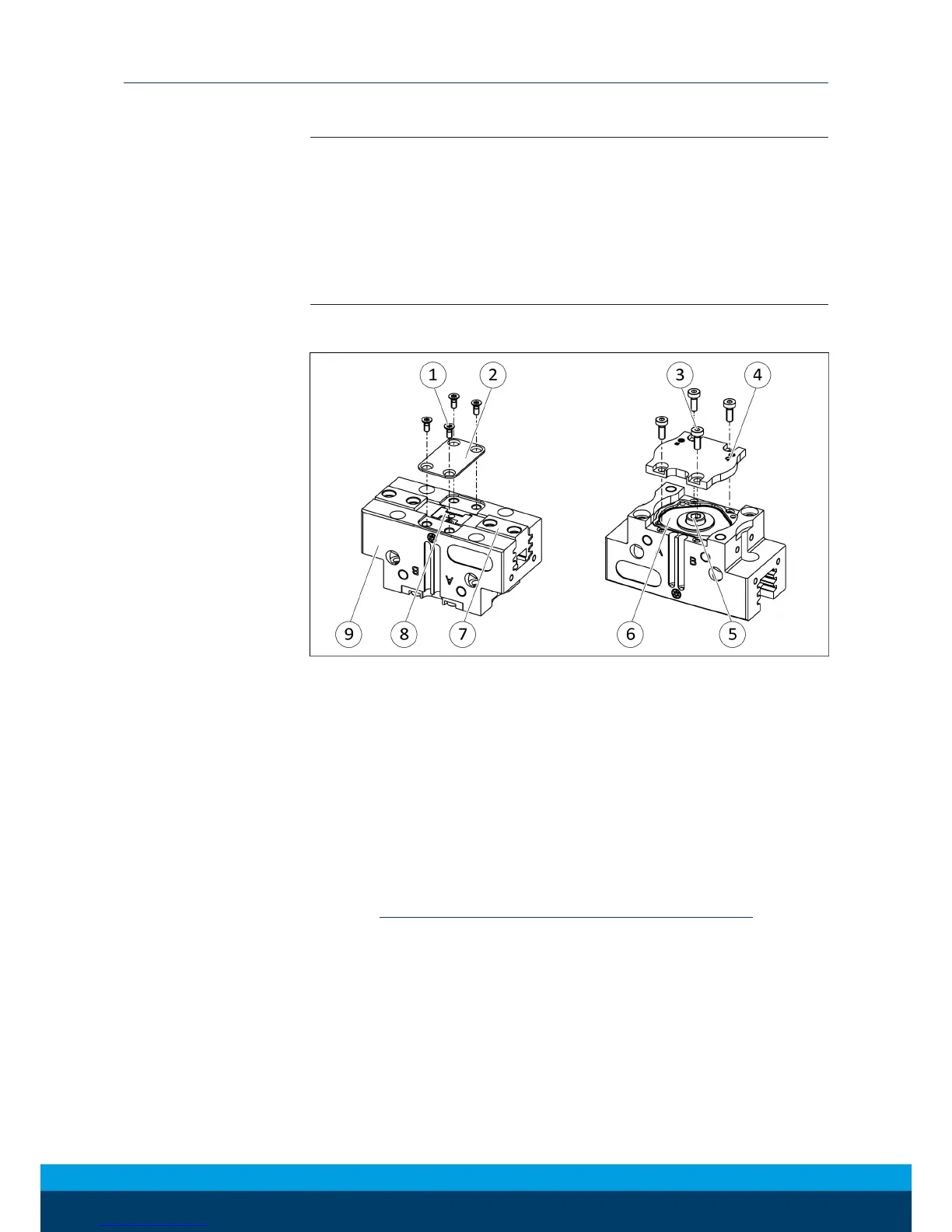

7.4.1 Disassembling and maintaining the gripper
Ø Remove all compressed air lines.
Ø Unscrew screws (1) and remove cover (2).
Ø Mark the installation positions of the wedge hook (8) and the
base jaws (7) on the housing (9).
Ø Unscrew the screws (3) and remove the cover (4).
Ø Unscrew screw (5) and take cylinder piston (6) out of the hous-
ing (9).
Ø Take wedge hook (8) and both base jaws (7) out of the housing (9).
Ø Clean all parts.
Ø Lubricate metallic sliding surfaces, all seals and the cylinder sur-
faces, Lubricants/Lubrication points (basic lubrication) [
}
39].
✓ Apply a thin film of lubricant using a lint-free cloth.
Ø Assemble gripper in the reverse order.
✓ Observe the installation positions of the wedge hook (8) and
the base jaws (7).
