Assembly
26
05.00 | PGN-plus-P | Assembly- and Operating Manual | en | 0389753
5.4.3 Setting dimensions

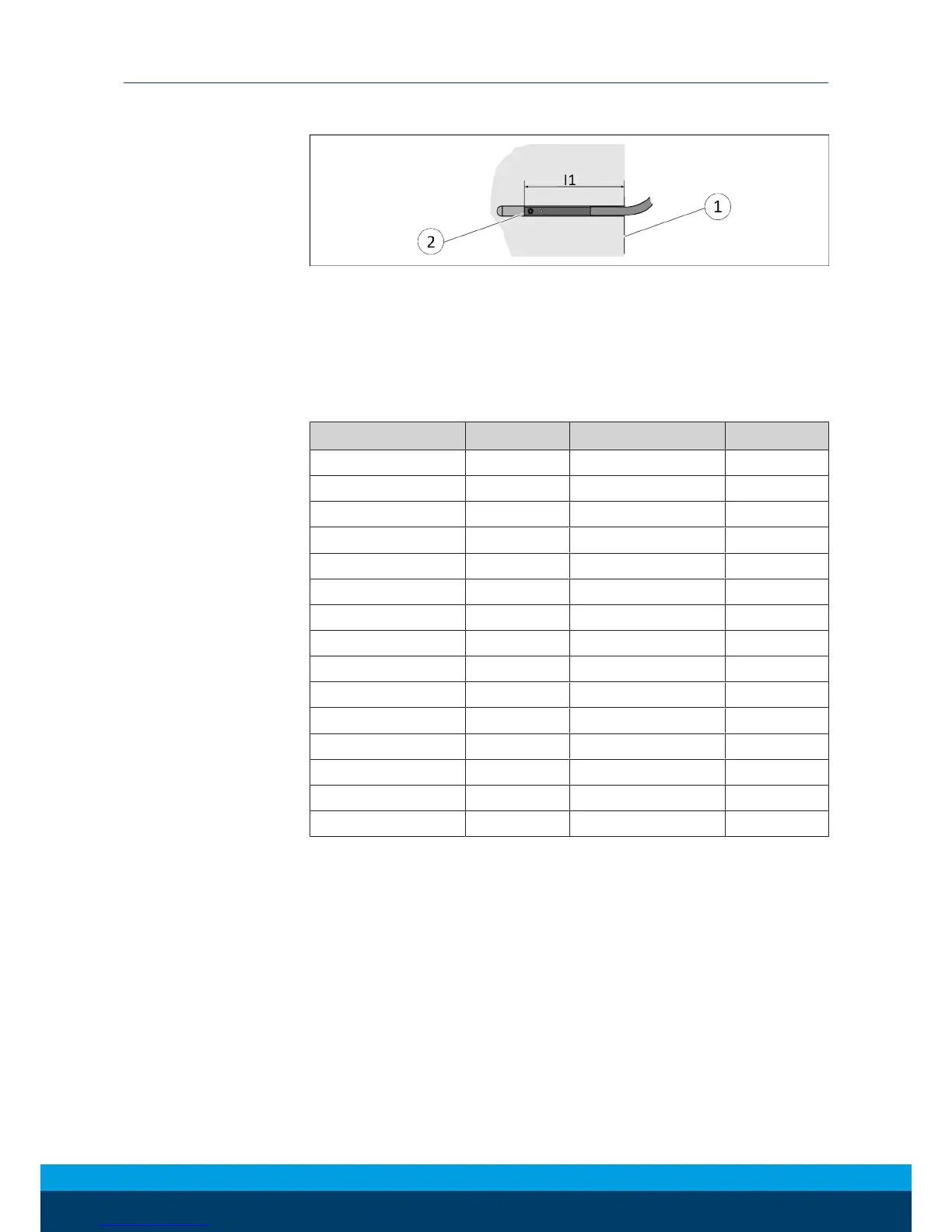

* Setting dimension I1, from product bottom edge (1) to front sensor (2)
The setting dimension applies for the following sensors:
• Programmable magnetic switch MMS 22-PI1
• Programmable magnetic switch MMS 22-PI2
• Analog magnetic switch MMS 22-A
• Programmable magnetic switch MMS-P 22
Size l1* [mm] Size l1* [mm]
40 11.9 125 30
40 AS 11.9 125 AS 30
40 IS 21.9 125 IS 60
50 22 160 37
50 AS 22 160 AS 31.5
50 IS 38 160 IS 75.5
64 17.8 200 40.5
64 AS 17.8 200 AS 34
64 IS 35.8 200 IS 92.2
80 25.8 240 43
80 AS 25.8 240 AS 36
80 IS 43.8 240 IS 101.5
100 27
100 AS 27
100 IS 53
