Assembly
22
05.00 | PGN-plus-P | Assembly- and Operating Manual | en | 0389753
5.2.2 Pneumatic connection
NOTE
• Observe the requirements for the compressed air supply, Tech-
nical data [
}
16].
• In case of compressed air loss (cutting off the energy line), the
components lose their dynamic effects and do not remain in a
secure position. However, the use of a SDV-P pressure mainten-
ance valve is recommended in this case in order to maintain the
dynamic effect for some time. Product variants are also offered
with mechanical gripping force via springs, which also ensure a
minimum clamping force in the event of a pressure drop.

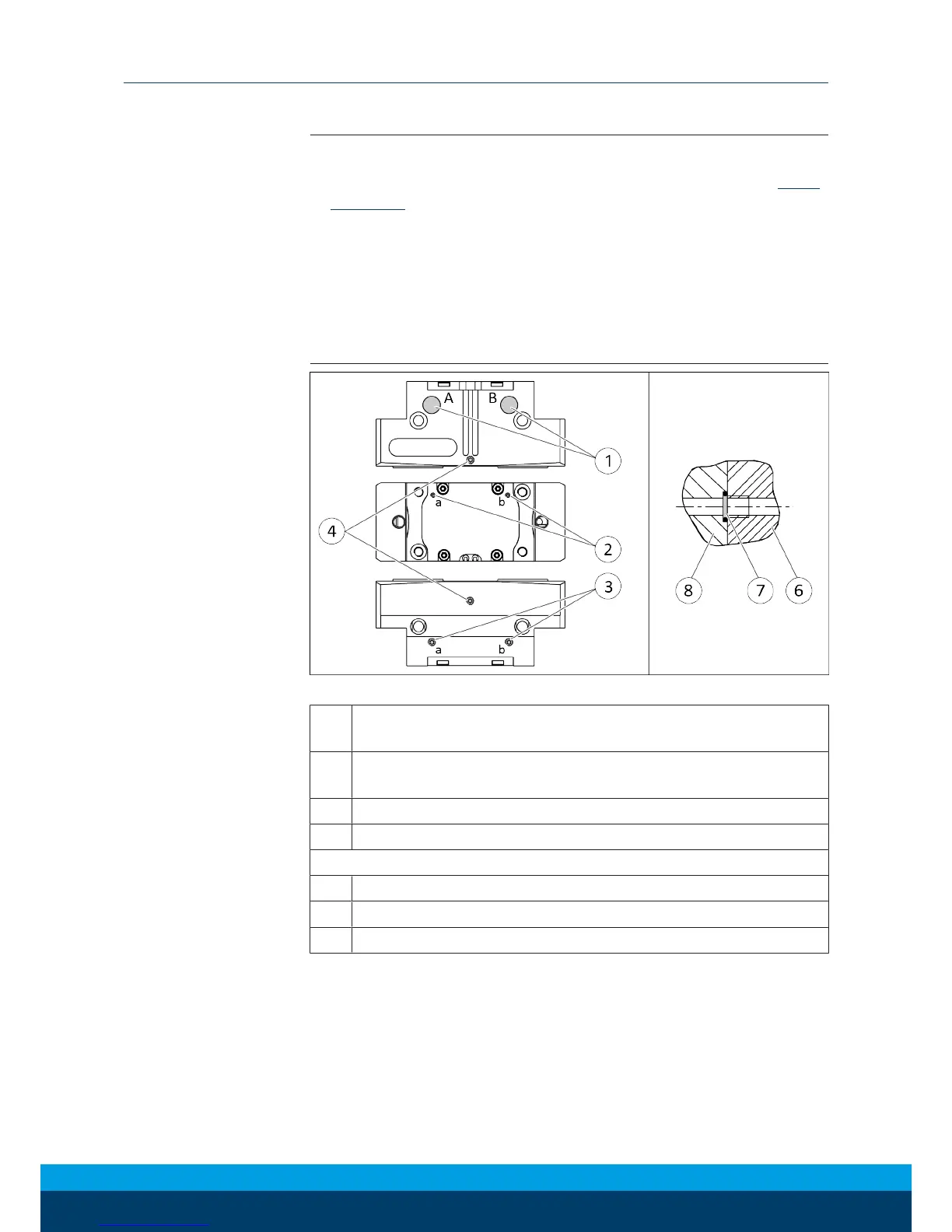

Air connections
1 Main connections (Hose connection)
(A = open, B = close)
2 Hose-free direct connection at the base
(a = open, b = close)
3 Hose-free direct connection
4 Air purge connection
Hose-free direct connection
6 Product
7 O-ring
8 Attachment
• Open only the air connections that are needed.
• Close unused main air connections using the screw plugs from
the enclosed pack.
• For a hose-free direction connection, use the O-rings from the
enclosed pack.
