SCHUNK PGN-plus-P 64 User Manual

Assembly
05.00 | PGN-plus-P | Assembly- and Operating Manual | en | 0389753
19
Ø Connect the sensor, see assembly and operating manual of the
sensor.
Ø Mount the sensor, Mounting the sensor [
}
24].
Dust-tight (SD)
NOTE
In order to achieve perfect functioning of the gripper, the set-
screw of the air purge connection must be removed and replaced
with a pneumatic connection when using the dust-tight variant
(SD). SCHUNK recommends using the air purge connection within
the scope of the technical data, Technical data [
}
16].
5.2 Connections
5.2.1 Mechanical connection
Evenness of the
mounting surface
The values apply to the whole mounting surface to which the
product is mounted.
Requirements for evenness of the mounting surface (Dimensions in mm)
Edge length Permissible unevenness
< 100 < 0.02
> 100 < 0.05
Connections at the
base jaws

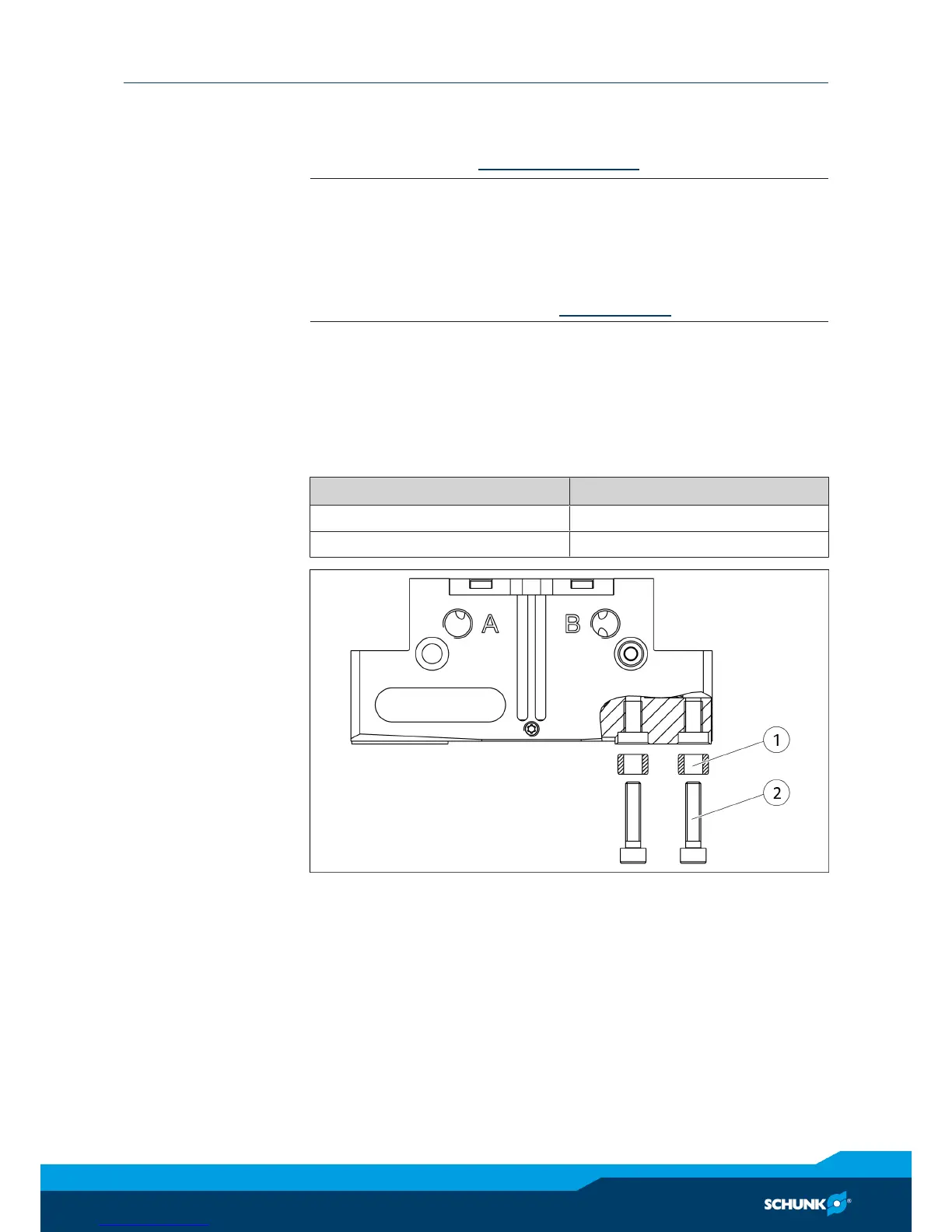

Connections at the base jaws
