Assembly
20
05.00 | PGN-plus-P | Assembly- and Operating Manual | en | 0389753
Item Mounting PGN-plus-P
40 50 64 80 100 125 160 200 240
1 Centering sleeve Ø 4 Ø 5 Ø 6 Ø 8
Ø10 Ø10 Ø14 Ø16 Ø16
2 Thread in base
jaws
M2.5
M3 M4 M5 M6 M6
M10 M12 M12
Mounting screw
strength class
12.9
Max. depth of
engagement
from locating
surface [mm]
6.1 8.5 10.7 11.9 14.2 14.2 17 19.3 21.1
Dust-tight (SD)
NOTE
On delivery of the dust-tight version (SD) the intermediate jaws
are screwed onto the base jaws. The intermediate jaws can be-
come off while removing the screws.
Observe during assembly, that the intermediate jaws are between
the base jaws und the gripper finger.

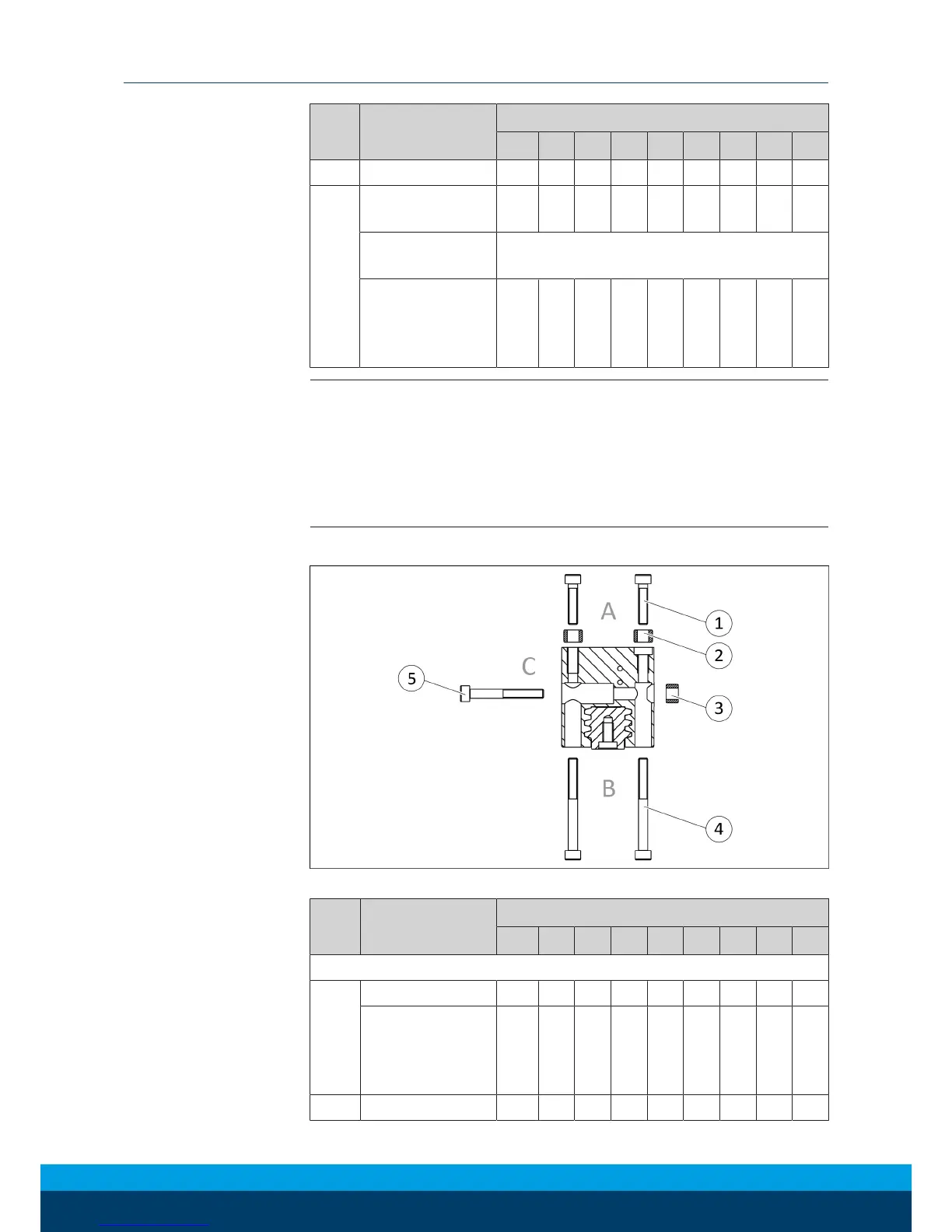

Connections at the
housing
The product can be mounted from three sides.
Connections at the housing
Item Mounting PGN-plus-P
40 50 64 80 100 125 160 200 240
Side A
1 Mounting screw M3 M4 M5 M5 M6 M8 M8
M10 M12
Max. depth of
engagement
from locating
surface [mm]
6 11 12 15 14 20
20.5
20
25.5
2 Centering sleeve Ø5 Ø6 Ø8 Ø8
Ø10 Ø12 Ø12 Ø14 Ø16
