Assembly
05.00 | PGN-plus-P | Assembly- and Operating Manual | en | 0389753
21
Item Mounting PGN-plus-P
40 50 64 80 100 125 160 200 240
Side B
4 Bore for mount-
ing screws
M2.5
M3 M4 M4 M5 M6 M6 M8
M10
Mounting screw
according to
standard
DIN EN ISO 4762
2 Centering sleeve Ø5 Ø6 Ø8 Ø8
Ø10 Ø12 Ø12 Ø12 Ø16
Side C
5 Bore for mount-
ing screws
M2.5
M3 M4 M5 M6 M8 M8
M10 M12
Mounting screw
according to
standard
DIN EN ISO 4762
Max. strength class 8.8
3 Centering sleeve Ø5 Ø6 Ø8 Ø8
Ø10 Ø12 Ø12 Ø14 Ø16
Connections for addi-
tional structure

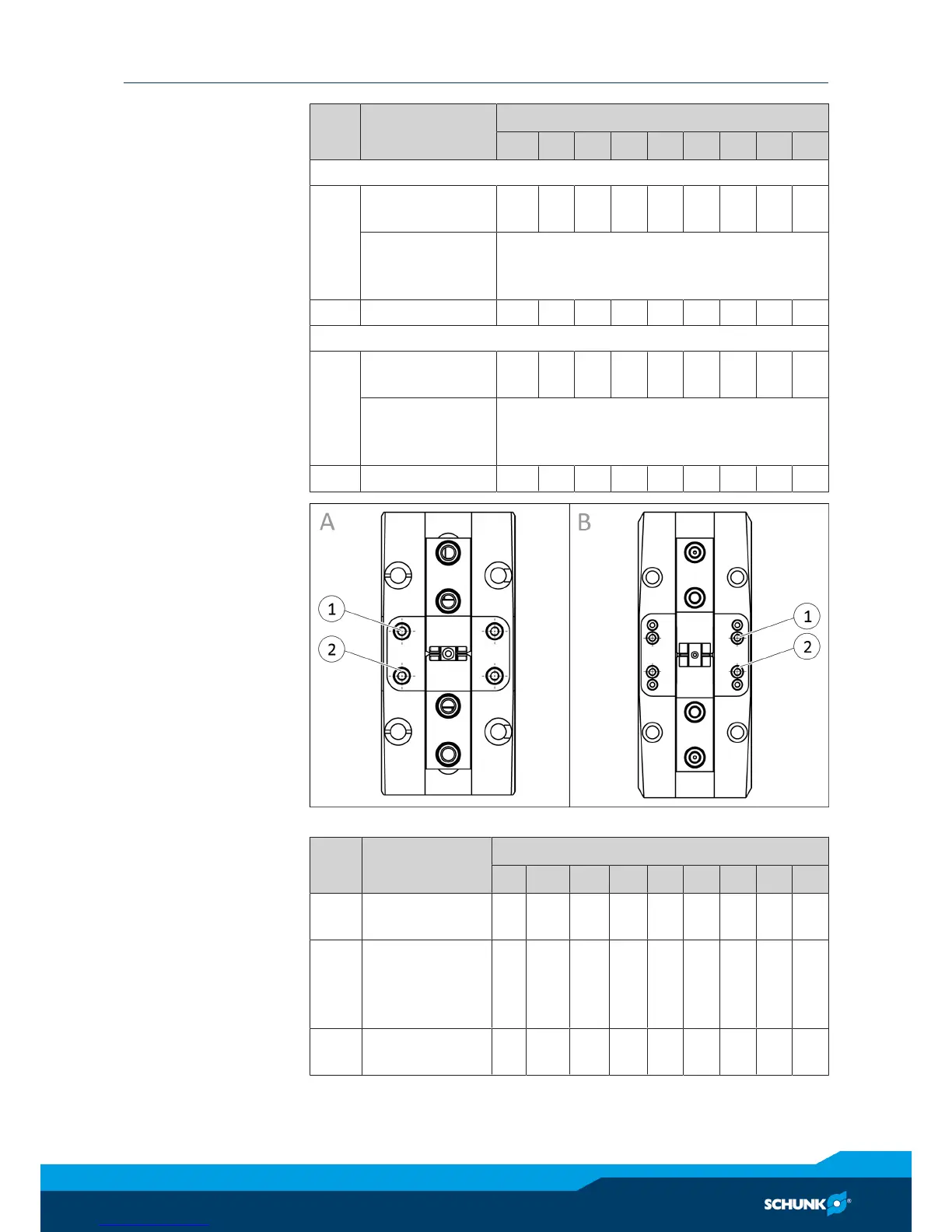

Connections at the housing, sizes: A - to 100, B - from 125
Item Mounting PGN-plus-P
40 50 64 80 100 125 160 200 240
1 Thread in base
jaws
M2
M2.5 M2.5 M2.5
M3 M4 M5 M6 M6
Max. depth of
engagement
from locating
surface [mm]
5 7.1 7.1 7.1 8.4
10.9
13 12 12
2 Centering
sleeve
Ø3 Ø4 Ø4 Ø4 Ø5 Ø6 Ø8 Ø1
0
Ø1
0
