Ø Turn the sensor (1) into the groove (2).
OR: Move the sensor (1) into the slot (2) until it fits closely to
the slot nut.
Ø Secure the sensor (1) using the set-screw (4).
Tightening torque: 10Ncm
NOTE
Without throttling the gripper is too fast, so that the teaching of
the sensor does not function reliably. Throttle valves or other
throttle valves with a diameter of 0.8 mm can be used for the
teaching process.
ID No. Throttle reduction M5 - 0.8: 9953035

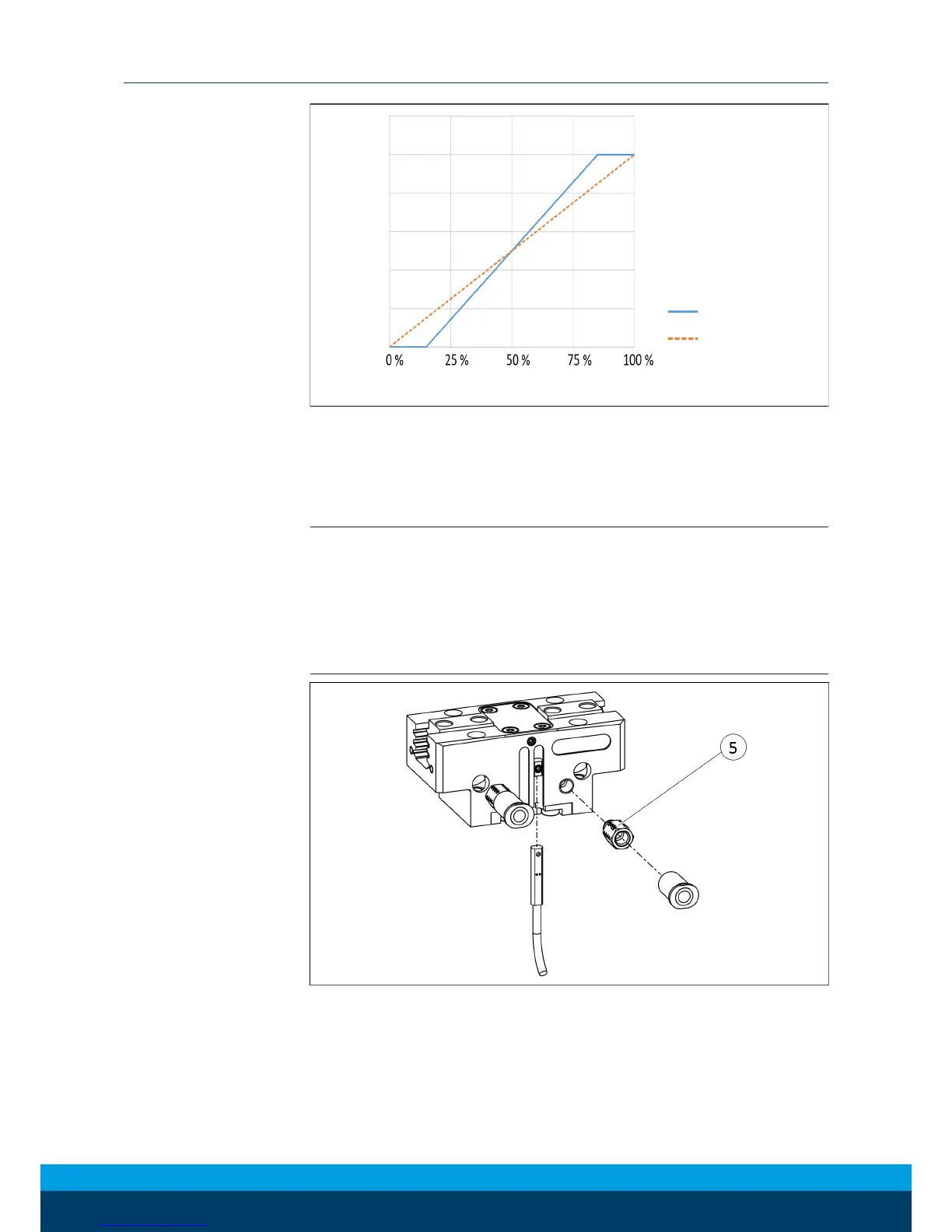

Ø Install a throttle reduction M5 - 0.8 (5) at both main connec-
tions "A" and "B".
Ø Adjust the sensor (1), see assembly- and operating manual of
the sensor.
Ø Remove throttle reduction (5) after teaching the sensor.
