Maintenance
44
05.00 | PGN-plus-P | Assembly- and Operating Manual | en | 0389753

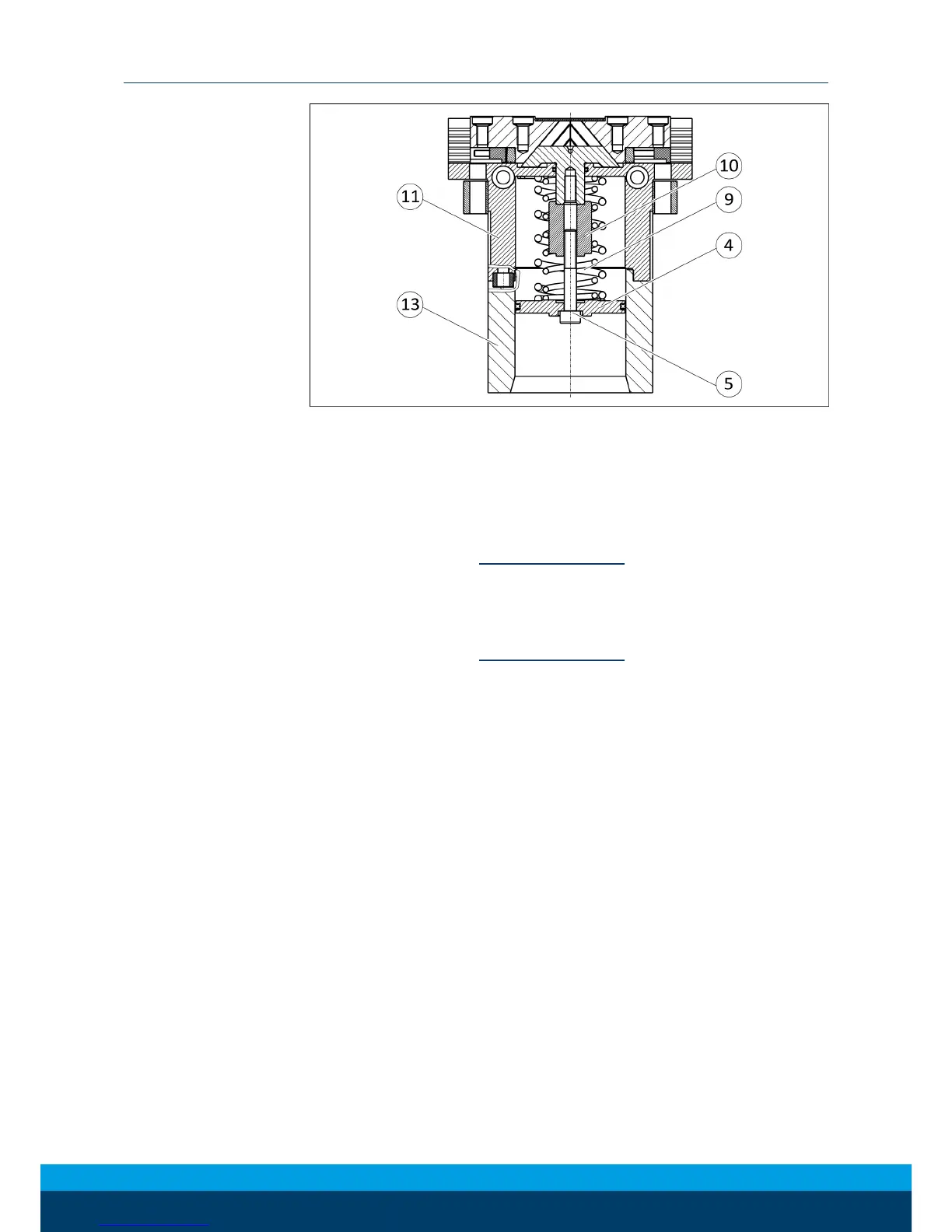

Ø Place assembly device (13) onto the housing (11).
✓ The assembly device (13) is only placed on the housing and
centered using centering sleeves.
Ø Place cylinder pistons (4) on the assembly device (13), slide to-
wards the housing and tighten screw (5). Secure the screw with
medium-strength threadlocker.
Tightening torque: Tightening torques [
}
46]
Ø Take assembly device off housing.
Ø Insert flat gasket (7).
Ø Fasten the cover (6) with the screws.
Tightening torque: Tightening torques [
}
46]
Ø Fasten the cover (12) with the screws.
Ø Assemble gripper on the machine/system.
Ø Connect all compressed air lines.
