Assembly
11.00 | PGN | Assembly and Operating Manual | en | 389286
21
open close
open close

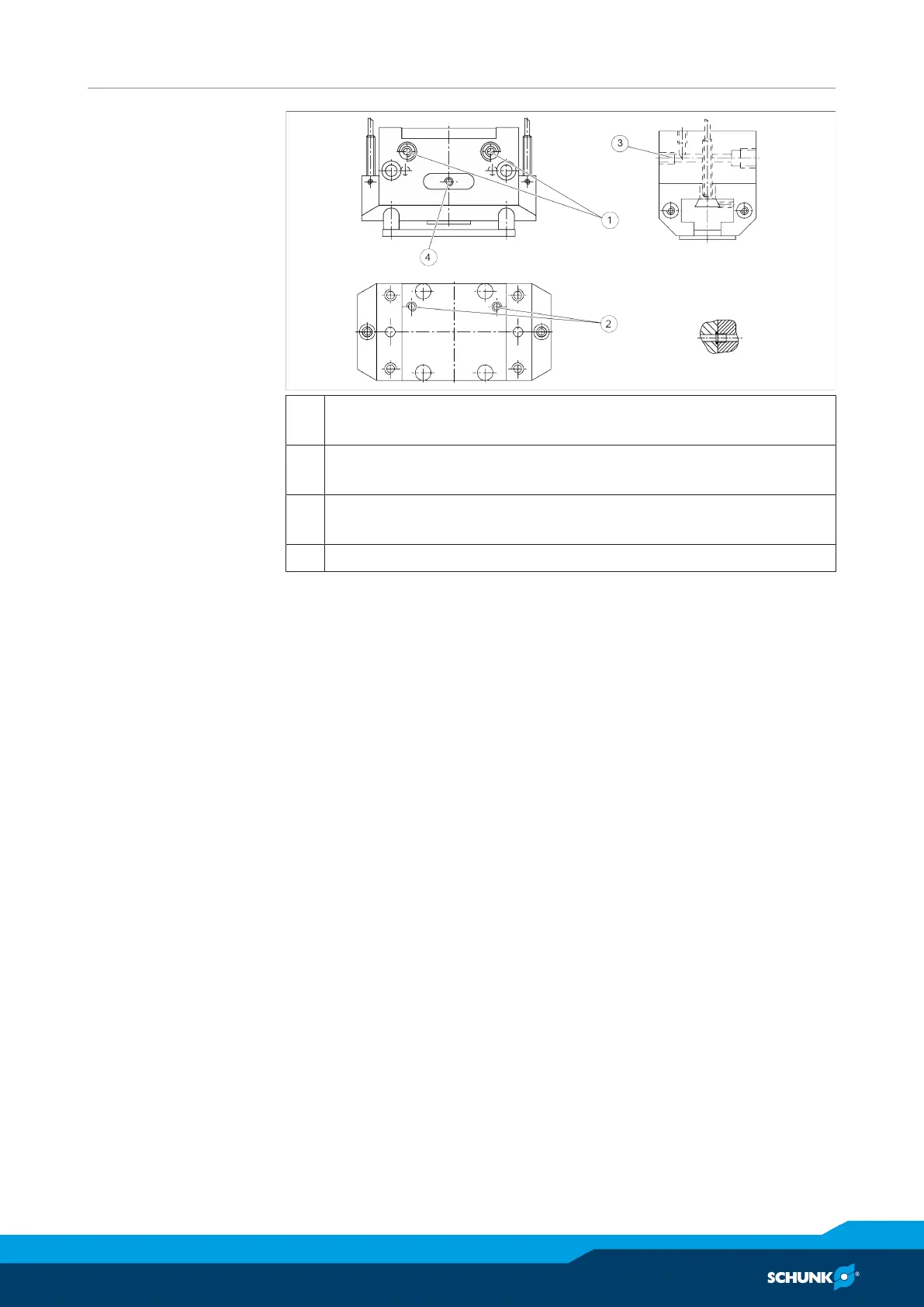

Hose-free direct connection
1 Main connections (Hose connection)
(A = open, B = close)
2 Hose-free direct connection at the base
(a = open, b = close)
3 Hose-free direct connection at the side
(a = open, b = close)
4 Air purge connection
• Open only the air connections that are needed.
• Close unused main air connections using the screw plugs from
the enclosed pack.
• For a hose-free direction connection, use the O-rings from the
enclosed pack.

SCHUNK PGN Series Specifications

General

Actuation	Pneumatic
Number of Fingers	2
Material	Aluminum
Type	Parallel gripper
Holding force without pressure	0 N
Operating pressure	4 bar - 8 bar
