SCHUNK PGN Series User Manual

Maintenance
11.00 | PGN | Assembly and Operating Manual | en | 389286
39
Assembly
Assembly takes place in the opposite order to disassembly.
Observe the following:
• Unless otherwise specified, secure all screws and nuts with
Loctite no. 243 and tighten with the appropriate tightening
torque. Screw tightening torques [
}
43]

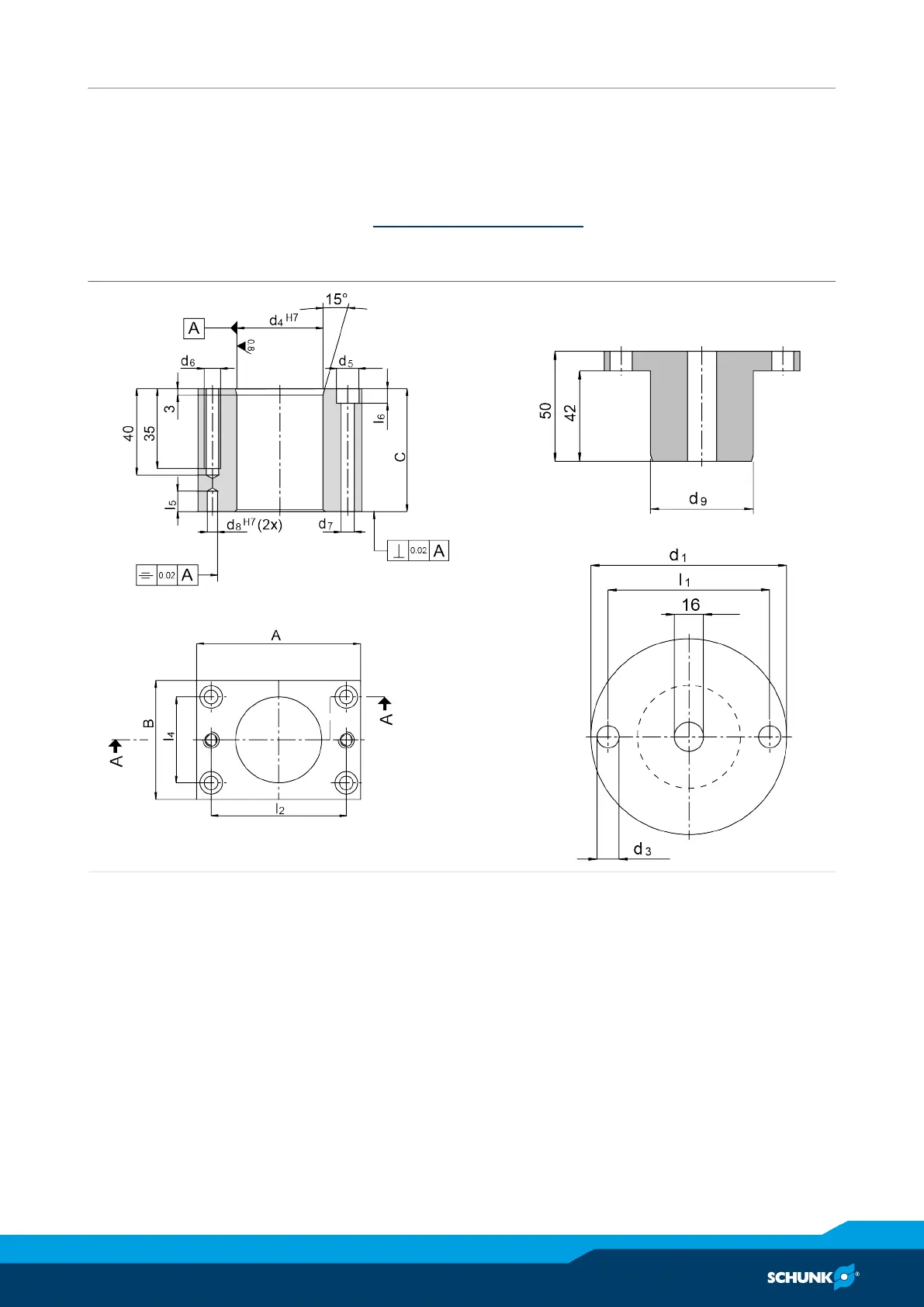

6.5.1 Assembly device
section A-A
±0.02 for Ød8H7
Device 1 Device 2
Mounting device cylinder piston

SCHUNK PGN Series Specifications

General

Actuation	Pneumatic
Number of Fingers	2
Material	Aluminum
Type	Parallel gripper
Holding force without pressure	0 N
Operating pressure	4 bar - 8 bar
