SCHUNK PGN Series User Manual

Assembly
18
11.00 | PGN | Assembly and Operating Manual | en | 389286
4 Assembly
4.1 Connections
4.1.1 Mechanical connection
WARNING
Risk of injury when the machine/system moves unexpectedly!
Switch off power supply.
Evenness of the
mounting surface
The values apply to the whole mounting surface to which the
product is mounted.
Requirements for evenness of the mounting surface (Dimensions in mm)
Edge length Permissible unevenness
< 100 < 0.02
> 100 < 0.05
Mounting
The product can be mounted from the front, from the rear or on
the side.

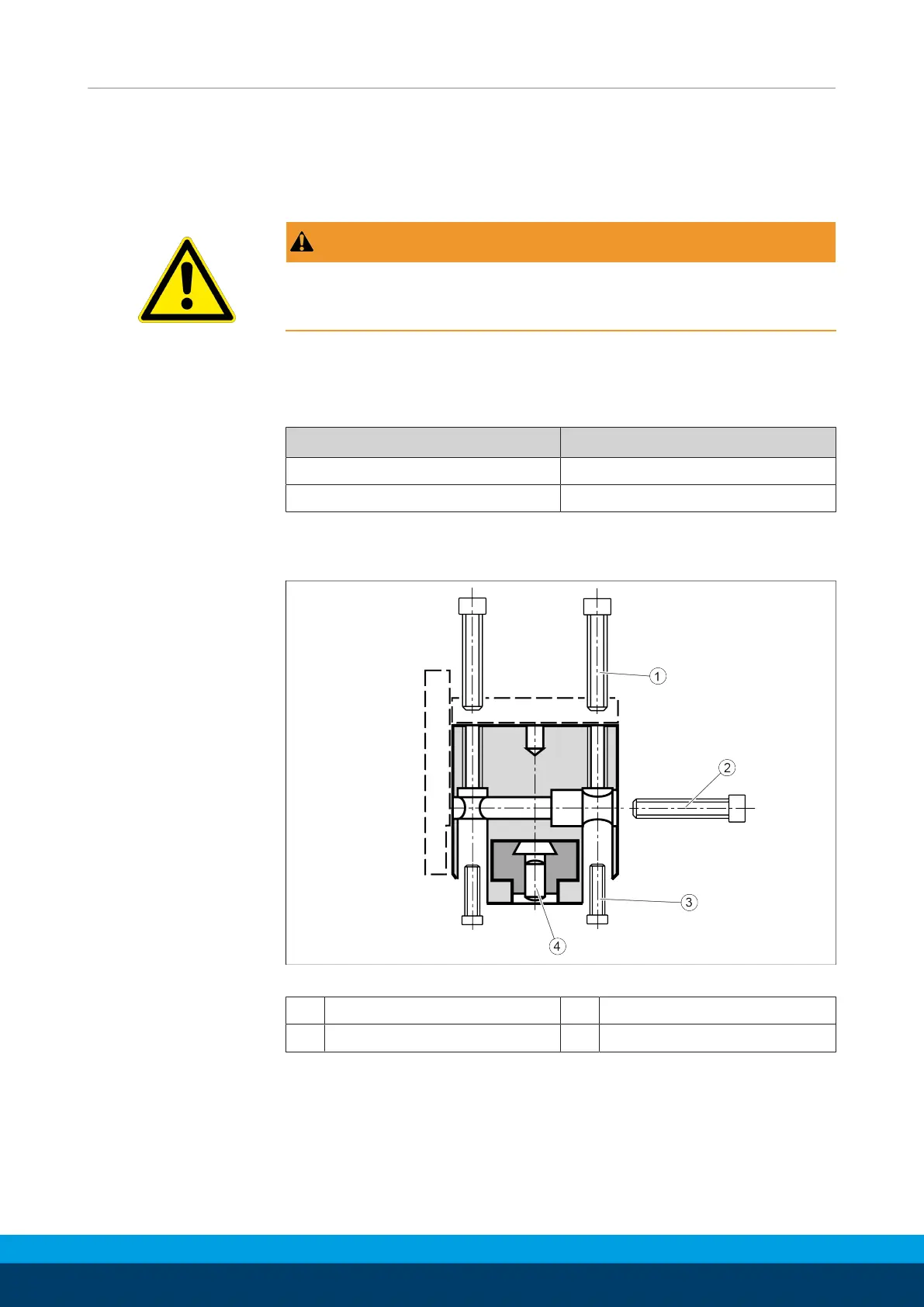

Assembly options
1 Mounting from the rear 3 Mounting from the front
2 Side mounting 4 Cylindrical pin
Maximal screw-in depth of the fastening screws provided by the
customer.

SCHUNK PGN Series Specifications

General

Actuation	Pneumatic
Number of Fingers	2
Material	Aluminum
Type	Parallel gripper
Holding force without pressure	0 N
Operating pressure	4 bar - 8 bar
