MECHANICAL PARTS REMOVAL/REPLACEMENT

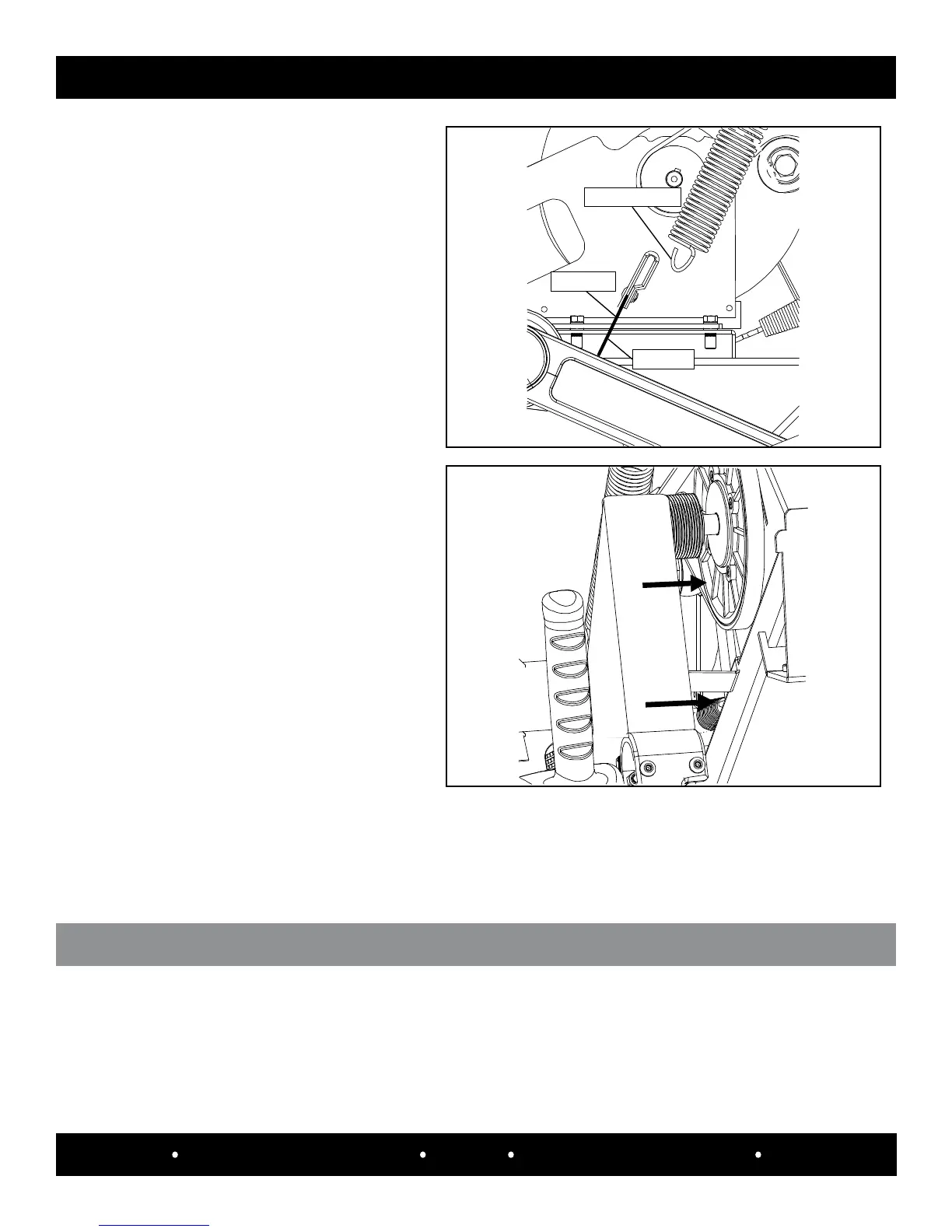

Hook belt loop here
Smooth side
Grooved side
Step 3:
Reattach the belt loop to the belt tension
spring.
Step 4:
Lift the left pedal and center the belt
onto the the clutch pulley. Verify that the
groove side of the belt is meshing with
the grooves of the pulley, then release the
pedal.
Belt
Step 5:
Reattach the covers and console according to the “Lower/Upper Cover” replacement procedure on page 31.
Follow the steps in the “Left Pedal Belt Replacement” section for the right pedal belt #A5164.
