LEFT BELT TEnSIon SprIng rEmovAL
Remove the console and lower/upper covers according to the “Lower/Upper Cover Removal” process.

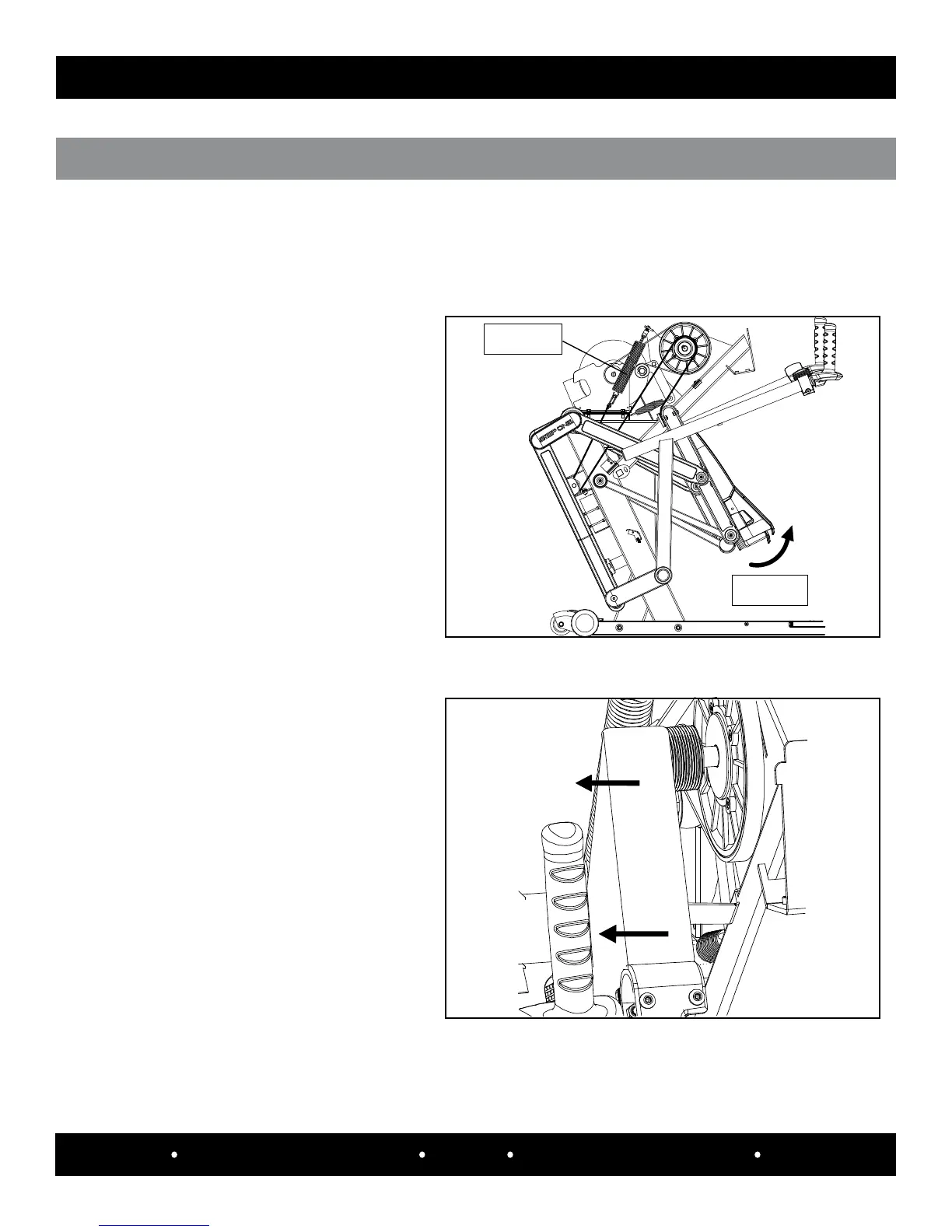

Step 1:
While holding the pedal up remove the
pedal belt (#A5164) from the clutch pulley,
then gently let the pedal down to a resting
position.
Belt
Step 2:
Lift the left pedal to relieve the tension on
the return spring.
Step 3:
Spring tension
will be less
Lift left
pedal upward
To Next Page
