F22K03Y
1

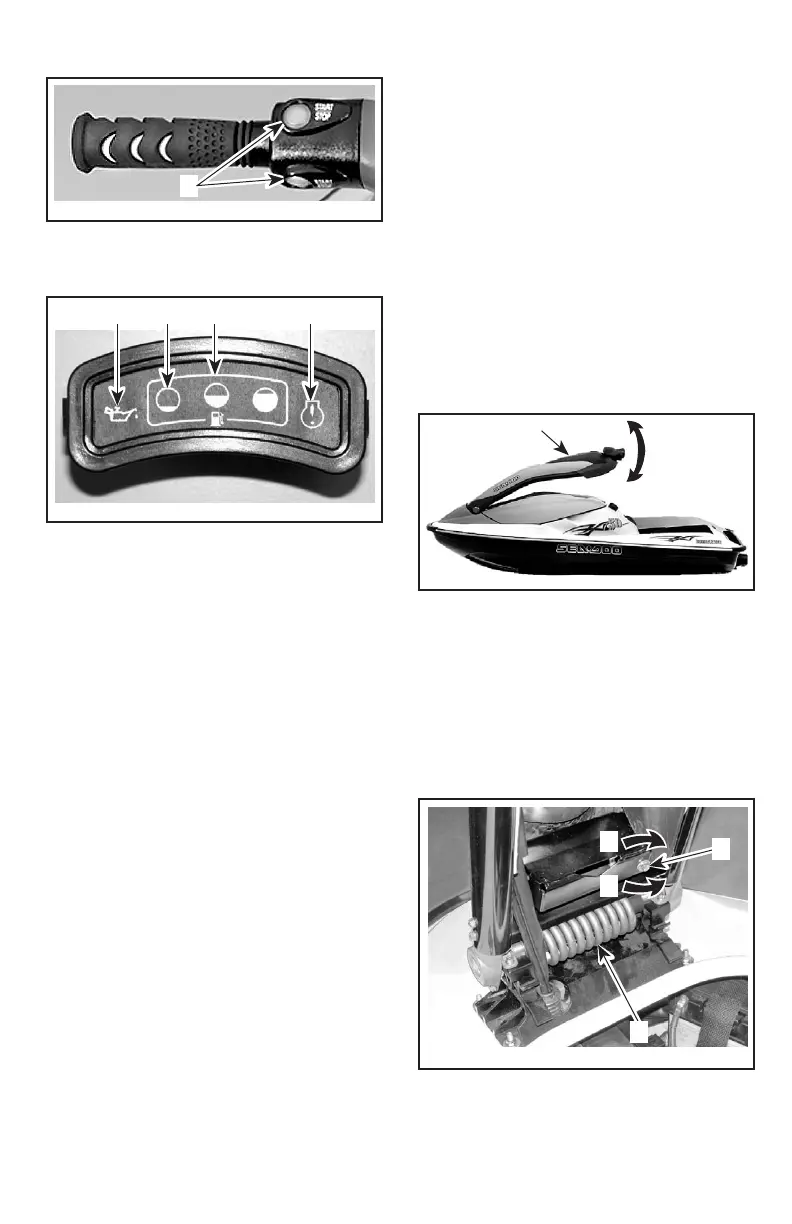

1. Engine start/stop buttons
6) Indicator Light Cluster
F22H01Y
1 3 2 4
1. Low oil warning light
2. Fuel level lights
3. Low fuel level light
4. Warning light
When installing safety lanyard, all
lights will turn on for a brief moment.
This confirms their operation.
The low oil warning light will turn on
whenever oil level is low in reservoir.
CAUTION: Always replenish oil
reservoir as soon as possible to
avoid serious engine damage.
When safety lanyard is installed and
fuel tank is full, all lights are contin-
uously turned on. As fuel level goes
down, the fuel level lights will turn off
one at a time to indicate remaining
fuel.
As a reserve indicator, the beeper will
turn on when approximately 5L (1.3
U.S. gal.) is left and the low level light
will continuously blink. It will turn off
when approximately 3 L (.8 U.S. gal.)
is left. Refer to the TROUBLESHOOT-
ING section for the coded signals.
The warning light will turn on when-
ever there is a problem with the en-
gine management system. It will
blink when there is a problem with
the O.T.A.S.
TM
system or the electric
bilge pump.
NOTE: When engine is not running
and safety lanyard is on its post, the
warning light will remain turned on un-
til safety lanyard is removed.
7) Steering Pole
In “vert” configuration, the steering
pole can be moved up and down while
driving to suit various riding position.
F22L0BY
1
1. Steering pole
Steering pole weight is reduced at the
handlebar by the action of a return
spring. You may want to change the
weight feeling at the handlebar, there
is an adjustment for that purpose. If
you install or remove the “moto“ seat,
you may want to readjust the spring
tension.
F22L14Y
2
1
3
4
1. Return spring
2. Adjustment
3. To reduce weight at handlebar
4. To add weight at handlebar
_____________________
33
