11) Air Intake Opening
Allows air into the bilge for ventilation
purposes and engine supply. If the air
intake opening is kept under water,
water will get inside the bilge under
certain circumstances.
CAUTION: If the air intake opening
is kept under water, such as when
turning constantly in tight circles,
water will get inside the bilge, which
may cause severe damage to inter-
nal parts of the engine.

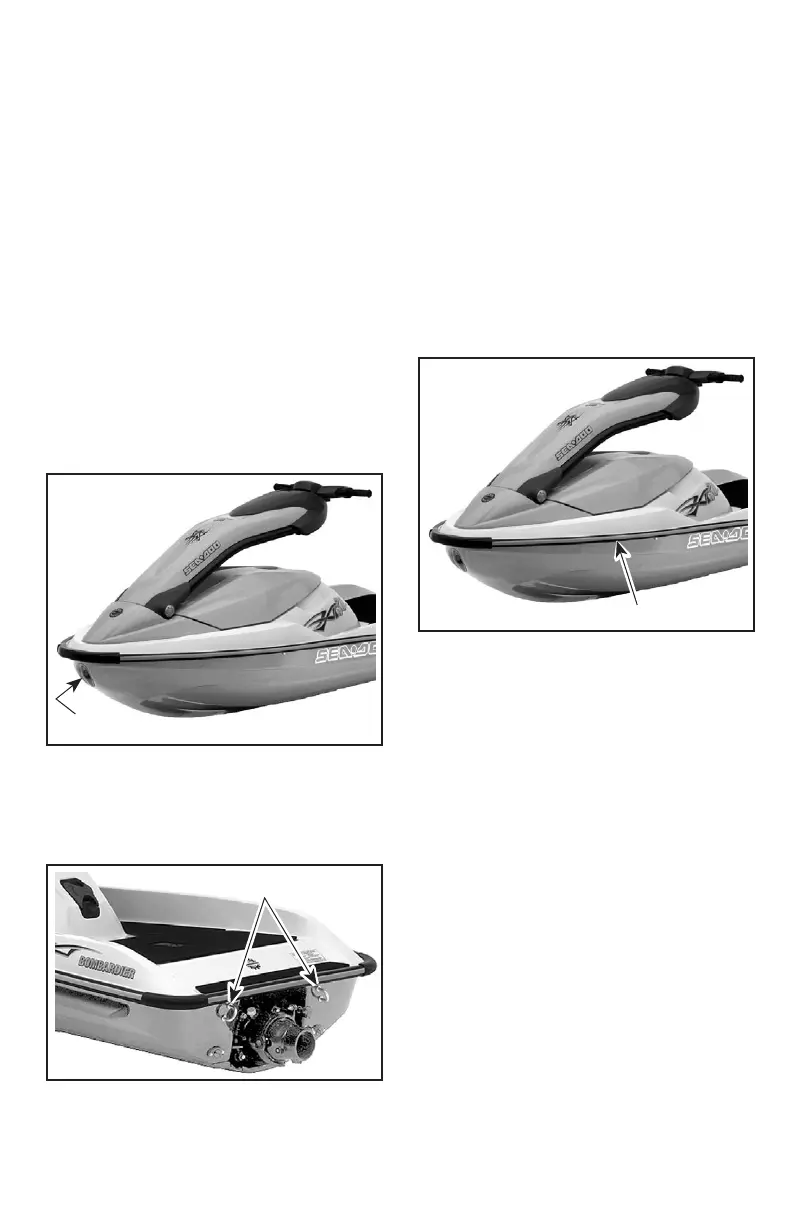

12) Bow and Stern Eyelets
Eyelets can be used for mooring or as
a tie-down points during trailering.
Bow Eyelet
1
F22L0HY
1. Bow eyelet
Stern Eyelet
These eyelets can be used for tie-
down purposes.
F22L0IY
1
1. Stern eyelets
13) Boarding Pads
Provide a cushioned surface for the
knees when boarding.
14) Rear Platform
Provides a large surface to position
your feet in the “vert“ configuration.
It also provides a convenient surface
for easy boarding.
15) Cooling System Bleed
Outlet
1
F22L0HZ
1. Bleed outlet
When engine is running, water should
flow out of the outlet. This allows air
in engine cooling system to escape. It
also confirms that water is circulating
inthecoolingsystem.
NOTE: It may be required to increase
slightly the engine RPM to see the wa-
ter flowing out.
CAUTION: Should water not flow
from outlet a few seconds after
engine starts, immediately stop
engine and refer to POST-OPERA-
TION CARE and look for COOLING
SYSTEM FLUSHING or refer to an
authorized Sea-Doo dealer for ser-
vicing.
16) Flushing Connector
A convenient connector is provided
to allow easy installation of a garden
hose to flush the cooling system.
