F22L0FY
2
1

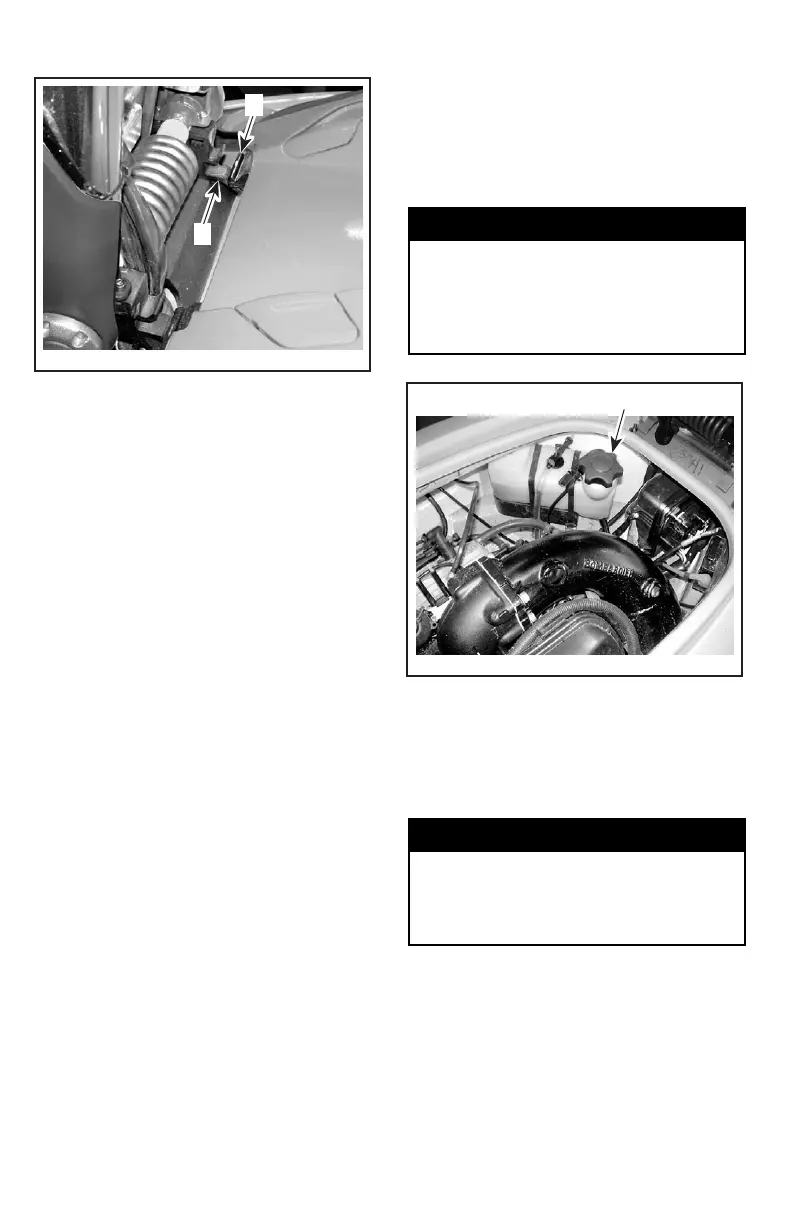

1. Tab
2. C-hook
Ensure to relatch engine cover. If en-
gine cover cannot be latched, check
position of fire extinguisher and if ob-
jects on storage tray prevent engine
cover to latch.
NOTE: Verify periodically the lock pin
tightness of engine cover. Tighten if
needed and make sure engine cover
latches properly.
Fire Extinguisher Storage Area
Referring to the above illustration in
ENGINE COVER LATCH, that area in-
cludes an area to store an approved
fire extinguisher (sold separately).
Ensure to properly position fire extin-
guisher prior to installing engine cover.
CAUTION: Ensure to properly posi-
tion fire extinguisher.
Storage Tray
Referring to the above illustration, that
area is a convenient tray to store per-
sonal articles. The tray is designed
to receive the “Safety equipment for
small vessel kit” (sold separately).
Tool Kit
Tool kit is located in storage tray. It in-
cludes tools needed to perform basic
watercraft maintenance.
10) Oil Injection Reservoir
Cap
Remove engine cover to expose oil
reservoir cap. Lock steering pole with
the holder.
WARNING
Always install steering pole holder
immediately after engine cover re-
moval to support the pole securely
while working in the engine com-
partment.
F22G01Y
1
1. Oil injection reservoir cap
To add injection oil in the reservoir, un-
screw the cap counterclockwise. Do
not overfill.
Reinstall cap and fully tighten.
WARNING
Do not overfill. Reinstall cap and
fully tighten. Oil is flammable. Al-
ways wipe off any oil spillage from
the bilge.
Unlock steering pole and secure its
holder.
Reinstall engine cover and relatch.
36
