A distinctive snap will be felt when en-
gaging the engine cover latch. Make
sure the engine cover is secure by giv-
ing it a tug. If the engine cover can-
not be latched easily, check to make
sure the fire extinguisher is positioned
properly and no object in the storage
tray is interfering with the engine cov-
er.
WARNING
To prevent pinching your fingers
in the latch when installing the
engine cover, always hold it by
putting your hand in the recess
designed for that purpose and
identified by a pictogram.

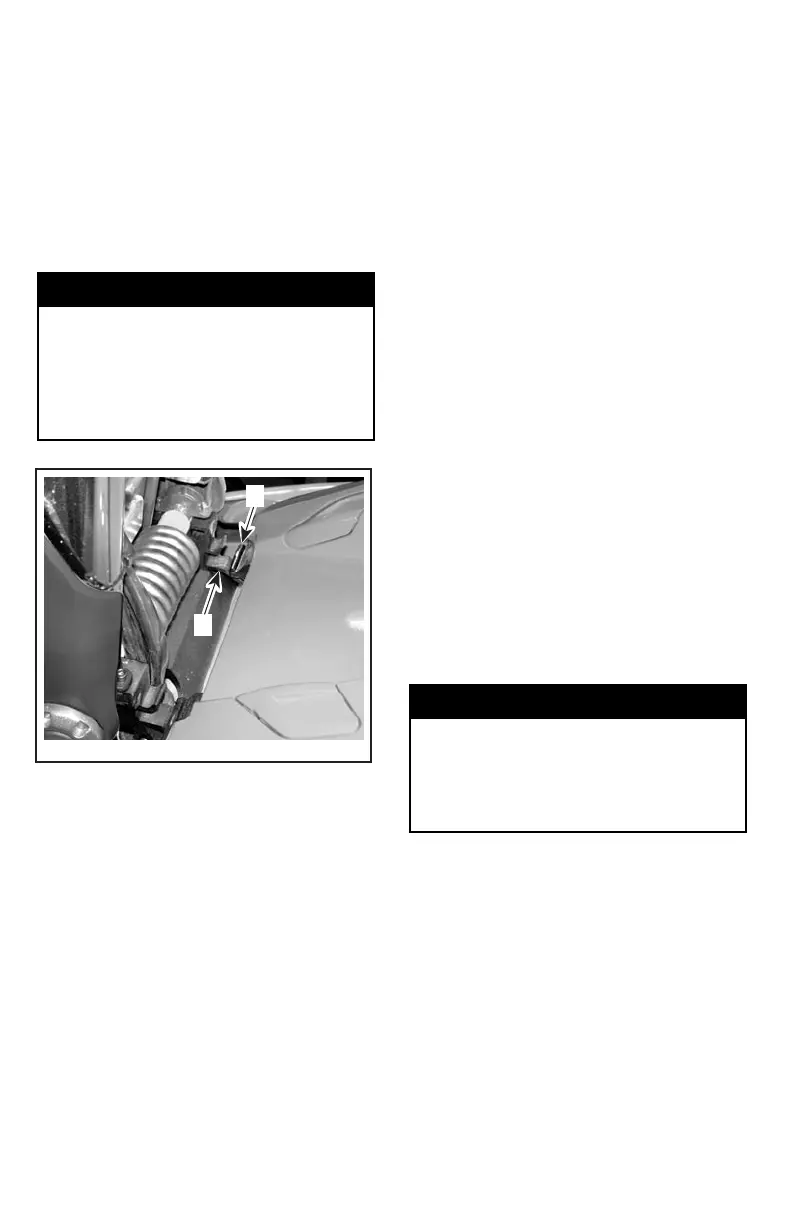

F22L0FY
2
1
1. Tab
2. C-hook
Ensure to relatch engine cover. If en-
gine cover cannot be latched, check
position of fire extinguisher and if ob-
jects on storage tray prevent engine
cover to latch.
NOTE: Verify periodically the lock pin
tightness of engine cover. Tighten if
needed and make sure engine cover
latches properly.
Fire Extinguisher Storage Area
Referring to the above illustration in
ENGINE COVER LATCH, that area in-
cludes an area to store an approved
fire extinguisher (sold separately).
Ensure to properly position fire extin-
guisher prior to installing engine cover.
CAUTION:
Ensure to properly posi-
tion fire extinguisher.
Storage Tray
Referring to the above illustration, that
area is a convenient tray to store per-
sonal articles. The tray is designed
to receive the “Safety equipment for
small vessel kit” (sold separately).
Tool K it
Tool kit is located in storage tray. It in-
cludes tools needed to perform basic
watercraft maintenance.
10) Oil Injection Reservoir
Cap
Remove engine cover to expose oil
reservoir cap. Lock steering pole with
the holder.
WARNING
Always install steering pole holder
immediately after engine cover re-
moval to support the pole securely
while working in the engine com-
partment.
36
