F22G01Y
1

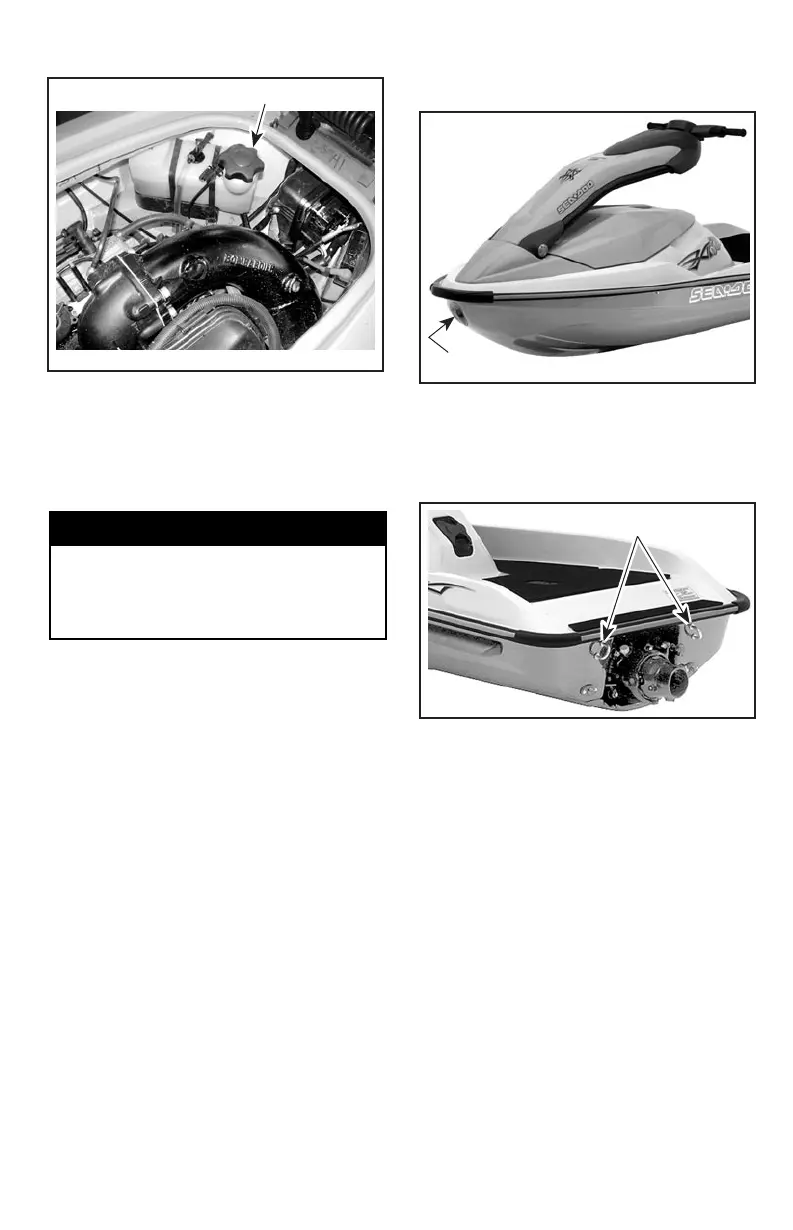

1. Oil injection reservoir cap
To add injection oil in the reservoir, un-
screw the cap counterclockwise. Do
not overfill.
Reinstall cap and fully tighten.
WARNING
Do not overfill. Reinstall cap and
fully tighten. Oil is flammable. Al-
ways wipe off any oil spillage from
the bilge.
Unlock steering pole and secure its
holder.
Reinstall engine cover and relatch.
11) Air Intake Opening
Allows air into the bilge for ventilation
purposes and engine supply. If th
eair
intake opening is kept under water,
water will get inside the bilge under
certain circumstances.
CAUTION:
If the air intake opening
is kept under water, such as when
turning constantly in tigh
tcircles,
water will get inside the bilge, which
may cause severe damage to inter-
nal parts of the engin
e.
12) Bow and Stern Eyelets
Eyelets can be used
for mooring or as
a tie-down points during trailering.
Bow Eyelet
1
F22L0HY
1. Bow eyelet
Stern Eyelet
These eyelets can be used for tie-
down purposes.
F22L0IY
1
1. Stern eyelets
13) Boarding Pads
Provide a cushioned surface for the
knees when boarding.
14) Rear Platform
Provides a large surface to position
your feet in the “vert“ configuration.
It also provides a convenient surface
for easy boarding.
_____________________
37
