F4
: 10A, Ignition coil and starter sole-
noid
F5
:3A,Injector1
F6
:3A,Injector2

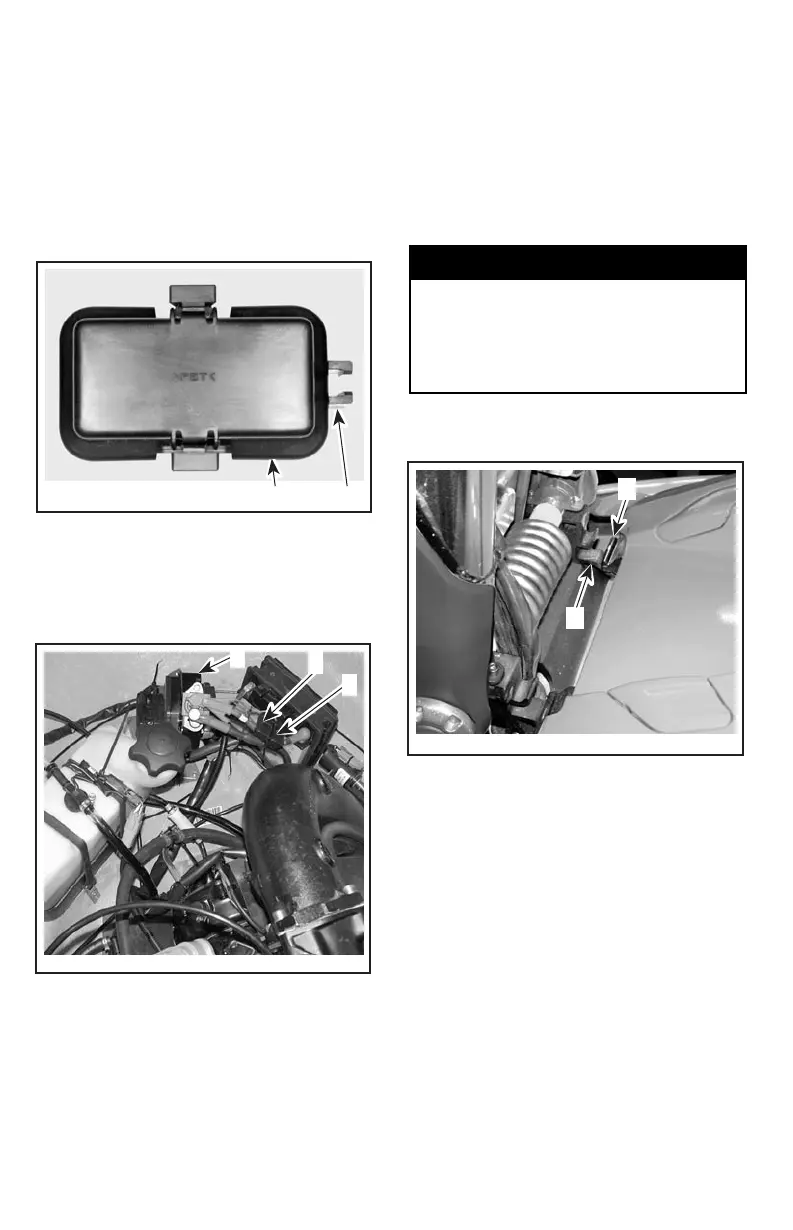

Remove fuse cover from VCM.
Use the tabs of the fuse cover to re-
move and reinstall fuses.
F06H1TY
12
1. Fuse cover
2. Fuse tabs
Other Fuses
The main fuse and the charging sys-
tem fuse are located beside the VCM.
F22H0OZ
1
2
3
1. VCM
2. Main fuse
3. Charging system fuse
General Inspection and
Cleaning
Inspection
Remove engine cover and lock the
steering pole with the holder in the up-
right position.
WARNING
Always install steering pole holder
immediately after engine cover re-
moval to support the pole securely
while working in the engine com-
partment.
Check engine cover tabs and C-hooks
as well as latch condition.
F22L0FY
2
1
1. Tab
2. C-hook
NOTE: Verify periodically that the
latch pin for the engine cover is tight
in the body. Tighten if needed and
make sure engine cover latches prop-
erly.
Check engine compartment for any
damage or leaks from the fuel/oil injec-
tion systems. Ensure all hose clamps
are secure and no hose is cracked,
kinked or shows any other damage.
82
