F22J02Y
1
2

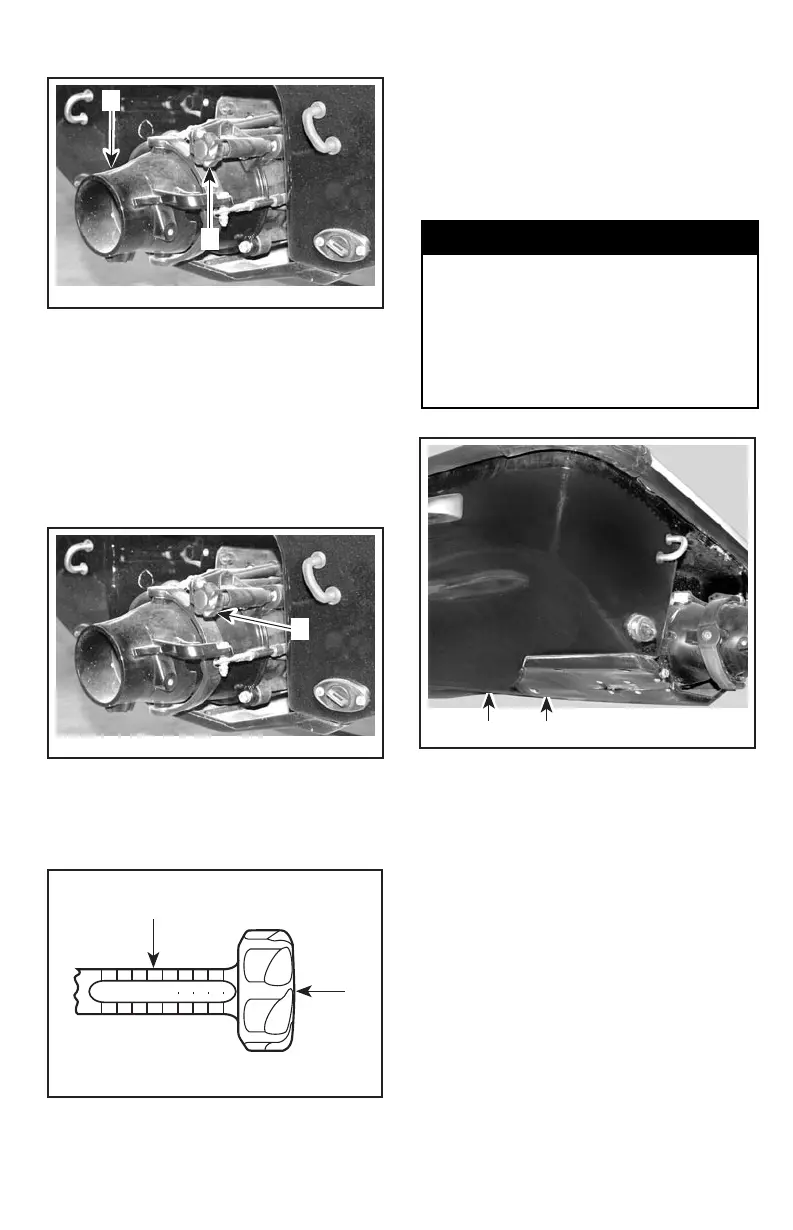

1. Jet pump nozzle
2. VTS adjuster
19) VTS Adjuster
(if so equipped)
A trim knob is used to change the jet
pump nozzle trim angle manually and
to adjust the ride to suit water condi-
tions and driver preferences. Refer to
illustration above.
F22J02Z
1
1. Trim knob
There are reference numbers to indi-
cate nozzle position and to facilitate
fine tuning.
8
6
4
2
0
2
4
6
8
F05J02Y
2
1
1. Trim knob
2. Reference numbers
20) Jet Pump Water Intake
The water is drawn in by the impeller
through this opening. The water in-
take grate minimizes the entry of for-
eign objects into the propulsion sys-
tem.
WARNING
Keep away from intake grate while
engine is on. Items such as long
hair, loose clothing or person-
al flotation device straps could
potentially become entangled in
moving parts resulting in severe
injury or drowning.
F22J03Y
1 2
1. Water intake
2. Ride plate
21) Fuses
The fuses are located in the engine
compartment. Refer to MAINTE-
NANCE for more details.
22) Battery
The battery is located in the engine
compartment. Refer to SPECIAL
PROCEDURES.
