Rotate both handles outward and pull them toward you to remove them. Remove the guide bolt in the
centeroftherefrigerationdeck(Figure22).Thedeckcannowbepulledoutfromthevendor.
Please make sure you unplug wire harnesses prior to pulling all the way out. Do not tip the
refrigeration deck more than 20° in any direction.

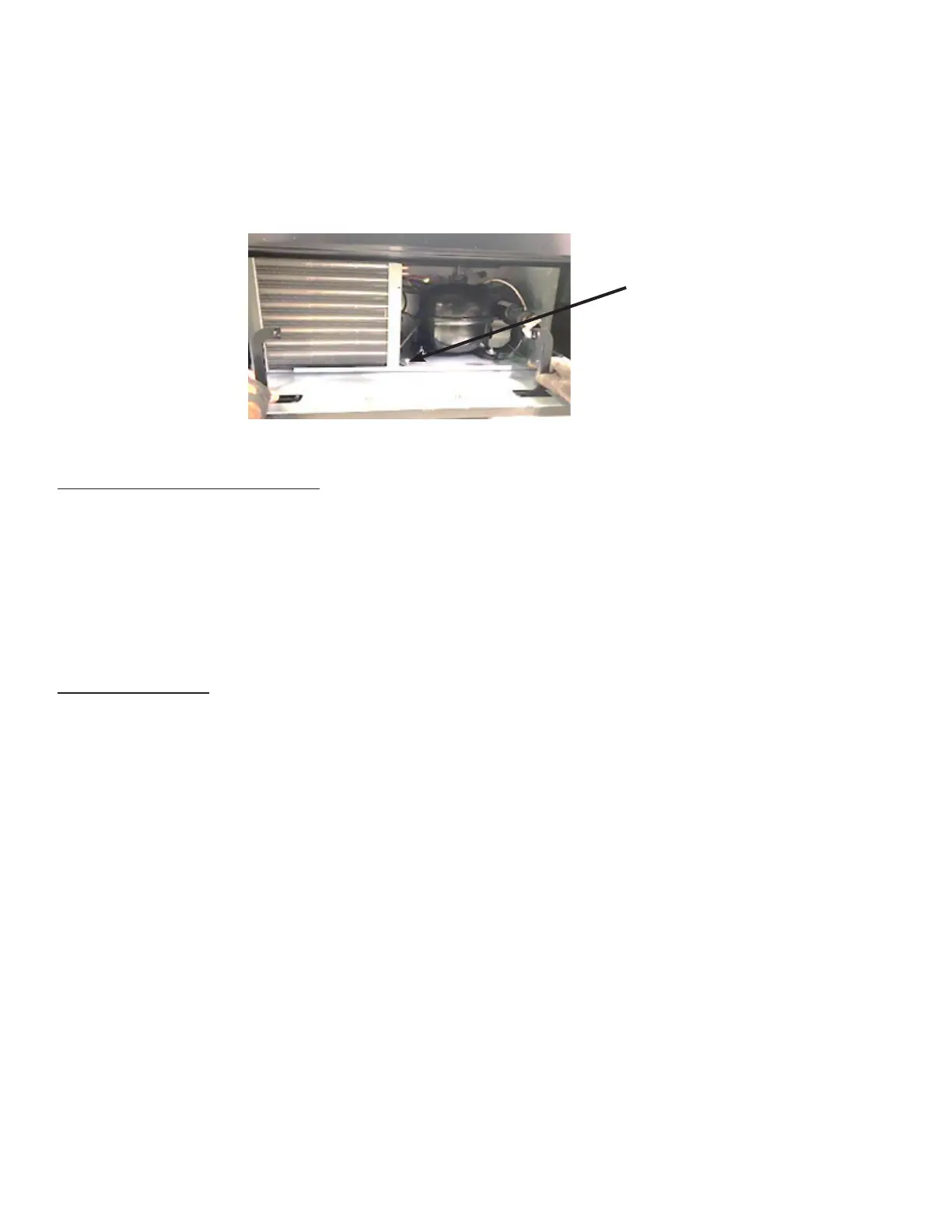

Figure 22 – Refrigeration deck removal
CLEANING THE CONDENSER
Dustanddirtrestrictgoodairowandcoolingofthecondenser,whichwillnotallowtherefrigeration
unittochillthebeveragesproperly.Brushthedirtanddustfromthecondensernseverythirty(30)
daysasroutinemaintenance.Youcanalsoblowcannedair(availableatcomputerando󰀩cesupply
stores)throughthecondenserorvacuumcleanit.Donotdamagethensofthecondenserwhile
cleaning.YoushouldalsocleanthegratelocatedontheinsideoftheFrontDoorrefrigerationvents
(seeFigure1).
Guide Bolt
REFRIGERATION
Refrigeration is the transfer of heat from one area to another. In the case of this machine we are
transferring the heat from the area containing the beverage selections to the outside of the machine
and dissipating the heat throughout the room. The more heat we are able to transfer away from the
beverages the colder they become.
Thisprocessisaccomplishedusingasealedcompressingsystemusinganozonefriendlygas
commonly known as R290 refrigerant. The system is comprised of several key mechanical
components: the condenser, the evaporator and the compressor. The condenser is located in the
lower front left of the machine and it is where the heat is dissipated from the cooling process and
blown to the outside of the machine. The evaporator is located inside the machine towards the back
of the cooling system underneath the beverage unit section being cooled. Its purpose is to absorb
the heat from the drink selections and provide the cool air needed to refrigerate the beverages. The
compressor is the heart of the cooling system and its purpose is to provide pressure and circulation of
the refrigeration gas.
