Seaga Quick Break Combo QB2000 - Exploded Views

67QB2000 9.2022 vers 1.0

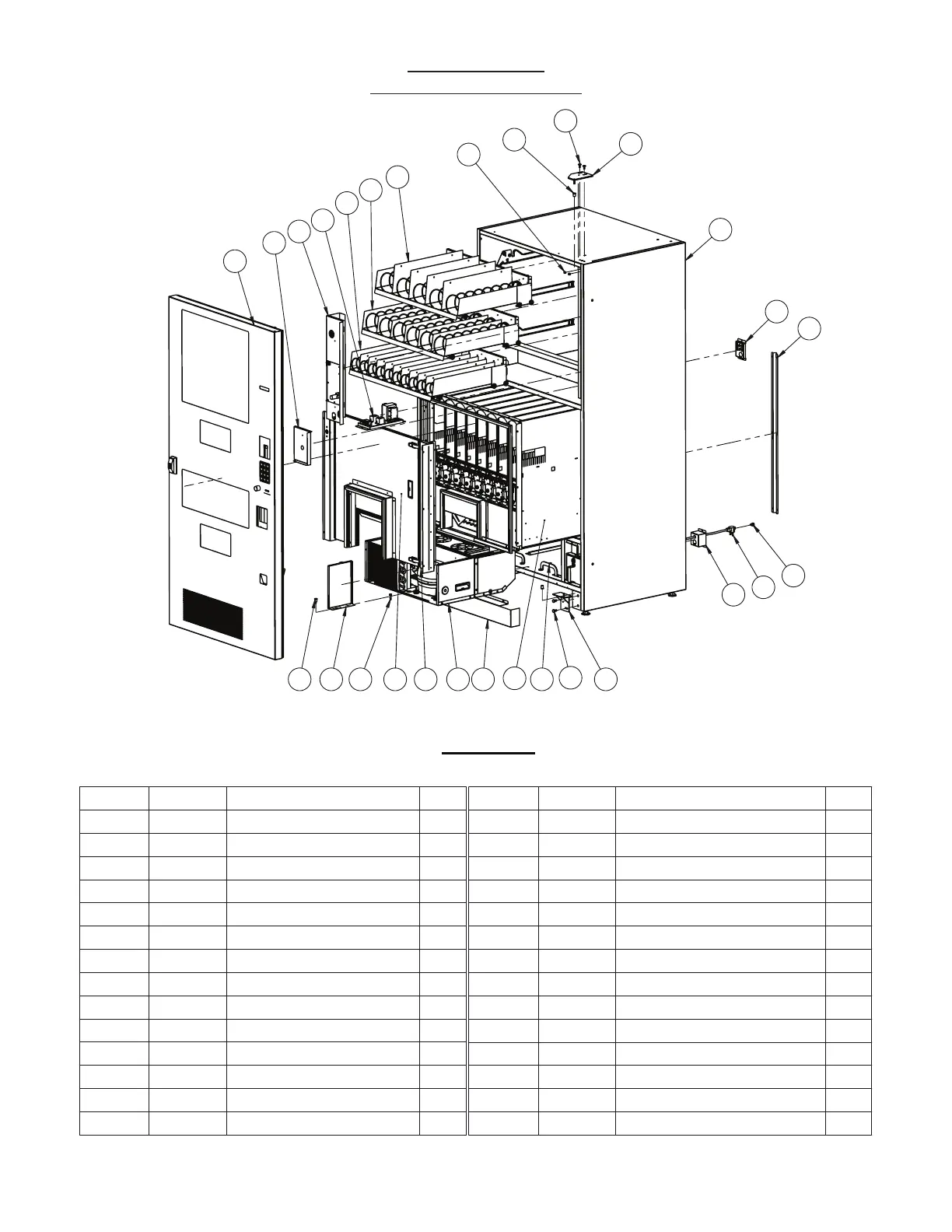

Machine Assembly QB2000
1
28
27
24
7
10
12
181514
11
16
20
8
2
3
4
6
9
13 17 21
22
23
25
26
5
19
Parts List
ITEM NO. PART NO. DESCRIPTION QTY.
1 SAI56003A CABINET 1
2 STI598
HINGE 1
3 FAI972A
BOLT 2
4 HAI952
HINGE BUSHING 2
5 FAI923
NYLOCK NUT 2
6
SAI904 5 SELECTION PRODUCT TRAY 1
7
SAI905 6 SELECTION PRODUCT TRAY 1
8
SAI903 10 SELECTION PRODUCT TRAY 1
9
SAI56018 TRANSFORMER PANEL 1
10
SAI56021 ELECTRONIC PANEL 1
11 STI56041
COVER ELECTRONICS 1
12
SAI56011 MAIN DOOR 1
13
PLI613 KNOB 1
14
UT158 AIR FLOW DIVIDER 1
ITEM NO. PART NO. DESCRIPTION QTY.
15 HAI2094 GUIDE PIN 1
16
SAI56017 DOOR DISPENSER LARGE 1
17
SAI56016 DOOR DISPENSER SMALL 1
18 REI921
REFRIGERATION DECK 1
19
UT126 SKIRT 1
20
SAI56012 DELIVERY SYSTEM 1
21 STI659
HANDLE 2
22 FAI871
BOLT 2
23
UT129 HINGE BOTTOM 1
24 STI56039
BRACKET POWER CORD 1
25
ELC348A POWER CORD 1
26
HAC799 STRAIN RELIEF 1
27 STI56040
WIRE GUIDE 1
28 VS326A
BRACKET LED MEAL VENDOR 1
