68QB2000 9.2022 vers 1.0

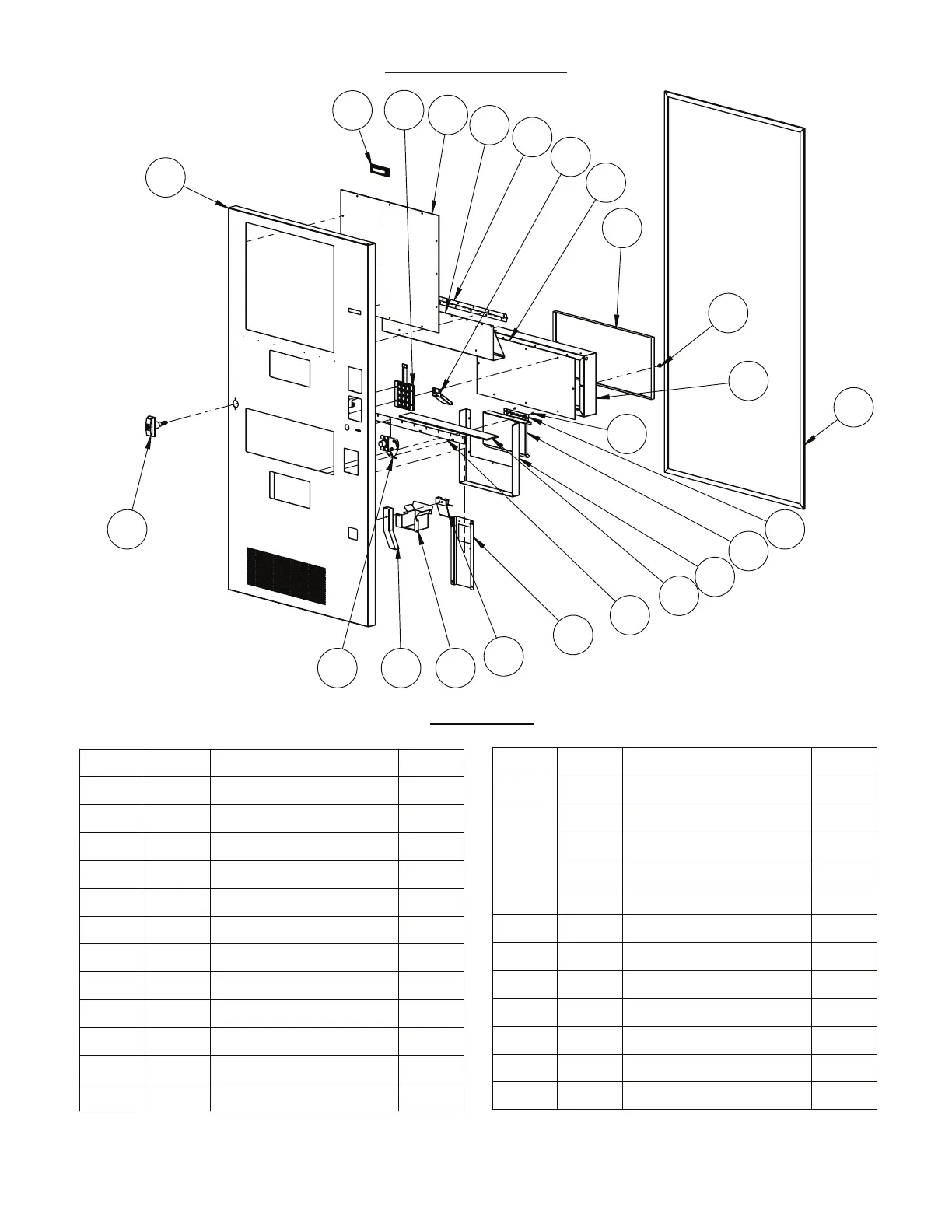

Door Assembly QB2000
1
2
4 5
6
3
19
9
8
10
11
12
13
17
22
21
23
14
16
20
18
15
7
24
Parts List
ITEM NO. PART NO. DESCRIPTION QTY.
1 SAI56006 DOOR 1
2
HAC247 T-HANDLE 1
3
SAI818 COIN RETURN 1
4
SAI56009 CHUTE COIN OVERFLOW 1
5
SAI56010 COIN CUP 1
6
SAI920 COIN RETURN FLAP 1
7 VS173
BRACKET COIN CHANGER 1
8
UT152 SELECTION LABEL HOLDER 1
9
INI239 FOAM DISPLAY RACK 1
10
UT151
COVER BEVERAGE DELIVERY
AREA
1
11
SAI56008 PUSH DOOR BEVARAGE 1
12 HAI402
HINGE 1
ITEM NO. PART NO. DESCRIPTION QTY.
13 FAI884 SCREW 53
14
PLI2035 GASKET FRAME DOOR 1
15
SAI56015 CAN DISPLAY FRAME 1
16
PLI613 KNOB 2
17 STI56030
COVER PRODUCT DISPLAY 1
18 STI56024
WINDOW CAN DISPLAY 1
19 VS120
CHUTE, COIN 1
20 HAI905
HINGE 1
21
SAI56018 PUSH DOOR SNACK 1
22
PLI101 WINDOW SNACK 1
23
SAI821 KEYPAD 1
24
ELC909 DISPLAY 1
