69QB2000 9.2022 vers 1.0

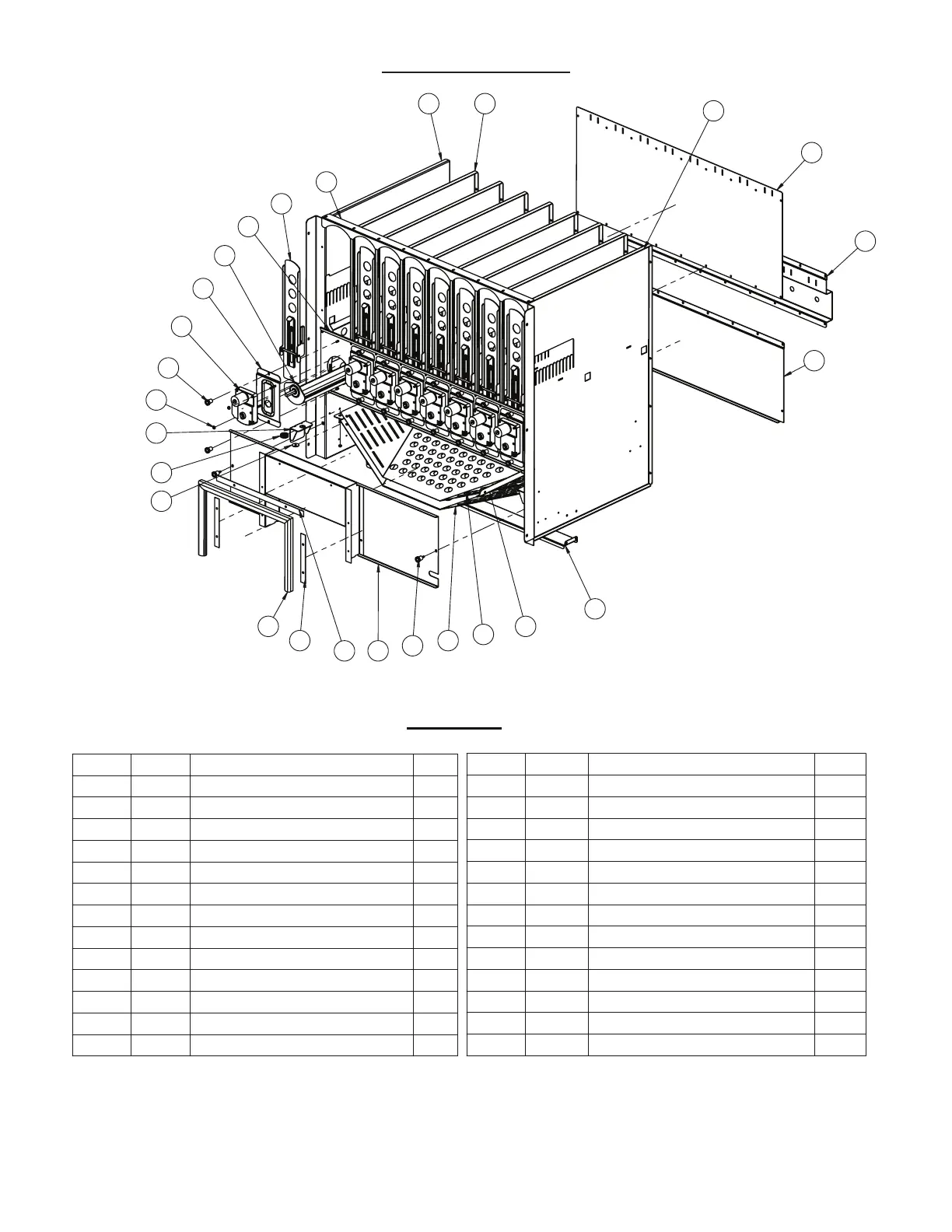

Delivery System QB2000
26
25
24
23
19
1
3 2
4
6
7
8
9
10
13
14
20
21
11
18
15
16
17
22
5
12
Parts List
ITEM NO.
PART NO.
DESCRIPTION
QTY.
1
DA300
DELIVERY PANEL OUTSIDE LH
1
2 STI97062
PARTITION
7
3
DA300A
DELIVERY PANEL OUTSIDE RH
1
4
UT135
BRACKET ARCH SUPPORT UPPER
1
5
SAI817
PRODUCT RETAINER ASSEMBLY
8
6
DA254
BRACKET AUGER MOTOR MOUNTING
1
7 HAI2045
AUGER
8
8 STI97042
BRACKET MOTOR MOUNT
8
9
ELC925 MOTOR
8
10
PLI614
KNOB NUT
16
11 FAI898
NYLOCK NUT
16
12 STI689A
BRACKET DELIVERY CHUTE MOUNTING
4
13
HA288
GROMMET
4
ITEM NO.
PART NO.
DESCRIPTION
QTY.
14 FAI854
WASHER
4
15
PLI2202
GASKET
1
16 STI59072
GASKET RETAINER SIDE
2
17 STI59075
GASKET RETAINER
1
18
SAI56013
FRONT COVER
1
19
PLI613
KNOB SCREW
2
20
UT166
CHUTE PRODUCT DELIVERY
1
21
PLI56001
COVER DELIVERY CHUTE
1
22 STI97090
SIDE DEFLECTOR
2
23 STI56025
MIDDLE SUPPORT
1
24 STI56021
BACK DELIVERY SYSTEM LOWER
1
25
DA253
BACK DELIVERY SYSTEM MIDDLE
1
26 STI56020
BACK DELIVERY SYSTEM UPPER
1
