Seaga Quick Break Combo QB2000 - Loading Product Lanes

15QB2000 9.2022 vers 1.0
Theory of Operaon of Beverage Vending
The beverage secon uses two (2) Drop Sensors (vibraon sensors) to detect the product drop. In normal
operaon, the auger will rotate counterclockwise to drop a product onto the delivery chute. Upon detecon
of the product drop by these sensors, the motor (driving the auger) will stop and the vend is considered
complete.
Note: Never use a Snack motor in the Beverage Area.
Loading Product Lanes
The Product Columns in your machine use an Auger that rotates counter-clockwise to drop the drink into the
Delivery Area.
1. Load products horizontally (laying down). Grasp Locking Tab and slide up to allow Retainer to move forward
into Load Posion.

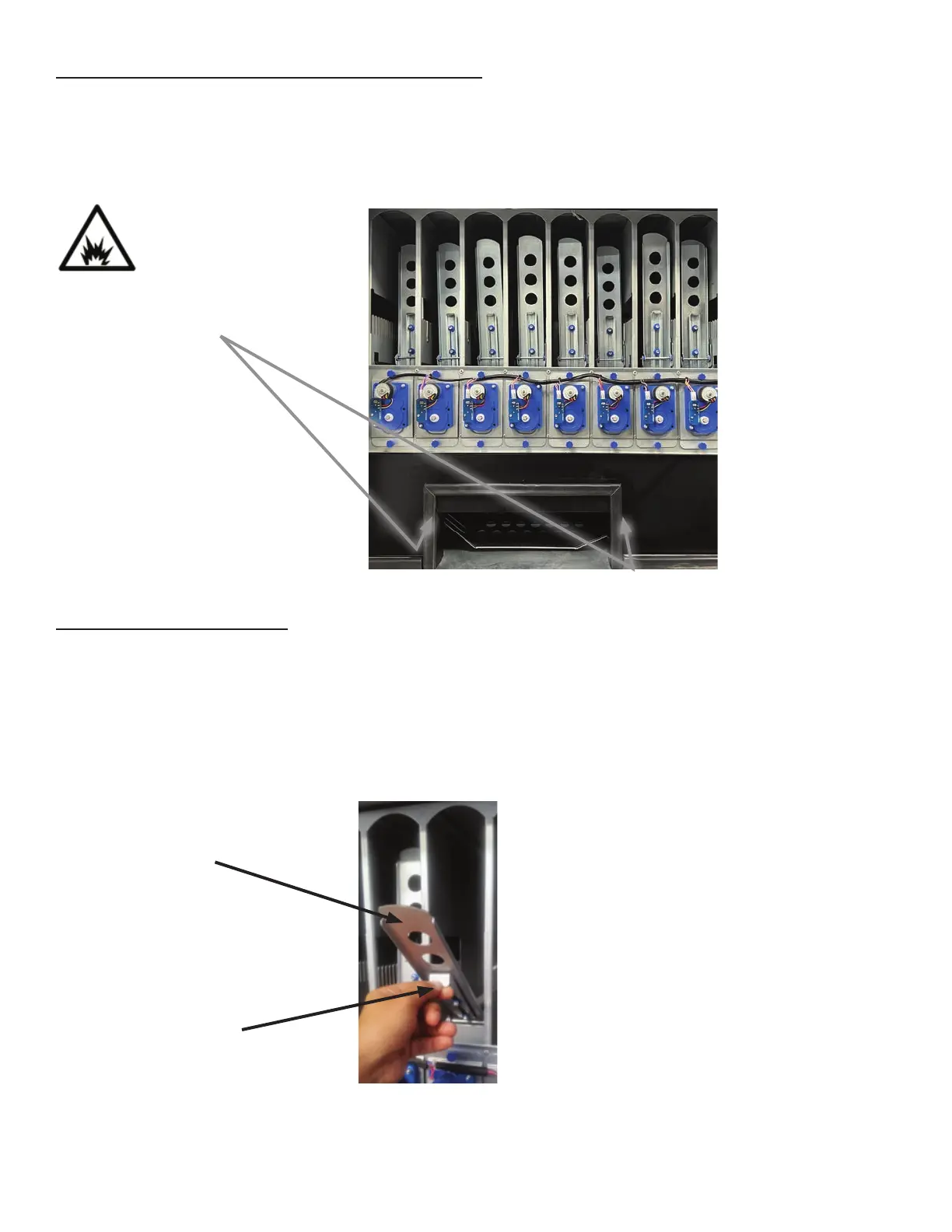

Drop Sensors
Figure 12 – Retainer
Retainer
Locking Tab
