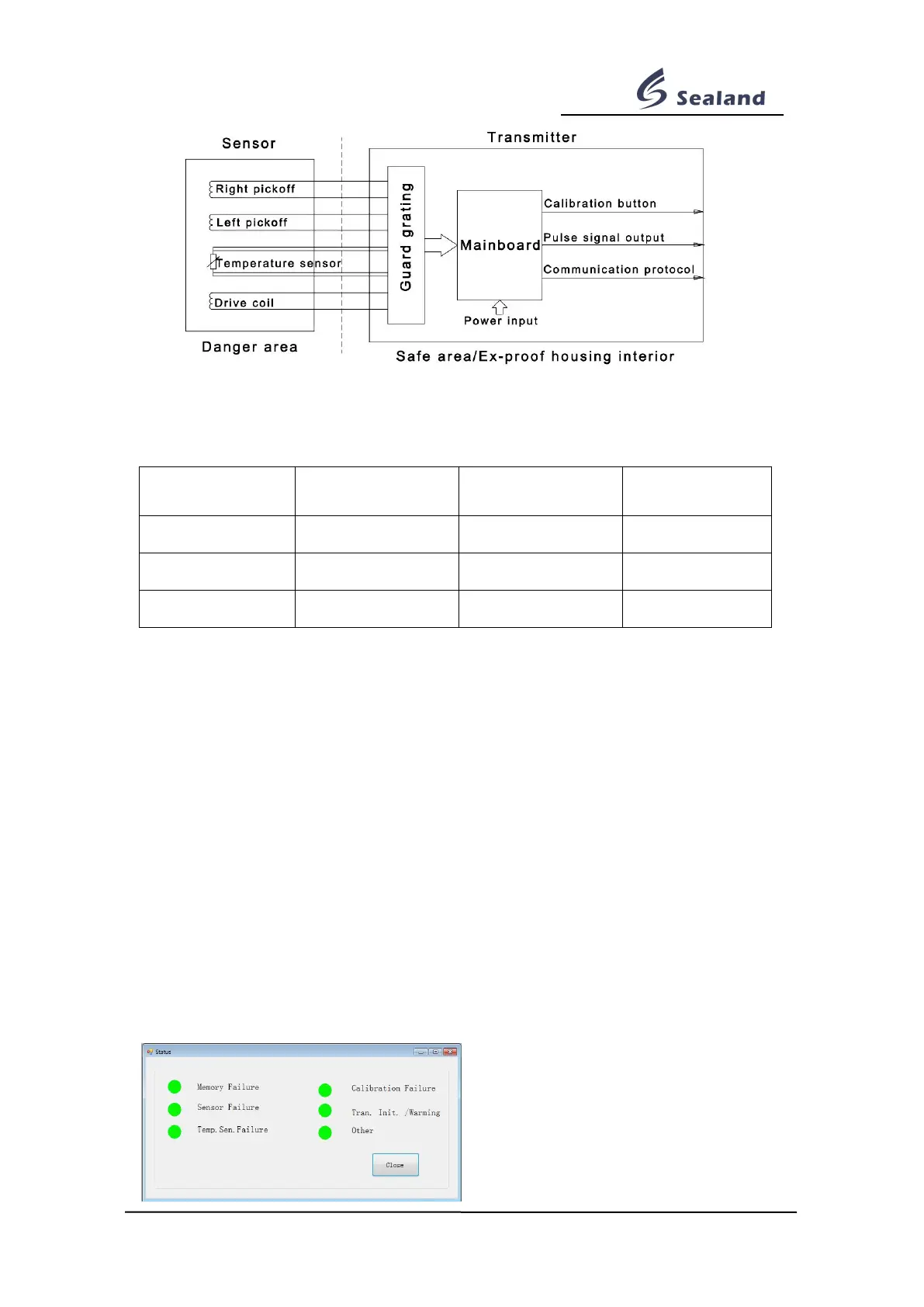

Pic. 8-1 Ex-proof system
The biggest capacitance from sensor to transmitter allowed is 0.11μF, the biggest
inductance 0.2mH;
Name
Max. output voltage
V
Max. output current
mA
Max. Output
capacitance/μF
Dirve coil
11.8
100
9.9
Temperature sensor
6.2
43
790
Pickoff
7.8
54
130
Table 8-1
● Ambient temperature: -20~+50°C;
● The meter should be well grounded during operation;
● Do not replace any component or part inside transmitter without manufacturer’s guide;
● Inner diameter of wiring cable should be φ8.5 or φ12, external diameter between φ8 &
φ8.5 or φ8.5 & φ12. Please replace wiring cable if wornout;
● Keep corrosive gas from junction box;
● Do not install or dismount under inflammable gas environment.
Chapter 9 Troubleshooting
9.1 Self-diagnosis
The software has self-diagnosis function. Please click Functions --> Status on tool bar to
callout the following interface. It shows 6 kinds of error, storage error, sensor error,
temperature sensor error, zero calibration failure, meter initialization, and others. The light is
green under smooth operation, and turns red when not.
