Chapter 4 Wiring

Please cut off the power before wiring, use circular section cable so that wiring plug can seal

better, and make sure supply voltage same as marked on nameplate.

4.1 General wiring

There are 2 optional voltages for transmitter, AC220V/DC24V. Power cable section should

be more than 0.8mm

, and length less than 300m.

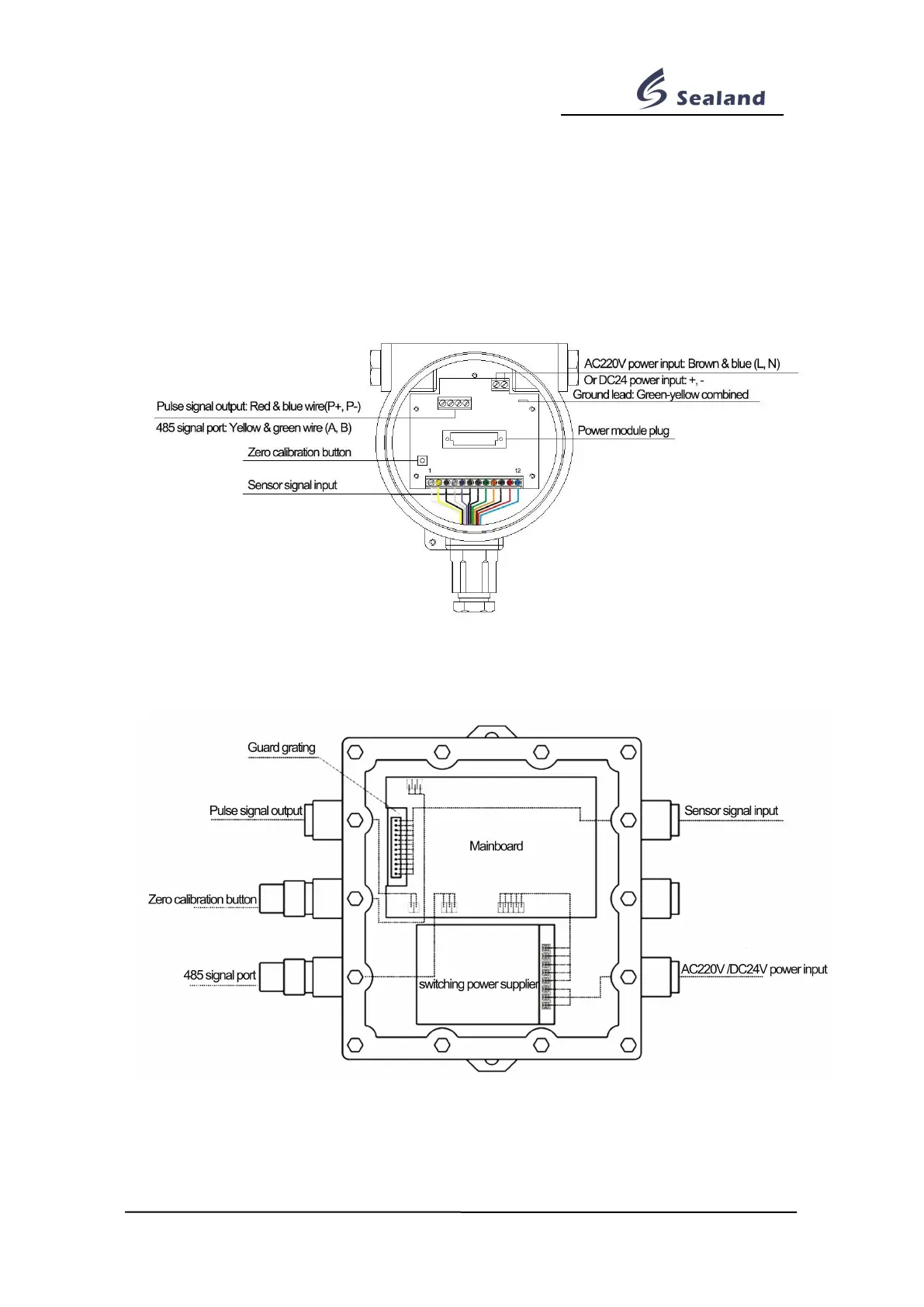

Pic. 4-1 General wiring diagram of transmitter F23X

Pic. 4-2 General wiring diagram of transmitter F210 (same wiring color as F23X)
