SeaLand Mass Flow Meter User Manual

Zhejiang Sealand Technology Co.,Ltd.
2
2.1.1 Main parameters
Item
Parameters
Accuracy grade
0.2, 0.3, 0.5
Wetted tubes
Stainless steel 316L
Pressure loss
≤0.2MPa
Housing protection
IP65
Ex-mark
Ex ibIIB/IIC T1~T6 Gb
Table 2-1 Main parameter of sensor

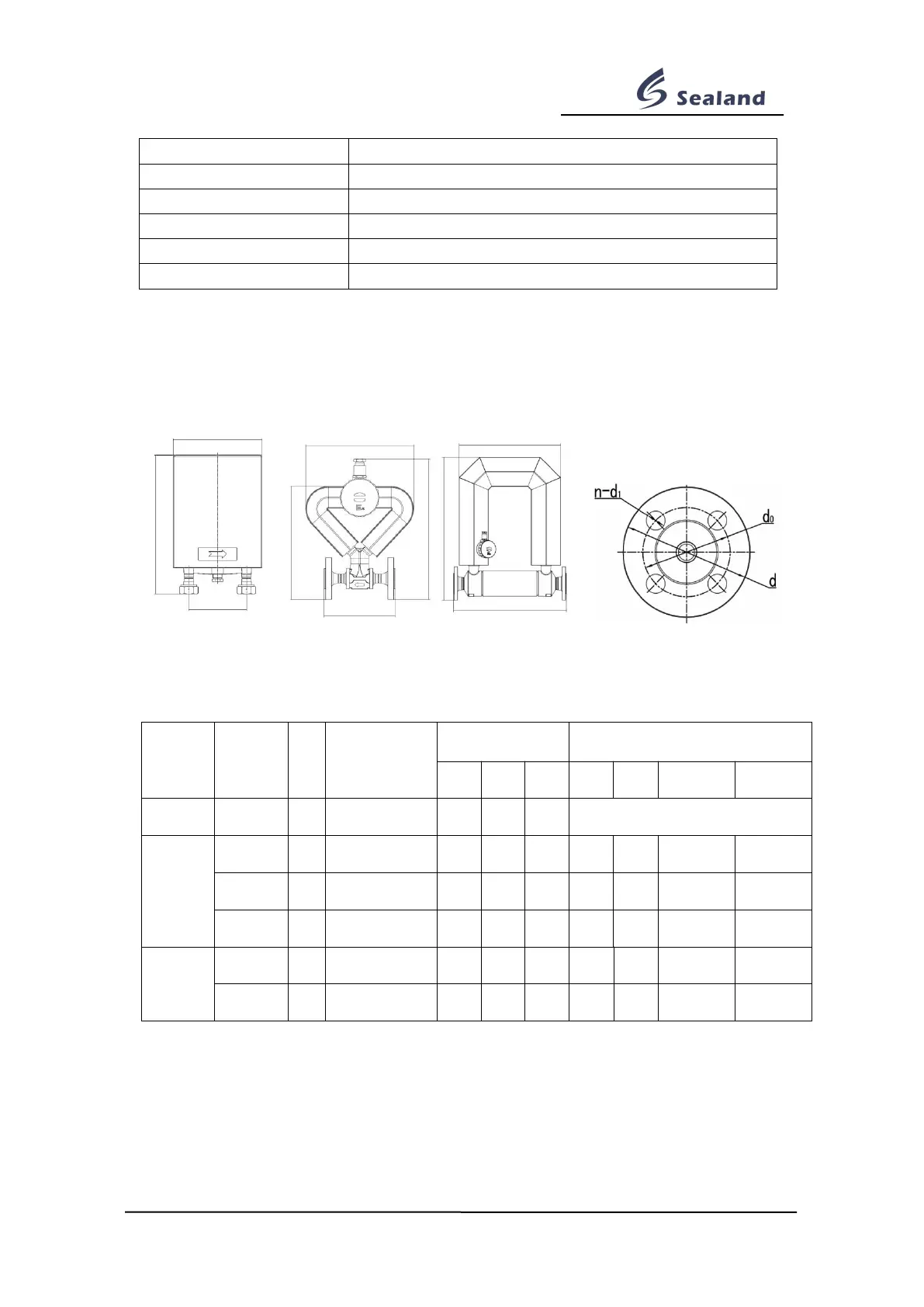

2.1.2 Dimension
There are 3 different configurations, CNG-15, Triangle and U type.
CNG-15 Triangle U Connection flange
Pic. 2-1 Configurations of sensor
Type
Name
DN
Max.flow
rate(kg/h)
Dimension
Flange (Standard DIN2635)
A
B
C
d
d
0
n-d
1
Bolt
CNG-15
CNG-15
15
3600
136
326
210
M32×1.5 nut
Triangle
CG-06
6
1080
160
255
243
95
65
4- φ 14
M12×60
CG-15
15
3000
191
361
318
95
65
4- φ 14
M12×60
CG-25
25
12000
211
503
480
115
85
4- φ 14
M12×60
U
CG-50
50
60000
556
708
501
165
125
4- φ 18
M16×60
CG-80
80
180000
830
970
501
200
160
8- φ 18
M16×60
Table 2-2 Dimension/mm
2.2 Mass flow transmitter
Mass flow transmitter is a micro-programming-centered electronic system, which supplies
thrust to sensor, transforms sensor signal into mass flow signal and others, and improves
accuracy in accordance with temperature parameter.
A
A
A
B
B
B
C
C
C
