5.2 Assembling the device
We recommend that two people assemble the scale,
as large individual parts have to be aligned and then
screwed together.
Preparing the weighing
platform
1. Place the weighing platform on a flat, stable
surface.

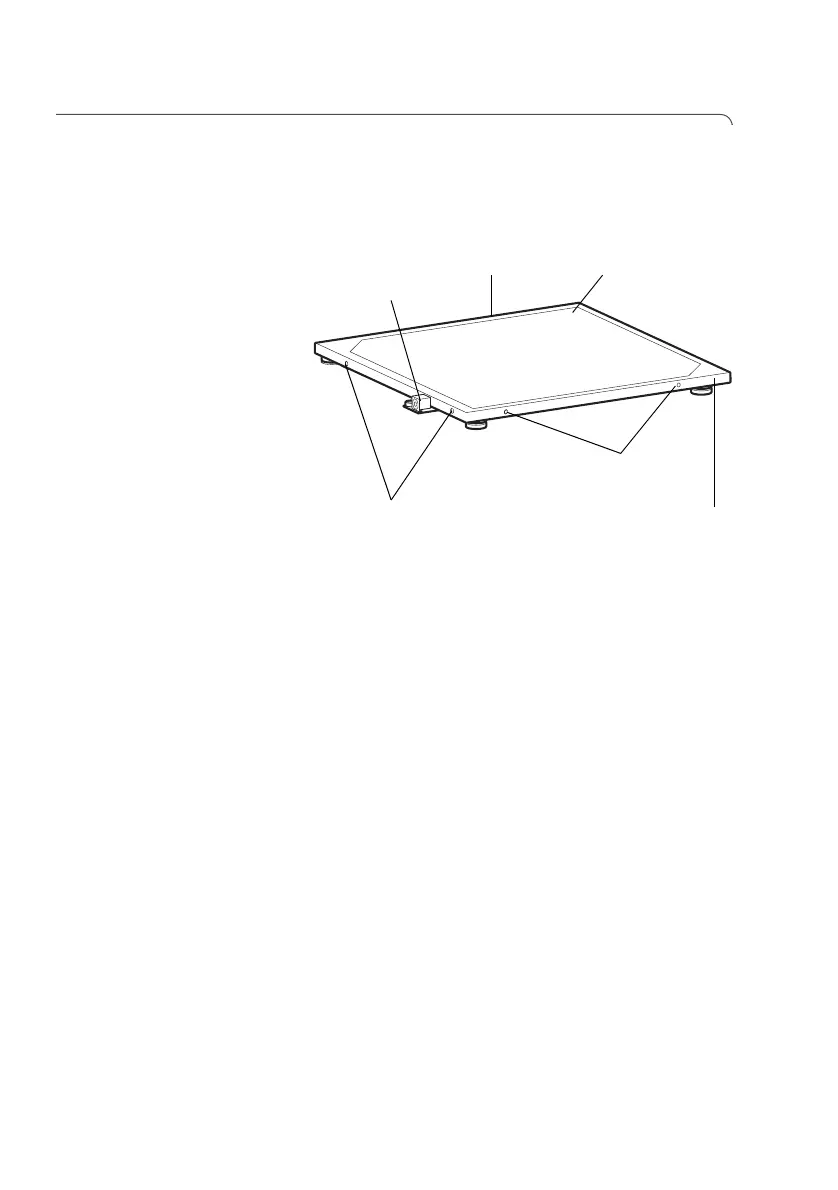

2. Align the weighing platform as shown in the
diagram above.
The weighing platform is in the correct position for
fitting the handrail supports as shown in the follow-
ing sections.
Assembly bores for rear
handrail support
Rear
Assembly bores for right-
hand handrail support
Power pack
connection
Front
Corner for access
