Fitting the rear handrail
support
You need the following connecting elements for this
assembly step:

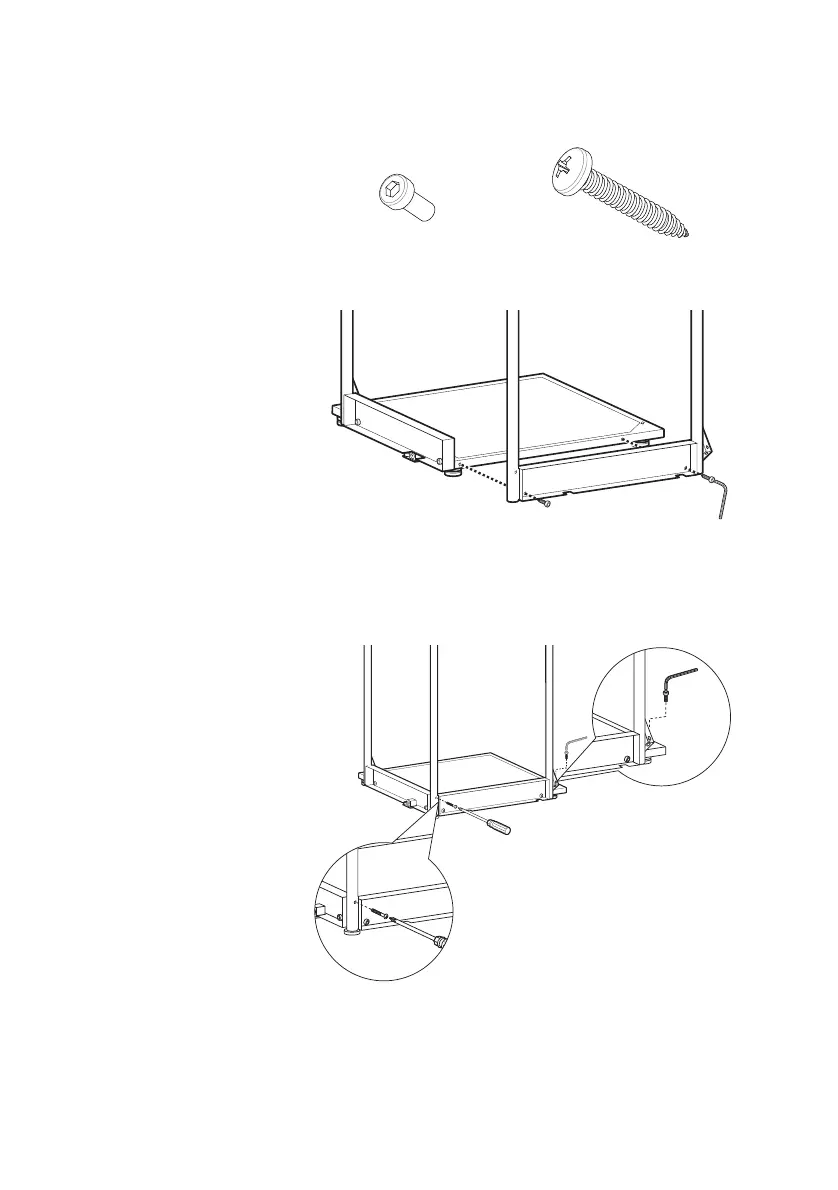

1. Hold the rear handrail support in position on the
weighing platform as shown in the diagram above.
2. Attach the rear handrail support to the weighing
platform with two hex socket head screws.
3. Attach the triangular brace to the weighing platform
with one hex socket head screw.
4. Join the two handrail supports using a pan-head
tapping screw as shown in the diagram above.
3 x hex socket head
screws, M 5 x 12
1 x pan-head tapping
screw 6.3 x 38
