Fitting the caster bar
and side bar
You need the following connecting elements for this
assembly step:

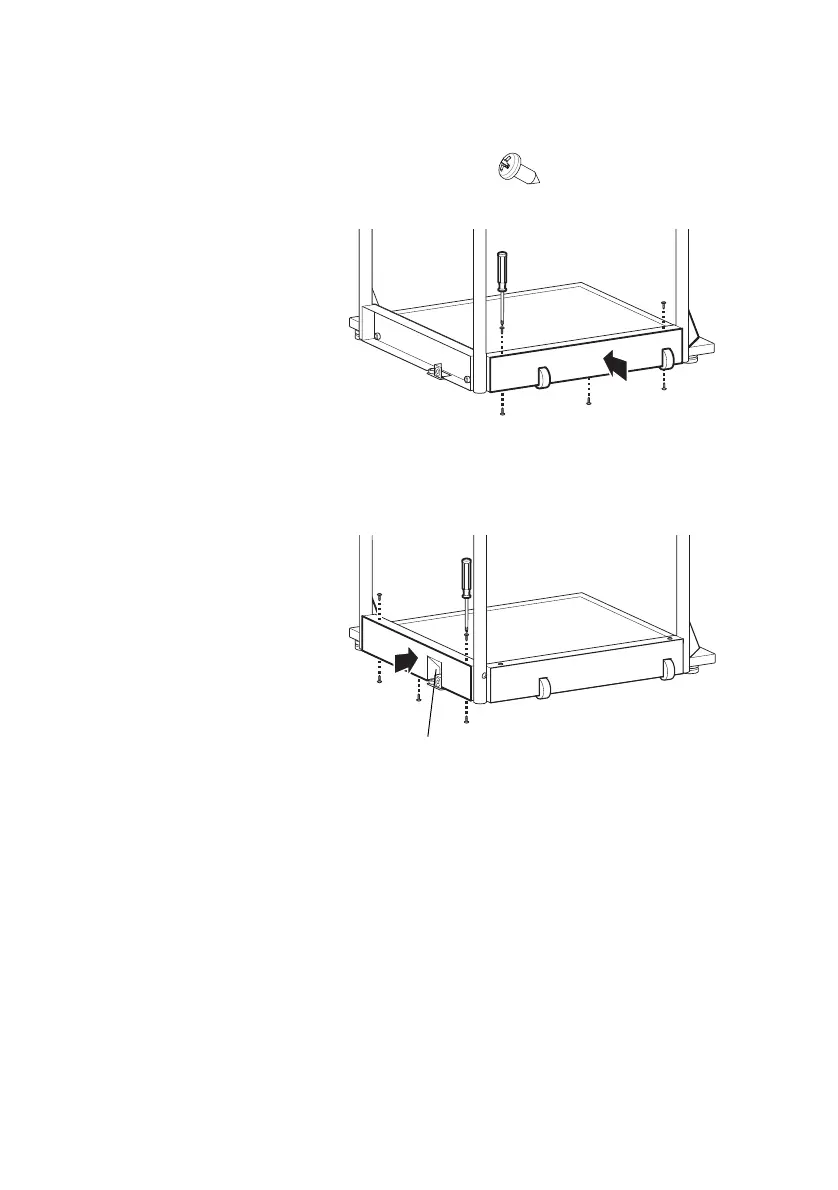

1. Place the caster bar on the rear handrail support as
shown in the diagram above.
2. Fix the caster bar to the rear handrail support with 5
pan-head tapping screws.
3. Repeat steps 1. and 2. to fit the side bar to the
right-hand handrail support.
10 x pan-head tapping screws 3.5 x 9.5
