Before you really get started… • 81
Fitting the right-hand
handrail support
You need the following connecting elements for this
assembly step:

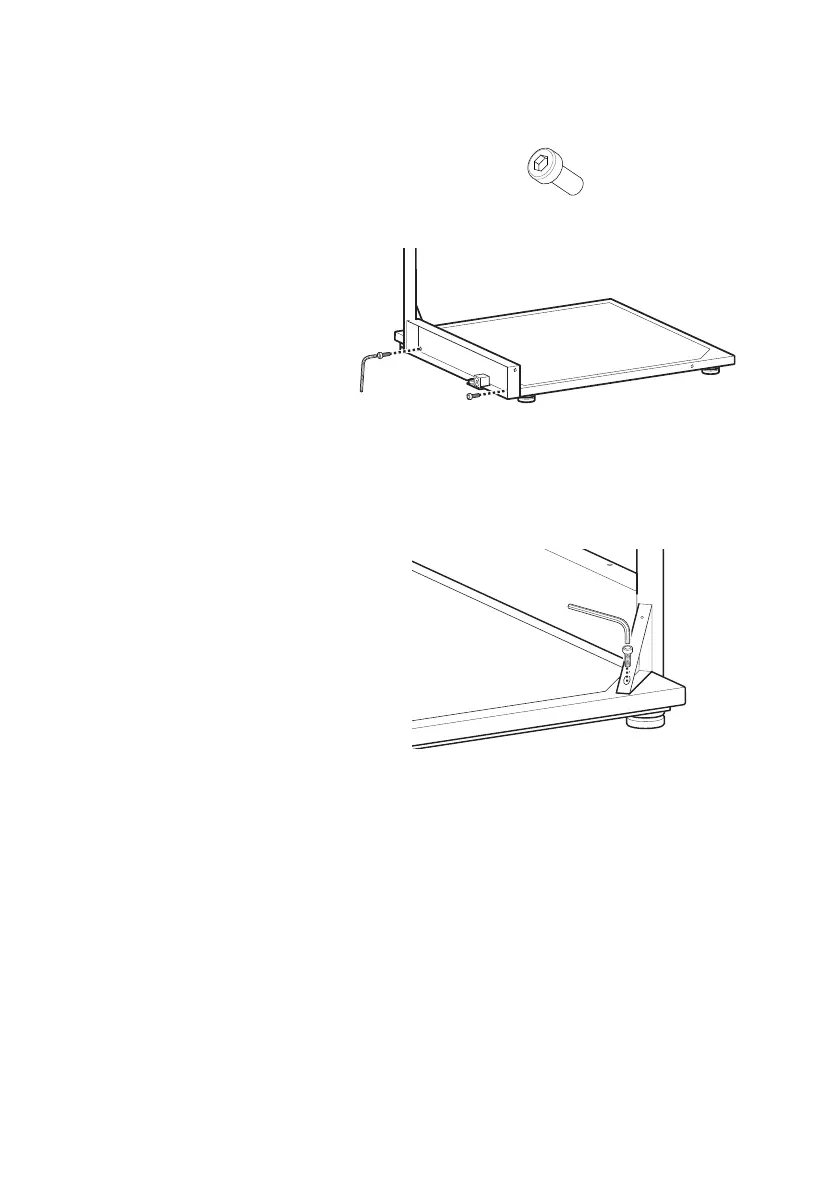

1. Hold the right-hand handrail support in position on
the weighing platform as shown in the diagram
above.
2. Attach the handrail support to the weighing
platform with two hex socket head screws.
3. Attach the triangular brace to the weighing platform
with one hex socket head screw.
3 x hex socket head screws, M 5 x 12
