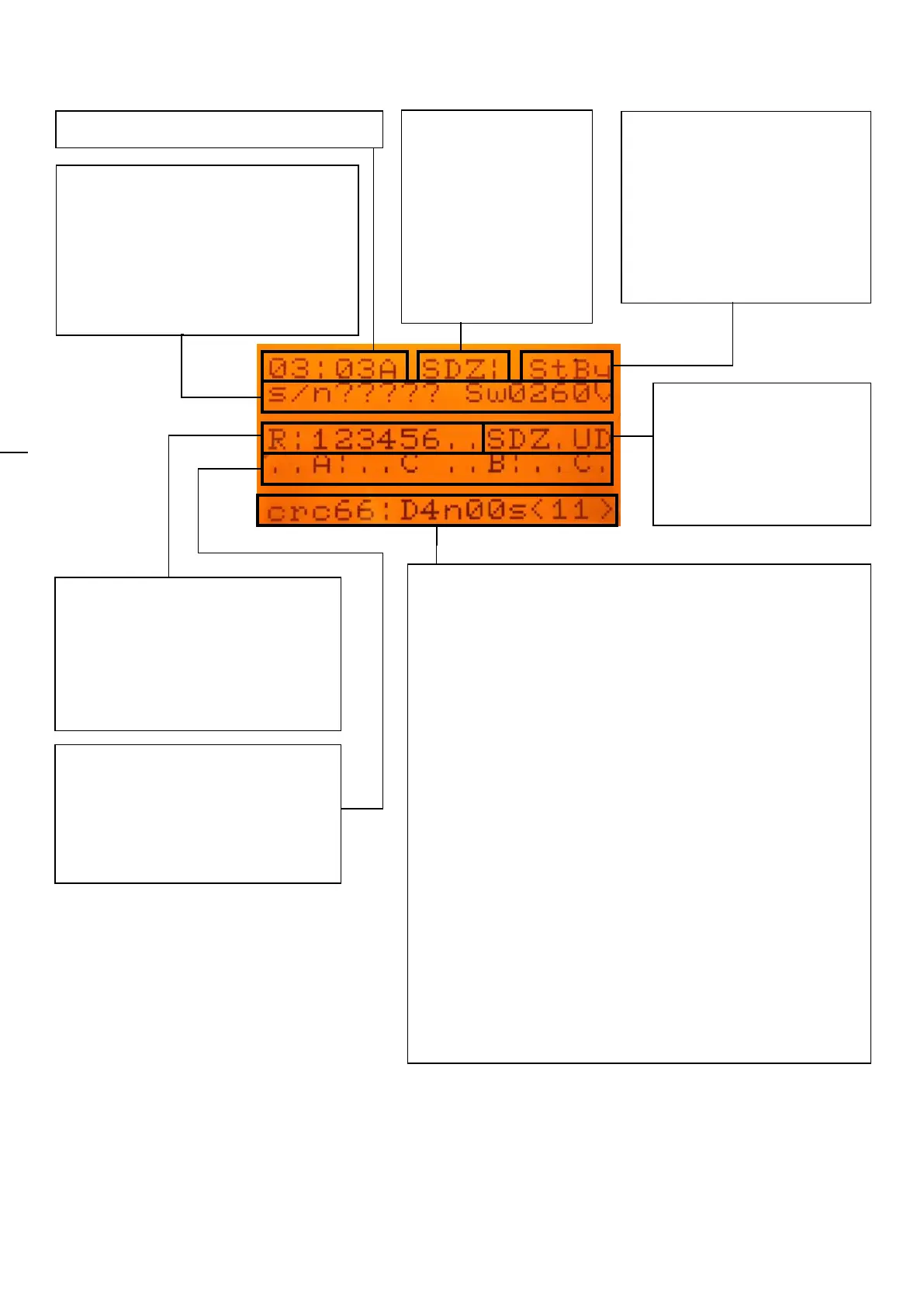

User interface display – main screen
present floor : destination floor
Sensors:
• S___: floor sensor
• _D__: floor sensor
• __Z_: floor sensor
• ___￤: centr. synchr.
• ___╹: top synchr.
• ___╻: bottom synchr.
• ___+: floor passage
Misc information in
succession:
• Elevator state (see “state
messages” at the end of the
programming manual)
• Left run time (only during the
run)
Misc information in succession:
• Serial number – SW version
• Date
• Num: number of runs
• P: position and error (only Limax)
• Error message (see „error codes“ in the
programming manual)
Safety circuit:
• 1: SUPPLY safety closed
• 2: SHAFT safety closed
• 3: SWING DOORS safety closed
• 4: LOCKS safety closed
• 5: CAR safety closed
• 6: CAR DOORS safety closed
Sensors:
• S_____: floor sensor
• _D____: floor sensor
• __Z___: floor sensor
• ____U_: top synchr.
• _____D: bottom synchr.
Door operator A/B side:
• Op_:___: opening
• Cl_:___: closing
• __:F__: safety shoe
• __:_O_: final limit switch opening
• __:__C: final limit switch closing
Additional debugging information – for internal use
Press CLEAR + < or > to change screen; screens can differ
depending on SW version; hereafter some examples by
scrolling towards left (CLEAR + <):
1. HLIB*- 0.00 e+0000 = Limax information:
a. HLI: speed command; B: Brake;
*: U(UP)/D(DOWN)/-
b. 0.00: speed [m/s]; e+0000: error
2. E = connection with automatic emergency device
3. I01 W00 RF01f01= I01: nr board starts, W: Watchdog;
RF: synchronisation; f: stops not at floor level
7. In succession: ID and time/date/board temperature
8. Tm:___s___= measured [Ohm] and defined motor
thermistor
11. 00000 40946 0018 = debugging Limax: absolute
position; limax can messages/sec
13. A00000 00000 000 = incremental Encoder: A-channel;
B-channel; difference
14. d___ s___ a___ = analog inputs: DOM; SIC_6, Analog
24V
16. Code Security/no code enabled
