Securlift Secur3 - Page 52

follows: IM_SEC3_02.01_en.docx
52/70

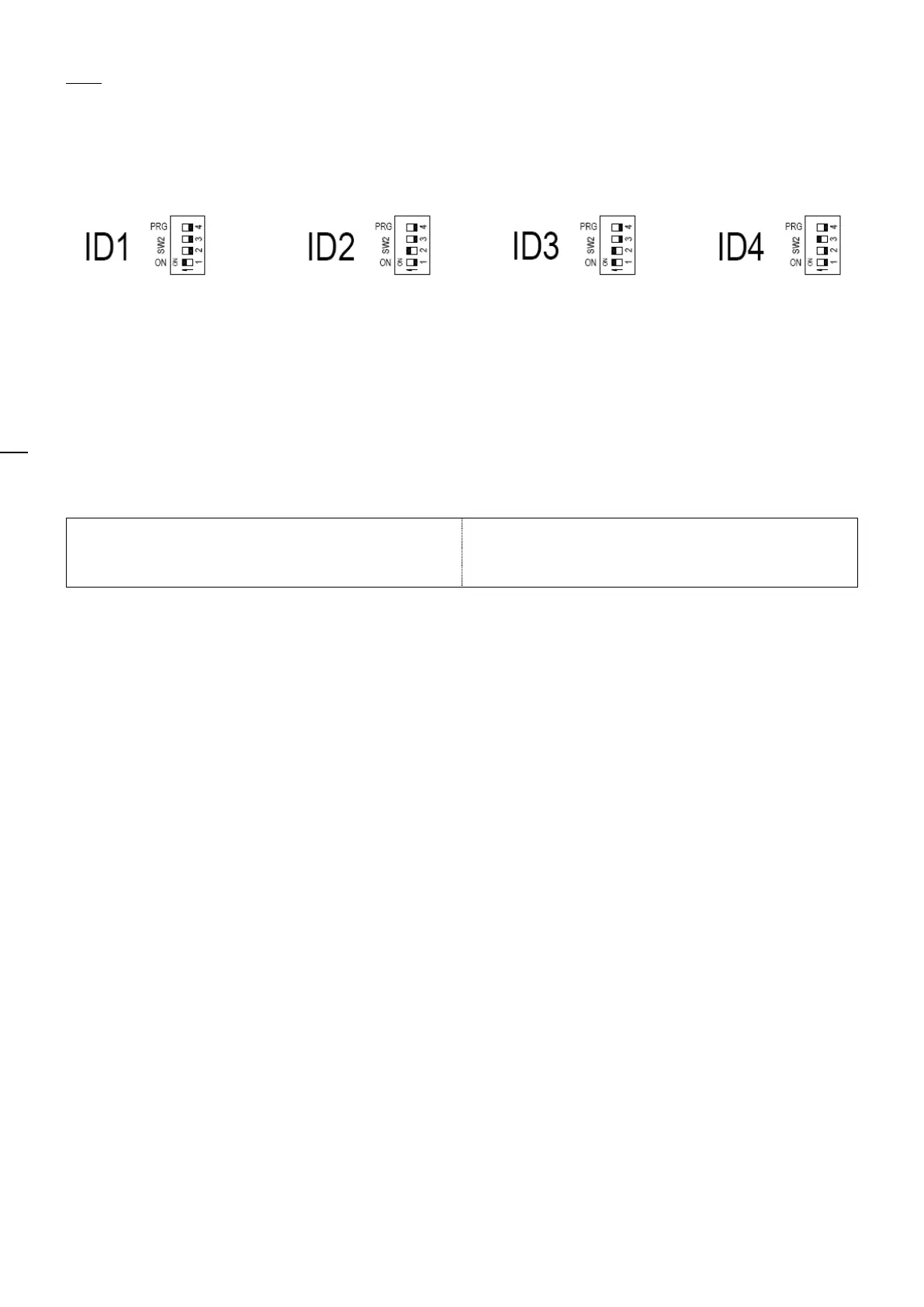

SW2
1 ID lift - bin 1
2 ID lift - bin 2
3 ID lift - bin 3
4 PRG = always OFF
Jumper
CAN = REFER to installation drawings – page 90.
LED’s
In the following tables all LED symbols are shown with power ON, with car parked at bottom floor, after
reset drive has been accomplished.
 = lit
 = off
 = blinking
 =  Ouputs overload
OK =  outputs OK
RX = 
AL =  serial communication alarm
+5V = 
Connectors
• CAN UP – CAN DN = serial connection to controller and/or to other floor nodes
• CPI = car position indicator interface board
• PRG = software downloading
• UPB – DNB = connection to landing call buttons
• PKH = option inputs
• OUT = option outputs
• HLL = hall lanterns and gong output
