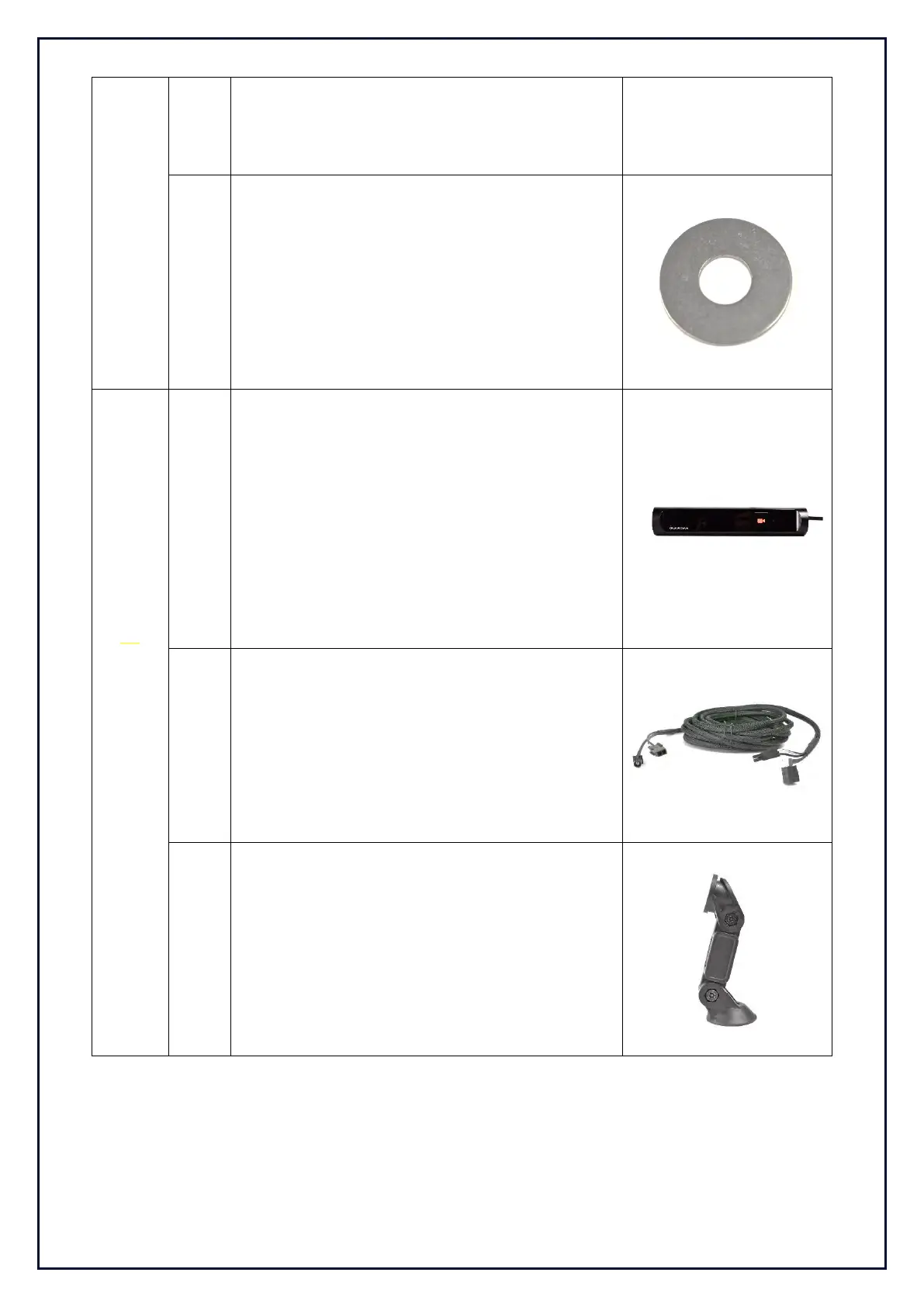

Guardian Field Support Manual
Adjustment: Must be squashed flat to be tight,
and to be mounted on the opposite side of the
Mounting Pan
Function: To eliminate loosening from vibration
4
Fastener - Washer:
Connection: To fasten Mounting Pan to the
vehicle
Size: M6 OD 20 SS Flat Washer
Adjustment: To be mounted on the opposite
side of the Mounting Pan
Function: Provide a wider surface area for a
stronger hold
In-Cab Sensor (ICS)
1
In-Cab Sensor (ICS) Module Hardware:
Connection: To the ICS Cable
Size: 200mm x 60mm x 38mm, cable 1.5m
Adjustment: Must be completely visible to the
drivers face in normal driving
Function: This is the In-Cab Sensor, Audio and
IR Illumination of the system that alerts and
detects fatigue and distraction for the driver
Sensor viewing angle: H47°xV36°
1
ICS Cable
Connection: To the ICS Module and the
Controller Unit
Size: Cable 3.5m + 1.5m ICS Module
Adjustment: N/A
Function: To provide quick connect to the
sensors for installation and replacement
1
Mounting Arm Assembly:
Connection: Connects between the mount and
the ICS module
Size: 145mm ICS lift height
Adjustment: Allows adjustment of 4 points using
your T20 driver (Yaw, Roll, Pitch, Height)
Function: Provides position of the ICS to face to
driver depending on dashboard
