Guardian Field Support Manual

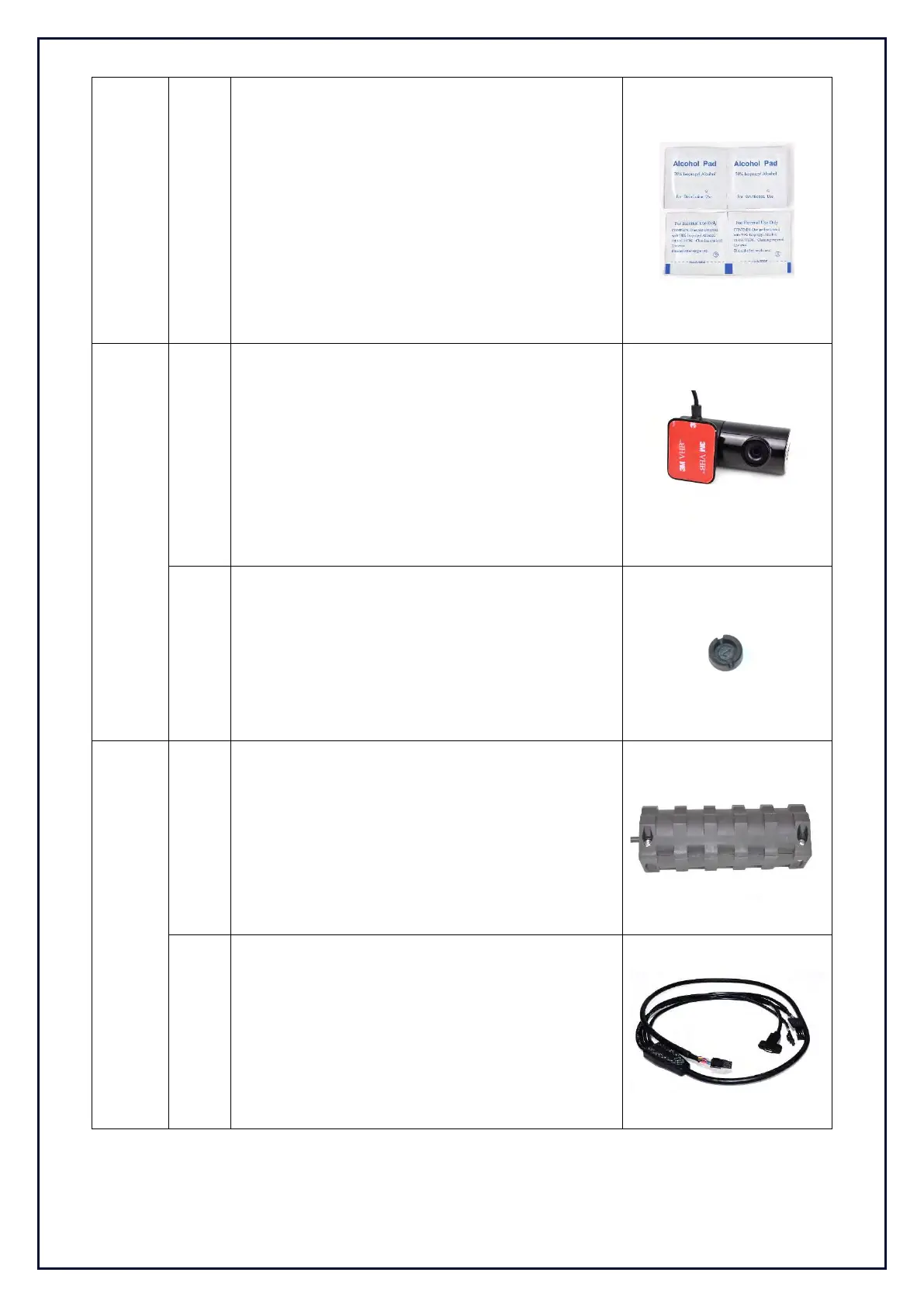

Alcohol wipe:
Connection: For prepping surface before
adhesion.
Size: N/A
Adjustment: After area is cleaned wait 1 minute
for evaporation of alcohol.
Function: For adhesive mounts to clean off dust
or grease (ICS Adhesive mount, FFC mount,
GPS Antenna, 3/4G Antenna)
Forward Facing Camera (FFC)
Forward Facing Camera (FFC) Hardware:
Connection: To the Controller Unit
Size: 72 x 41 x 40 mm, cable 7m
Adjustment: 1.5mm Allen key for pitch control
(supplied by installer)
Function: To provide footage of what the drivers
sees ahead when an event is triggered
Sensor viewing angle: H114°xV61°
Forward Facing Camera (FFC) Tamper Cap:
Connection: To the FFC adjustment screw
Size: 6.1mm Diameter
Adjustment: Clips in
Function: To provide an anti-tamper solution to
the FFC
Vibration Motor Hardware:
Connection: To the MFC
Size: 137mm x 55mm, Cables 4m + MFC 1m
Adjustment: 2 of the 5 slots can be used when
using the hose clamps for securing
Function: Alerts the driver with Vibration when
the system detects an event
Multi-Function Cable (MFC):
Connection: To the Controller Unit
Size: Cable 1m
Adjustment: Plugs using clipping connectors
Function: Provides connection for CCDC, Micro
USB OTG, Vibration Motor, and other FMS
integration
