Guardian Field Support Manual

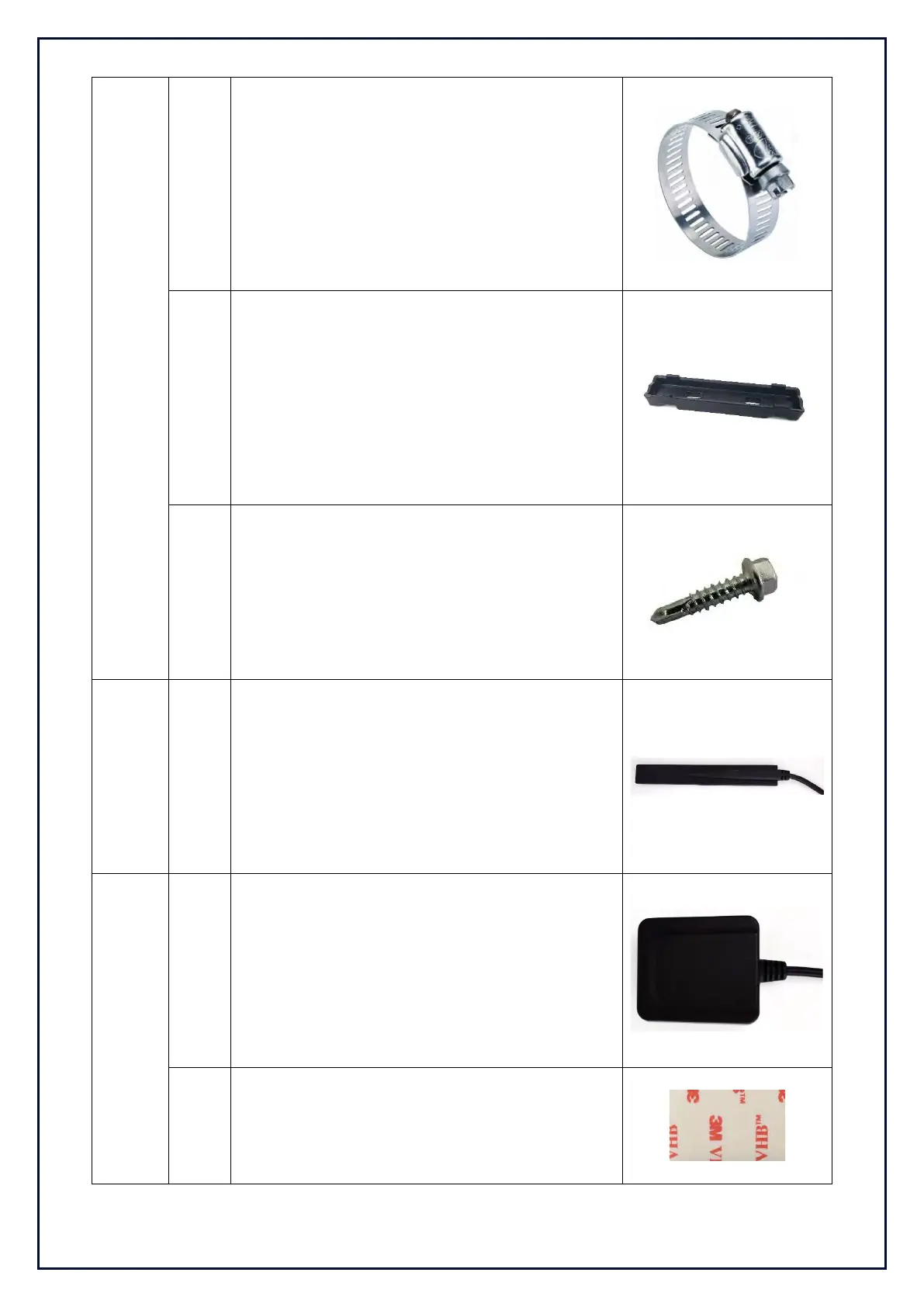

Hose Clamp Hardware:
Connection: To the Vibration Motor / Mounting
Plate
Size: 320mm Hex Head 8mm
Adjustment: Tightening up the hex head will
give a stronger clamping connection
Function: To clamp the vibration motor to the
driver’s seat without the use of screws
Vibration Plate Hardware:
Connection: To the Vibration Motor
Size: 135mm x 28mm
Adjustment: Mounting holes are compatible with
Generation 1 vibration motor holes
Function: This mounting plate is designed to
self-tap into the driver’s seat if clamping is
unavailable
Fastener – Tek Screw:
Connection:
Size: 30mm Hex Head 8mm
Adjustment: Self tapping metal screws
Function: to be used with the Vibration Plate
Hardware
3/4G Antenna Hardware:
Connection: To the Controller Unit
Size: 145mm x 19mm, cable 4m
Adjustment: Clean surface with Alcohol wipes
before, uses adhesive VHB Tape
Function: To provide the Controller unit ample
3/4G communication
GPS Antenna Hardware:
Connection: To the Controller Unit
Size: 45mm x 40mm, cable 4m
Adjustment: must face to the sky, metal cannot
block sight to the sky
Function: To provide the Controller unit ample
GPS/GLONASS communication
Double sided VHB tape
Connection: to the GPS for affixing to the
vehicle
Size: 20x33mm
