Guardian Field Support Manual
Adjustment: Clean surface with Alcohol wipes
before
Function: To affix GPS antenna to the vehicle

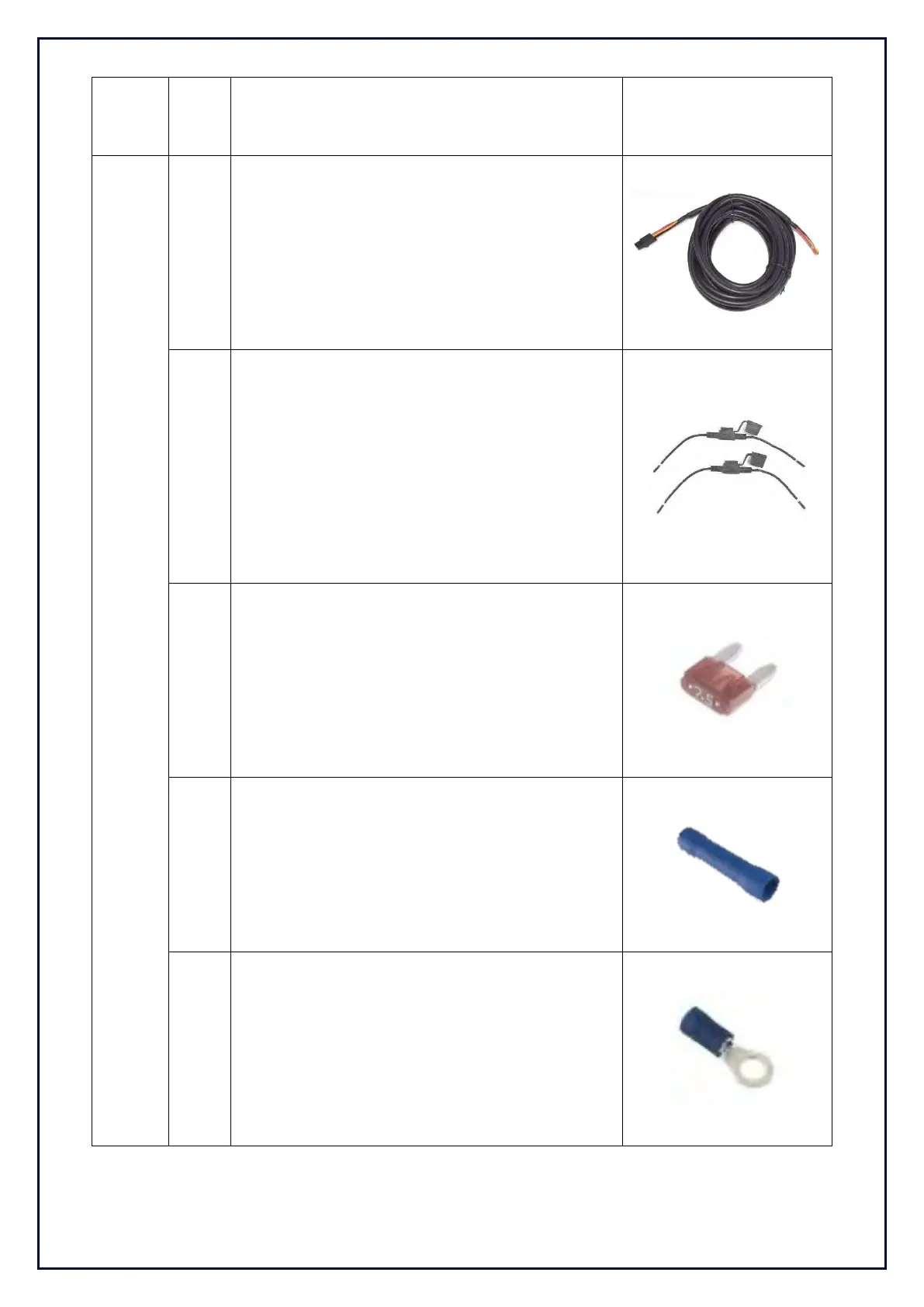

Power Cable Hardware:
Connection: To the Controller Unit and to the
In-line Fuse Holders
Size: 5m
Adjustment: Can be shortened as required
Function: 3 core cable to provide battery,
ignition and ground to the Controller Unit
In-line Fuse Holder:
Connection: To the open-ended side of the
Power Cable to be used with Crimps and Joiners
on the Battery and Ignition wires as close to the
fuse box as possible
Size: Mini Blade Fuses
Adjustment: N/A
Function: Provides disconnection of electrical
energy if cabling is shorted
7.5A Fuse – Mini Blade
Connection: To be used with the In-line Fuse
Holders
Size: Mini Blade 7.5Amp
Adjustment: Can be replaced if blown
Function: To protect from short circuits and
electrical fires
Wire Joiner Terminal:
Connection: Connects a cut wire together
Size: Blue
Adjustment: Automotive crimps must be used to
crimp terminal
Function: For power connection
Crimp Terminal:
Connection: Connects a cut wire to a threaded
bolt or screw
Size: Blue Ring 4mm
Adjustment: Automotive crimps must be used to
crimp terminal
Function: For power connection
