Guardian Field Support Manual – Section 2
44
The hose clamps must be used to mount the
Vibration Motor to an appropriate (strong)
bar on the seat. Do not mount the Vibration
motor to any flexible bars.

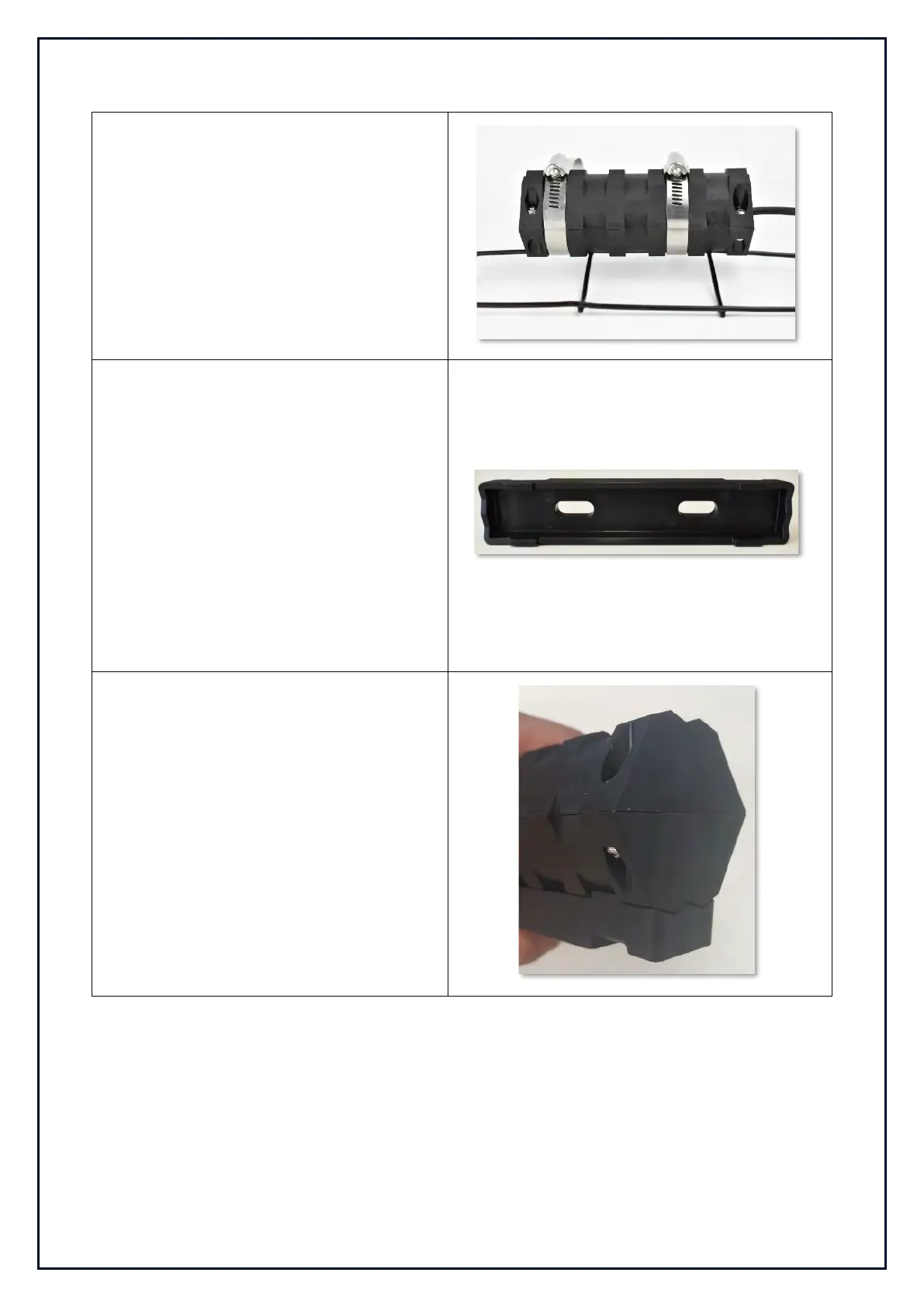

You can use the 2 hose clamps in any of the
5 slots on the vibration motor (as per the
image)
Vibration Motor Plate:
Mounting to the bar is the preferred option;
however, there is a plate that allows you to
screw into a surface if required. You will
need to screw 2 x Tek screws into an
appropriate location (noting the ‘no-go’
mounting areas).
Do not drill the Vibration Motor to the seat or
the frame as this may damage the structural
integrity of the seat or interfere with airbags
or other electrics within the seat.
When the Screw Mount has been fixed into
position, you can fix the Vibration Motor to
mount using the provided hose clamps.
You will need to rotate the Vibration Motor
so that the bar mount position sits on the
screw mount (as per the image).
