RESET
Password:
1
2
3
Enter Password
1
* * * *

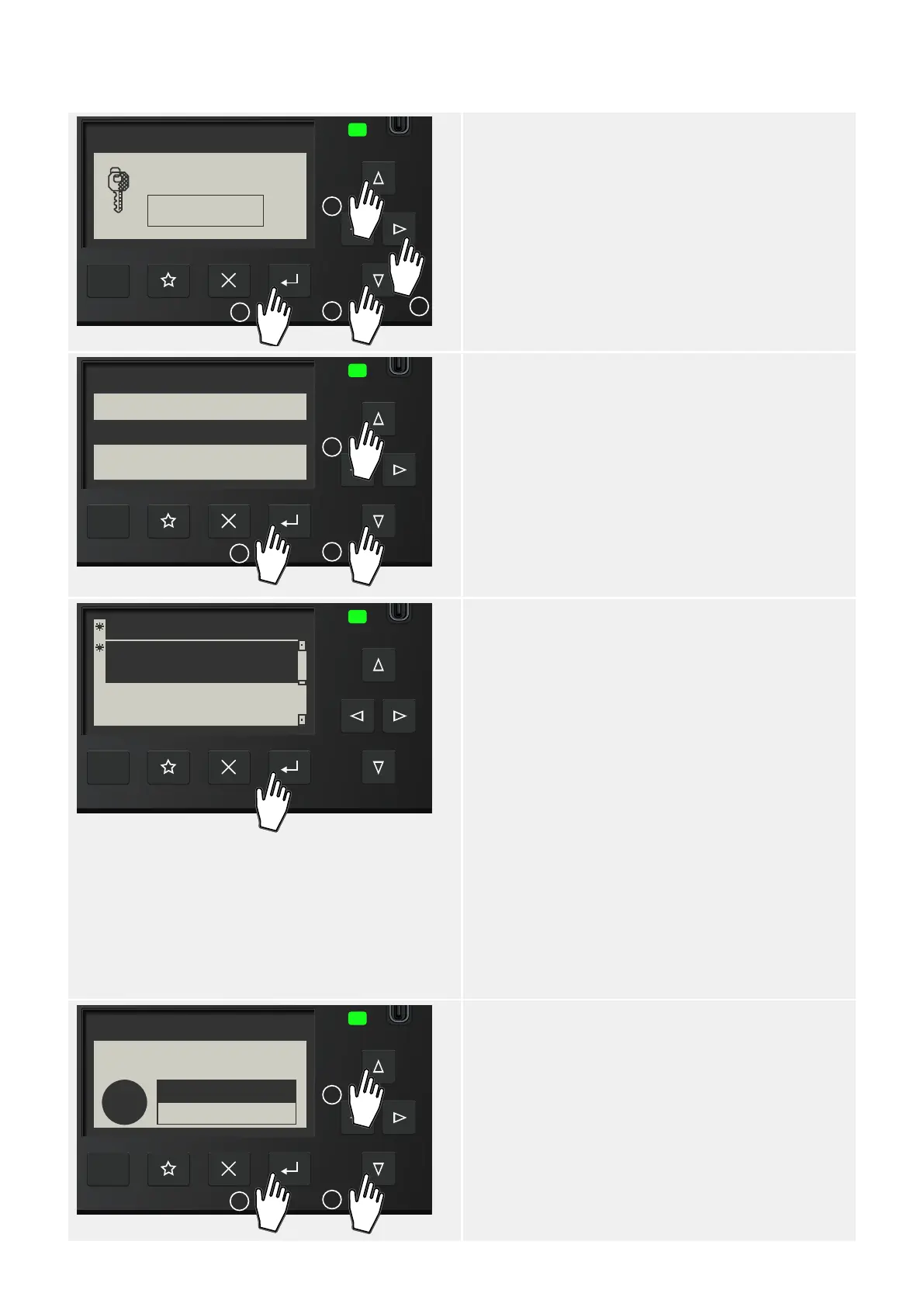

You are asked for the password.
On the DiggiMEC panel, the password is
entered the same way as any numerical
setting value, i. e. via navigation keys »◀«, »▶
« for the position (= selection of the position/
digit within the password) and »▼«, »▲« for
increasing/decreasing the digit. The Enter
key »↵« con󰊟rms the entered password. (A
Smart view user enters the password simply via
the PC keyboard.)
RESET
1
2
IG>>.Mode
-
1
use
Press »▼«, »▲« repeatedly again, until the
required value, for instance: “use”, is
highlighted.
Then press the »↵« key, so that this new value
gets stored (temporarily). (Or, alternatively,
press the »✕« key to cancel the modi󰊟cation.)
Note that the new value is only stored
internally, but not active yet, just as was
already mentioned at the beginning of this
chapter.
RESET
I2/I1>.Mode
Projected Elements
use
IG>>.Mode
-
That 󰊟rst »↵« pressing that you have just done
brings you back to the screen showing the
selected parameter, »IG>> . Mode«.
However, some things have changed now:
• Now the new value “use” is shown.•
• An asterisk character “*” next to the•
parameter indicates that there are
temporary changes for it. In addition,
another asterisk next to the heading line
indicates that parameter changes exist
that have not yet been accepted and
activated by the device. (The “*” remains
there, even if one navigates to some other
menu branch.
Remark: If there is no more input made at
the panel for 10 minutes the changes are
automatically cancelled.
RESET
Session
Activate changed settings?
?
yes
no
1
2
1
Press »↵« again. (In principle, this can also be
done later, i. e. after some more parameter
changes and when being in another menu
branch.)
A con󰊟rmation dialog asks you to explicitly
accept your changes. Make your choice in the
usual manner with the keys »▼«, »▲«, »↵«.
111WIC1WIC1-1.0-EN-MAN
