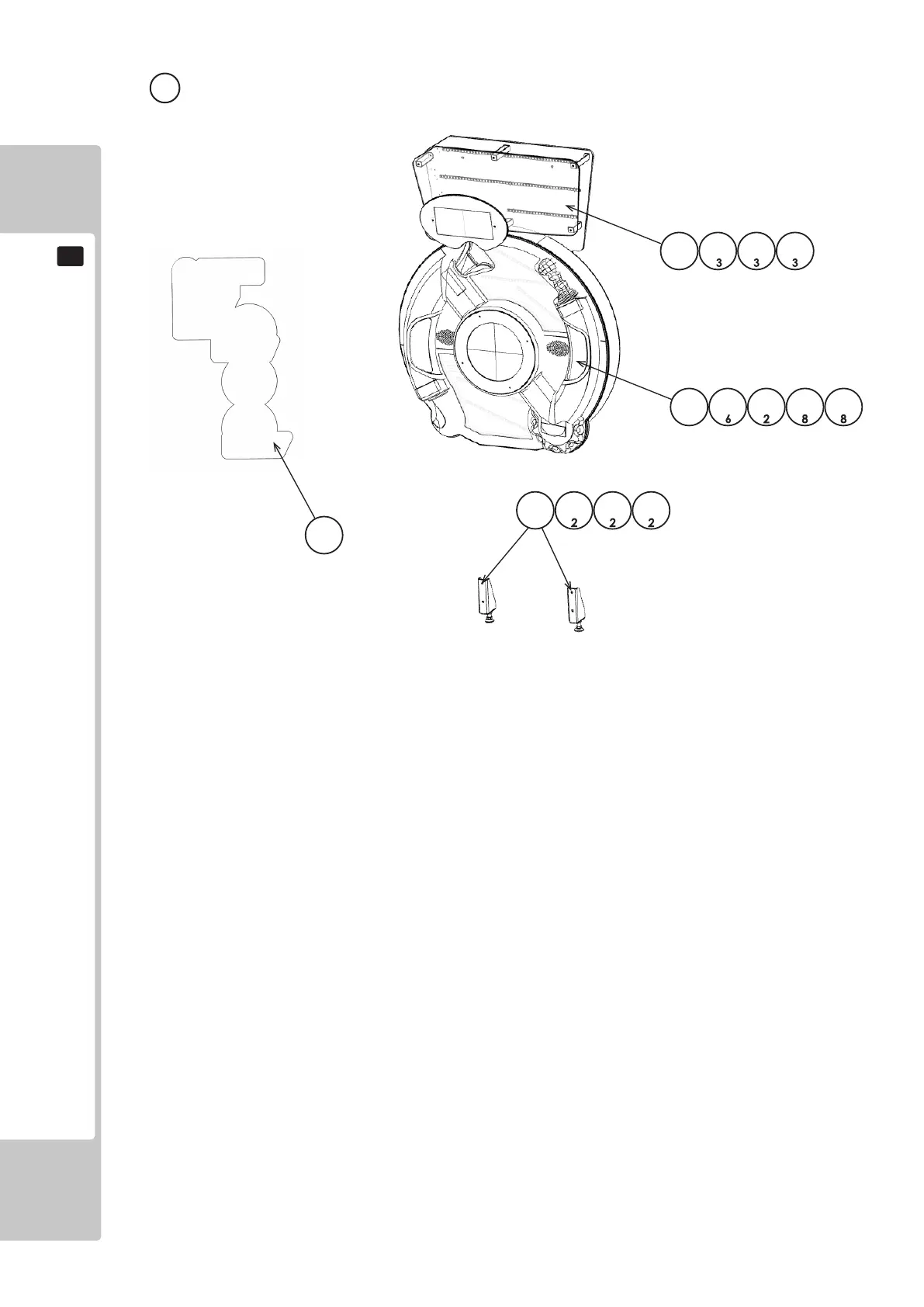

PARTS LIST
17
ITEM NO PART NO DESCRIPTION QTY
**1 BI-0500UK ASSY BILLBOARD 1
**2 BI-3000UK ASSY MAIN DISPLAY 1
**3 BI-0100UK ASSY STABILIZER BACK 2
**4 BI-0002UK BRKT TRANSIT MAIN DISPLAY 2
**10 BI-3029UK COVER QUADRANT TOP R ADDENDUM 1
**101 LM1227 UK MAINS LEAD 10A WITH PLUG 1
**102 LM1246 EUROLEAD 10A EUROPEAN SOCKET 1
**103 LM1500UK MAINS LEAD USA/IEC H80-1205-00 1
**201 029-B00640-0B M6X40 SKT BH BLK 3
**202 029-B00640 M6X40 SKT BH PAS 3
**203 068-652216 M6 WSHR 22OD FLT PAS 7
**204 029-B00850-0B M8X50 SKT BH BLK 6
**205 029-B00825-0B M8X25 SKT BH BLK 8
**206 060-S00800-0B M8 WSHR SPR BLK 14
**207 068-852216-0B M8 WSHR 22OD FLT BLK 14
**208 029-B00625 M6X25 SKT BH PAS 4
**209 060-S00600 M6 WSHR SPR PAS 4
**210 012-P03512-FB N6X1/2" S/TAP FLG BLK 2
**301 RND-60055UK WH COIN MECHANICAL 1
26 ASSY INSTALL KIT BI (BI-INST)
1
2
3
201
202 203
204 205
206
207
205
206
207
10
