Sega bop it ARCADE User Manual

80
GAME BOARD
15

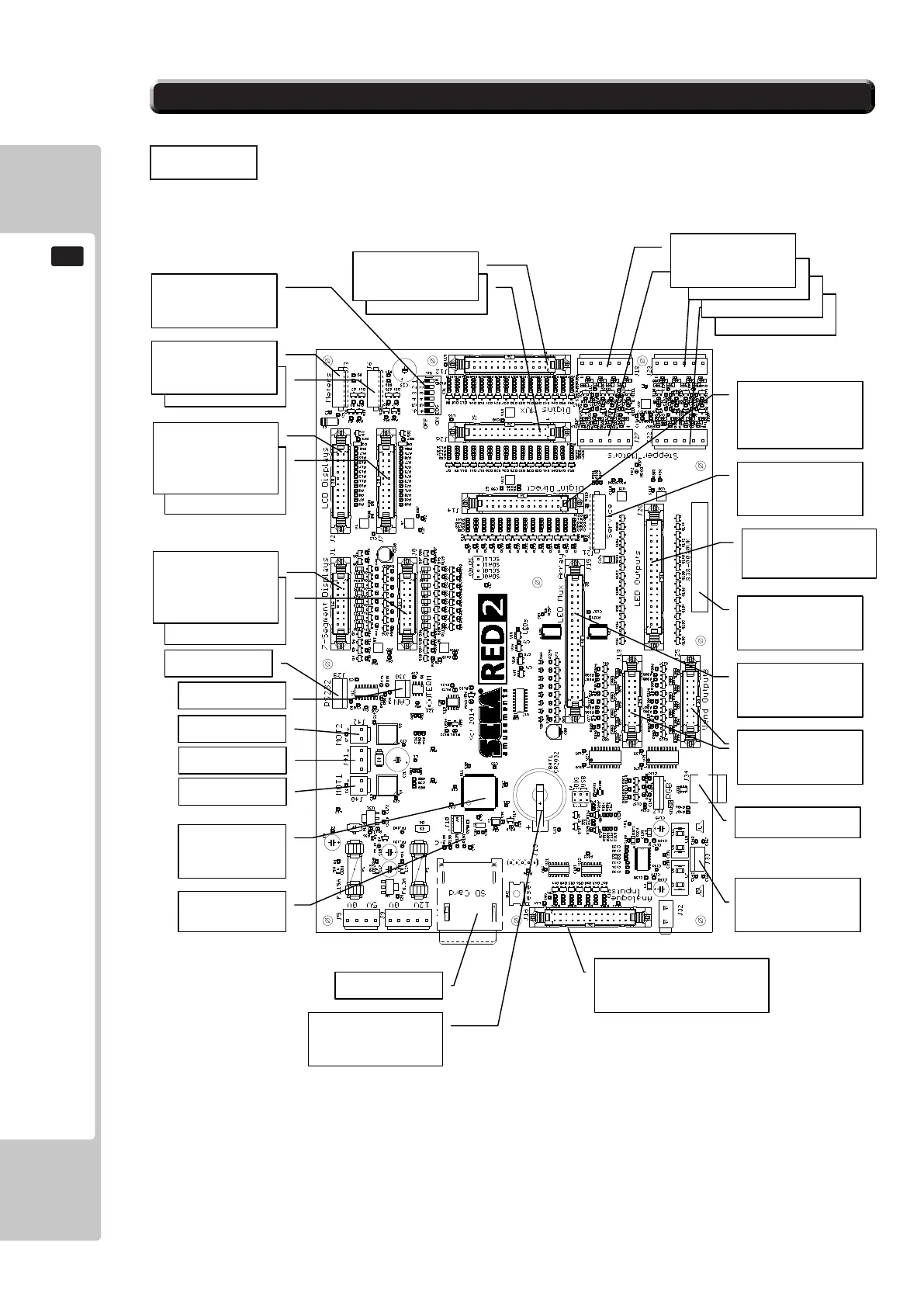

15-4 GAME BOARD - PARTS DETAIL
LAYOUT
The machine is tted with Game Board Unit (RED2) and several other Ancillary Boards which are tted inside the
rear of the Cabinet. Each machine contains the its own CPU.. Only qualied Personnel should attempt to Service
these Units and before gaining access to the machine, it should be isolated from the mains supply
4 Jackpot
7seg digits +
2 Credit digits
16 x 2 LCD
display with
backlight
2 Meter
Outputs
6 Way
DIP Switch
16 Scanned
Digital Inputs
Stepper
Motor Drives
14 “Direct to
processor”
Digital Inputs
Service
Board Con.
LED / 1A LSD
Outputs x32
Mux Array
8x32
Interlocked
Vend Outputs
USB2 Port
Stereo Audio
2x4W RMS
Analogue Inputs x7
Buered 0-5V
SD card
Serial Port
CAN Port
Motor DRV2
Motor DRV1
Motor I/P +v
Battery Backup
for RTC
100MHz
32bit Micro
EEPROM
Serially Driven
LED
s
Output
