WIRE COLOR CODE TABLE
18
121
The color codes for the wires used in the diagrams in the following chapter are as follows:
 A PINK
 B SKYBLUE
C BROWN
D PURPLE
E LIGHT GREEN
Wires other than those of any of the above 5 single colors will be displayed by 2 alphanumeric characters:
1 RED
2 BLUE
3 YELLOW
4 GREEN
5 WHITE
7 ORANGE
 8 BLACK
9 GRAY
If the right-hand side numeral of the code is 0, then the wire will be of a single color shown by the left-
hand side numeral (see the above).

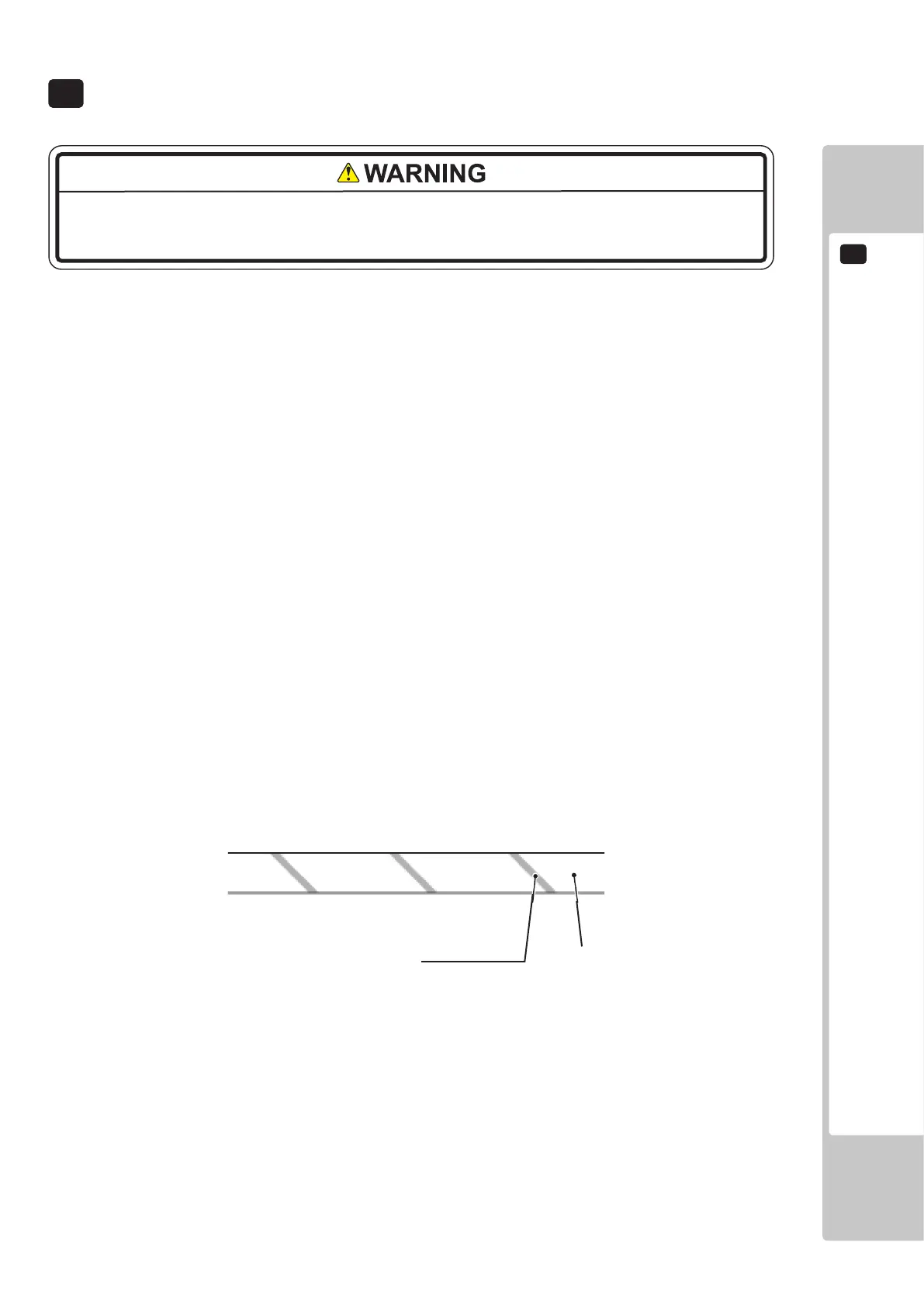

Note 1: If the right-hand side numeral is not 0, that particular wire has a spiral color code. The left-hand
side character shows the base color and the right-hand side one, the spiral color.
<Example> 51………WHITE/RED
RED WHITE
Note 2: The character following the wire color code indicates the size of the wire.
U : AWG16
K : AWG18
L : AWG20
None : AWG22
The DC power wire color for this product is different from previous SEGA titles.
Working from the previous wire colors will create a high risk of re
