52

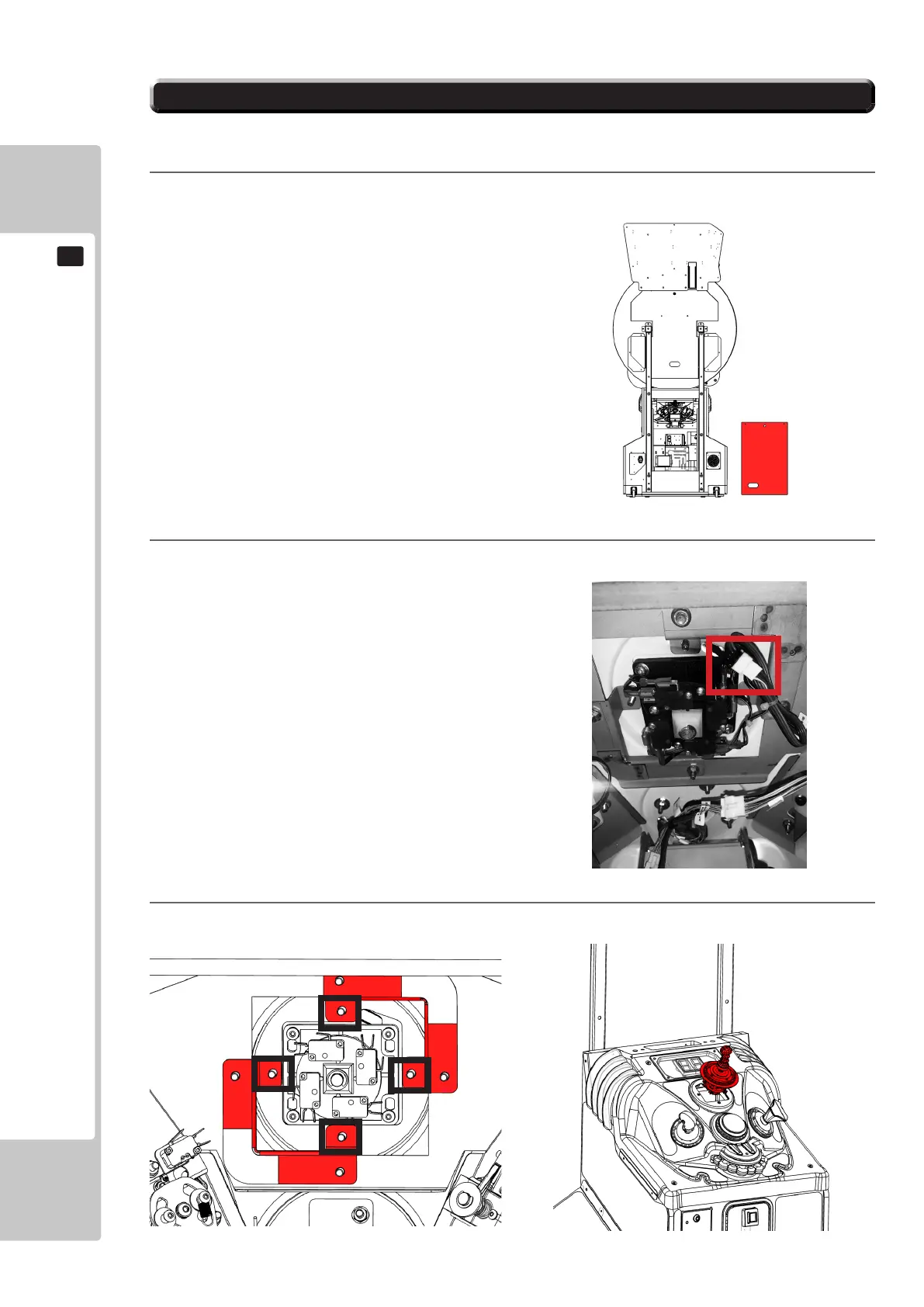

CONTROLLER UNIT
10
10-1 REMOVING THE CONTROL UNITS
1
With the power OFF. Unlock and remove the Door Back Lower
2
Disconnect the related harnessing
10-1-1 - Removing the "Flick-It" Control Unit
3
Remove the (4) ange nuts on the xings highlighted and remove the assembly
