EXPLANATION OF TEST AND DATA DISPLAY
9
The Swith Unit and Counters are housed within the Coin Tower. To access these controls you will need to
open the Coin Door. The switches and counters can be found directly on the rear face of the Tower.
9-1 SWITCH UNIT AND COIN METER
DEVICE FUNCTION
TEST BUTTON
Press to enter TEST MODE - Also used to enter choices selected within
TEST MODE
SERVICE BUTTON
Press for SERVICE CREDIT - Also used to scroll through TEST MENUs
COIN IN COUNTER
Counts inserted coins (£0.10 or $0.10 = 1 count)
VOLUME +/-
Adjusts audio level

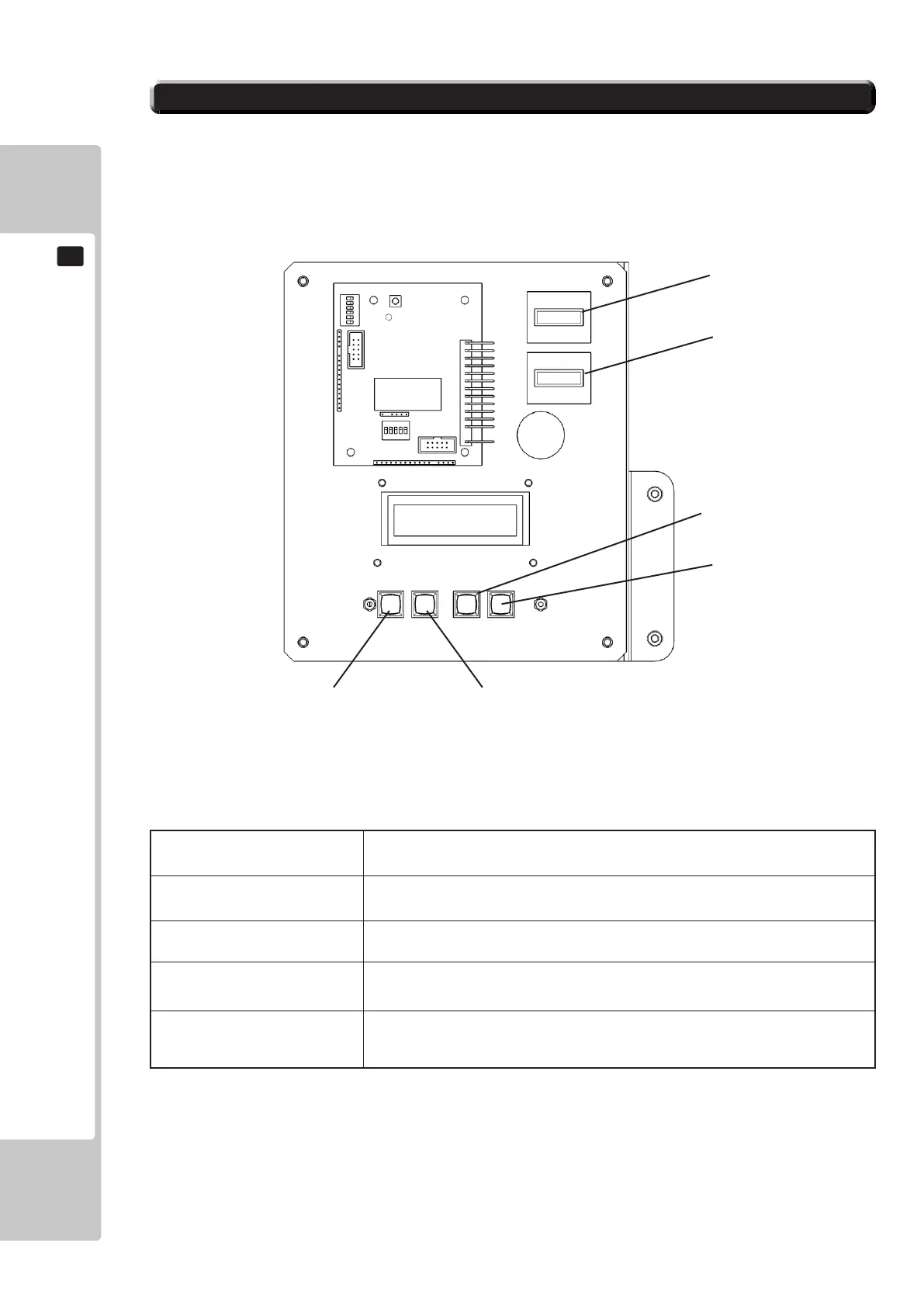

Test Button Service Button
Vol + Button
Coin Counter
Ticket Counter
Vol - Button
