ASSEMBLY AND INSTALLATION
21
6

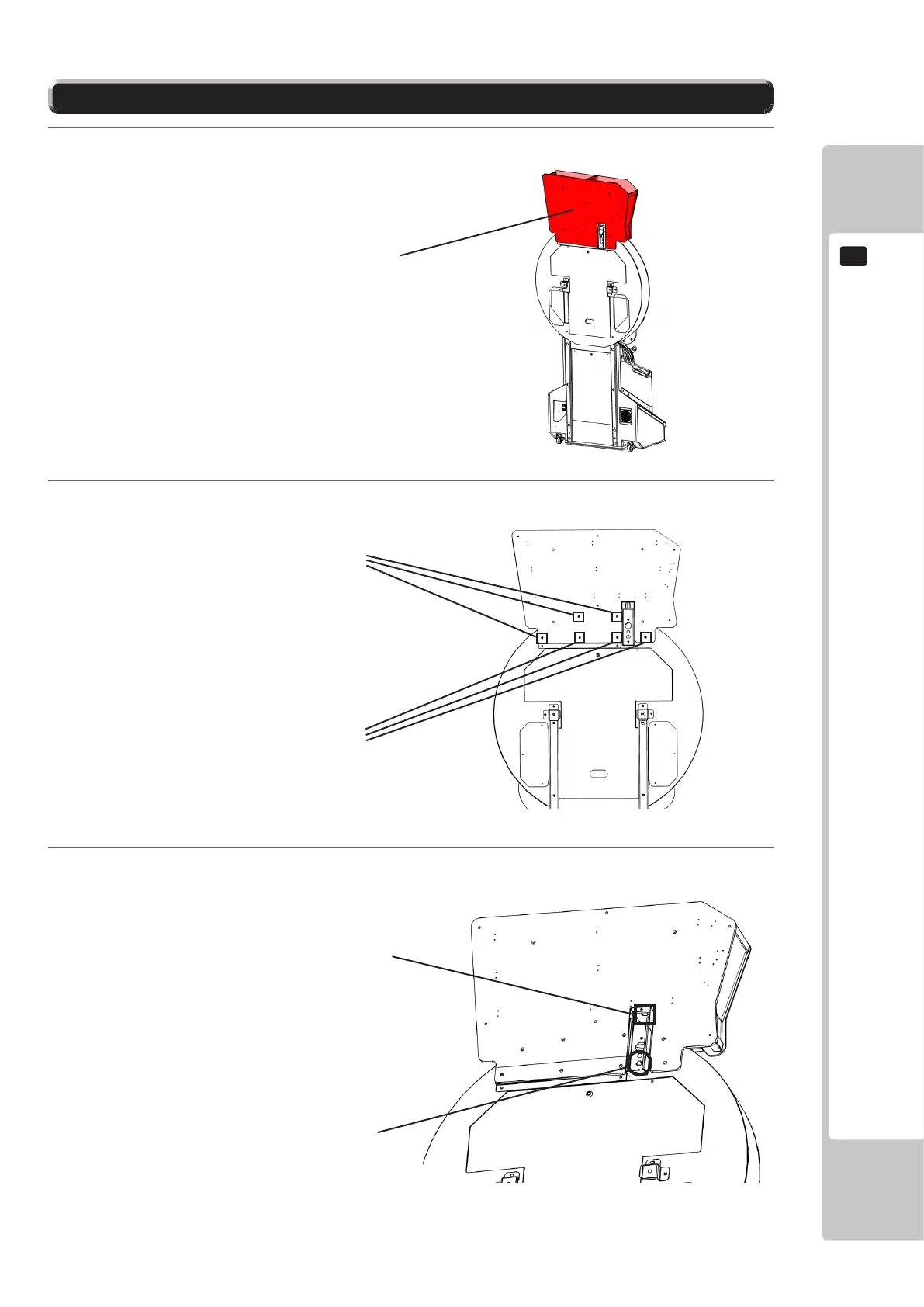

6-3 INSTALLING THE BILLBOARD
1
From the rear of the Cabinet, raise the Billboard into position and insert as shown
2
Secure using the (6) highlighted xings
3
Feed the harnessing of the Billboard through the hole in the Bonus Box Bracket and connect to the location
shown
BillboardHere
Fixings
Fixings
Connect
Feed
Harness here
Harness here
