ASSEMBLY AND INSTALLATION
6
11
Reapply the Door Box Display Back
DoorBoxDisplayBack
10
Connect the Harness to the Panel Mount Connectors. Secure the Display Cabinet by applying the (2) xings
highlighted
Fixings
Panel Mount Connectors
9

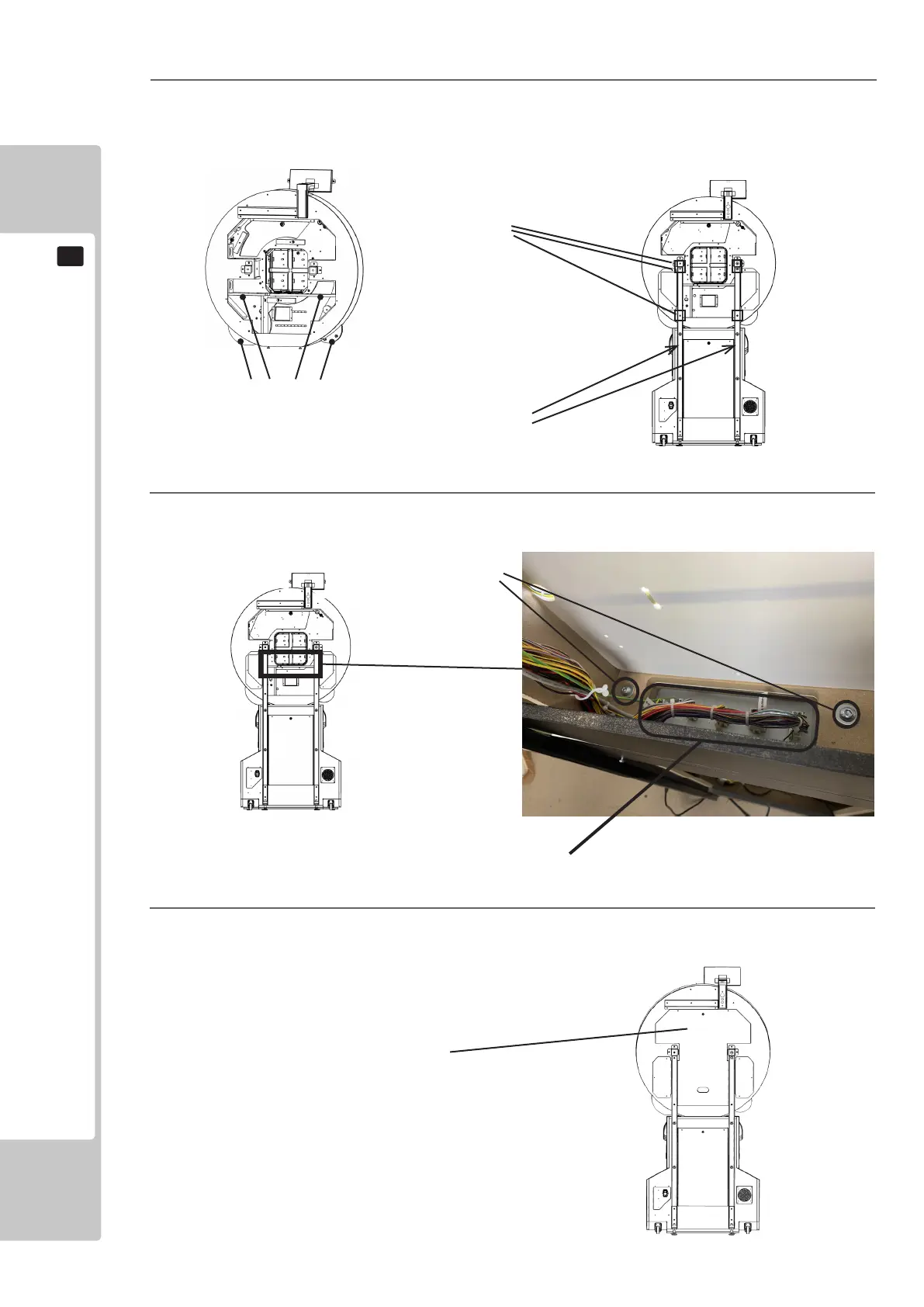

Using at least 2 people, raise and place the Display Cab into position over the Strut Display Support
Brackets (raise Display Cab using grab points to lift). Secure the (3) xings on each bracket to secure the
Display Cab into position
Strut Display
GrabPoints
Support Brackets
Fixings
