GAME BOARD
103
16
5

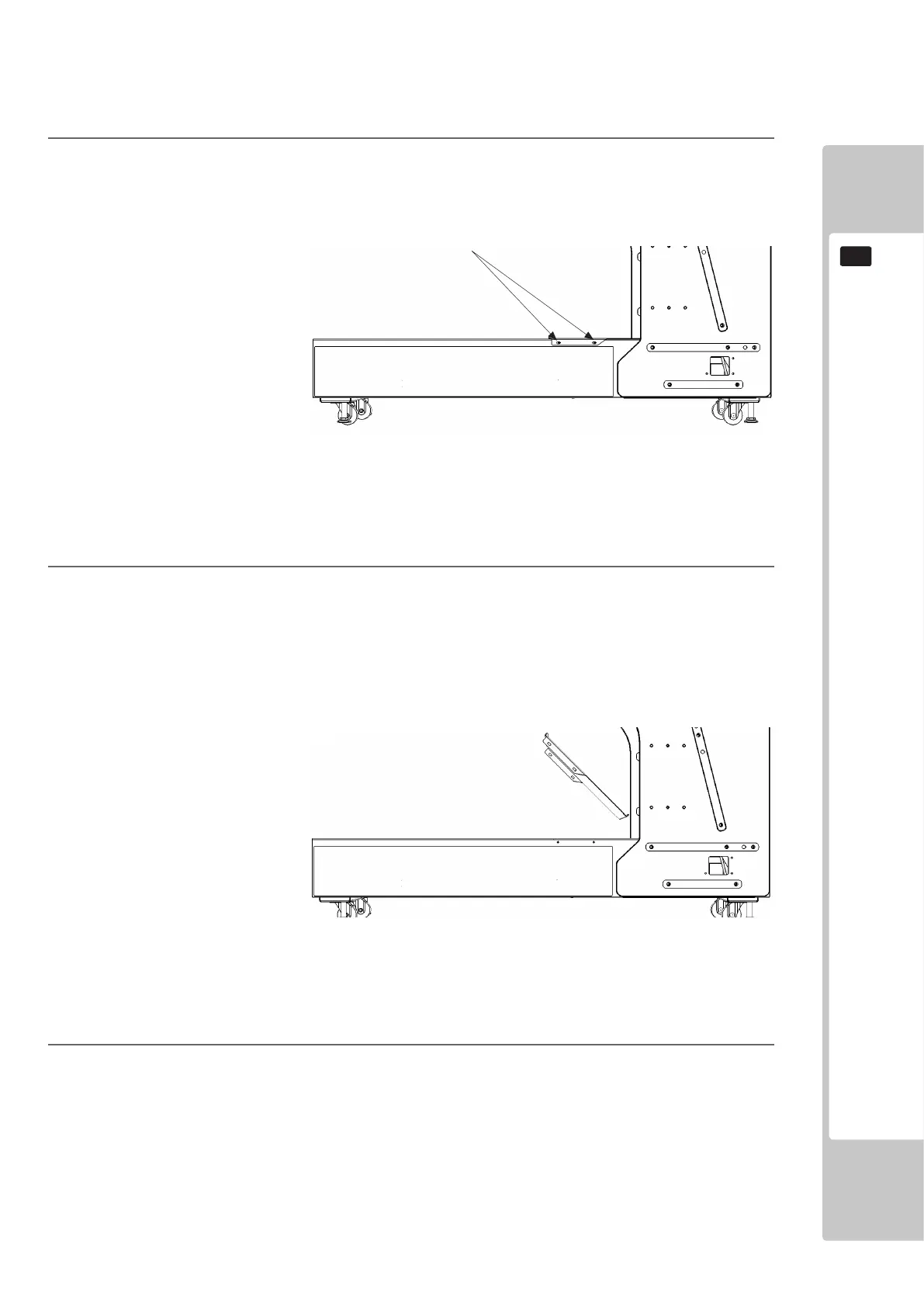

Remove the 4x M4 Security Torx T20 xings from the FOOT PLATE (2 each side)
6
When screws have been removed, TILT the footplate in an upwards direction until the LIP on the backside
of the footplate is clear of the front section of oor and REMOVE the plate.
7
The Game Unit and Control Boards located inside the Cockpit Base are laid out in the following manner.
When replacing a board, make sure that any connectors being removed should be handled correctly with any
location fastener if any being released before disconnecting the connector.
Always disconnect a plug by holding the housing and never tug on the wiring as this may damage the
terminations inside the connecter and lead to electrical failure.
4x M4x16 Security Torx T20
(2 each side)
To Next Page
