104
GAME BOARD
16
8

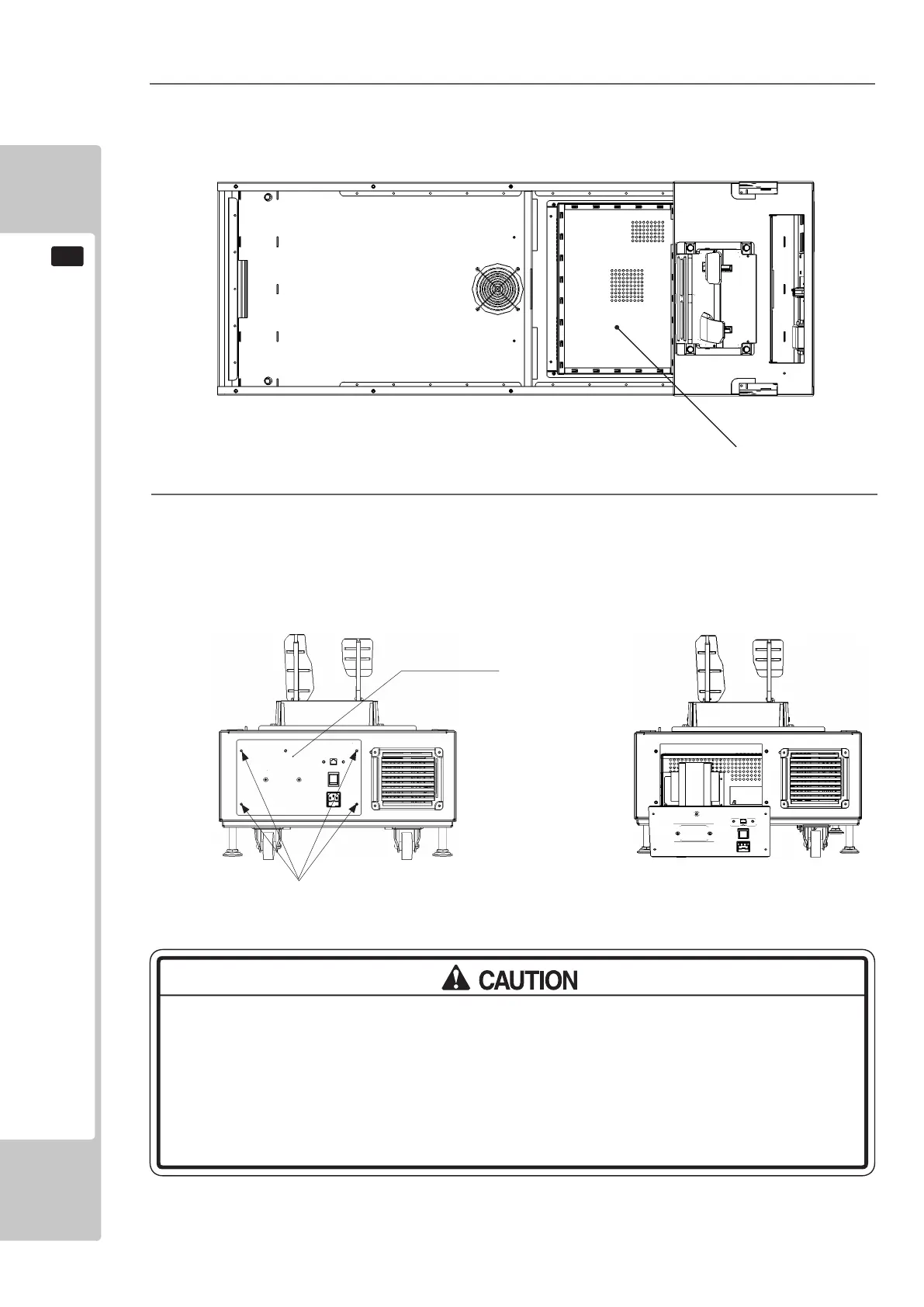

The Assy Game Board is located at the front of the cabinet. For ease of access to the connections to the
Game Board it may be required to remove the AC Bracket (See step 9)
9
For easy access to the GAME BOARD connections, remove the AC BKT by rstly removing the 4x M4 x
12 Machine Screws from the AC PLATE. Remove the plate and place to one side. All connections to the
GAME BOARD can be accessed through the the AC BKT rescess.
Game Board
AC BRACKET
4x M4x12 MSCR PH BLK
Donotopen the Game Board without theexpresspermissionofSEGA.Ifforany
reasonentry has been gainedintotheGameBoard without the permissionof
SEGA,thenallwarrantyrightsbecomevoid.
WhenreturningtheGameBoardtoSEGAforservice,thenpleasemakesurethat
adequatepackagingisusedasdamageintransitmakeoccur.
