ASSEMBLY AND INSTALLATION
6
8

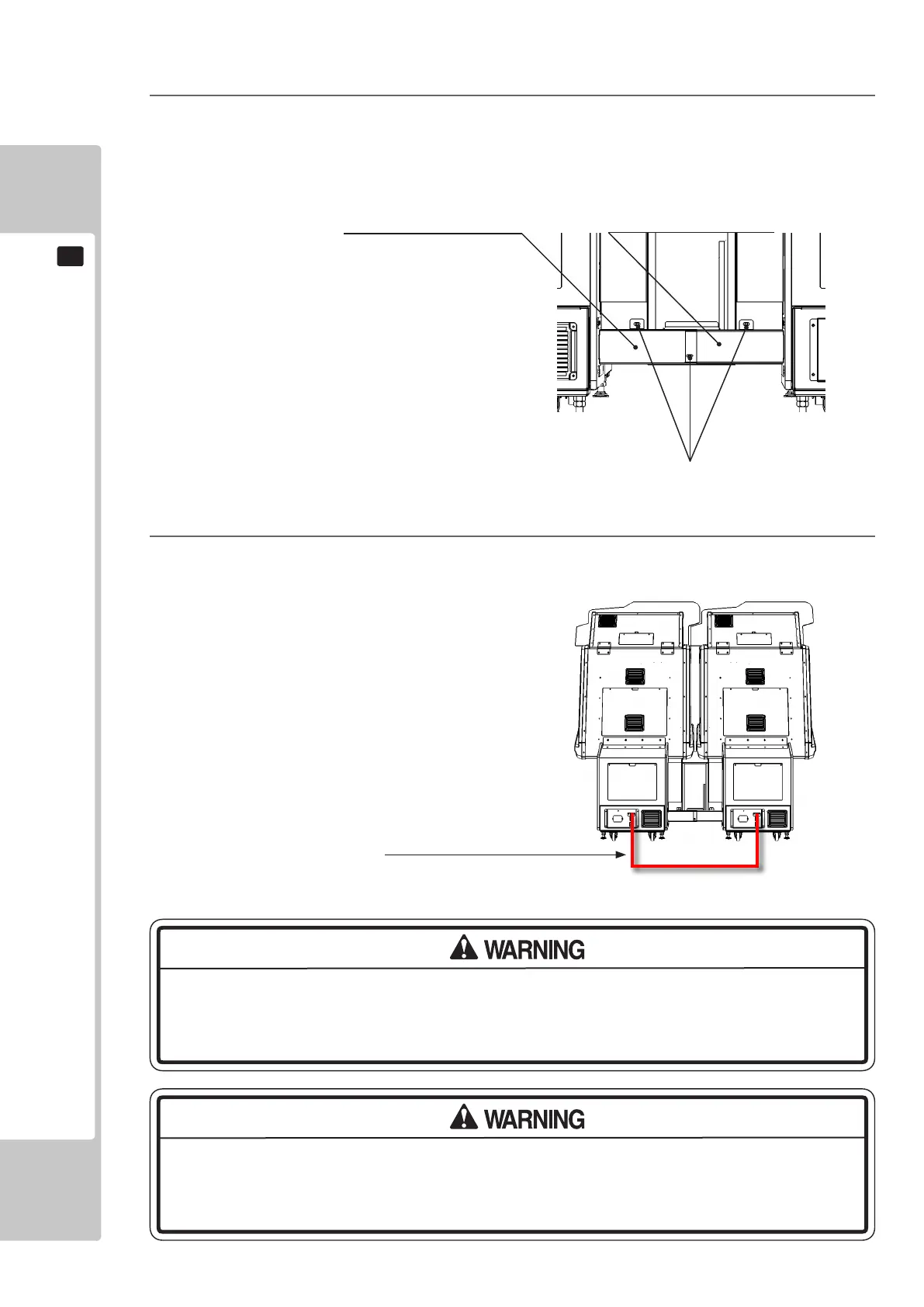

Once all connections have been made, feed any excess harness back inside the Coin Chute Tower. Fit both
Left and Right Wire Covers to the Cabinets and Coin Chute Tower as illustrated.
9
Fit the RED Crossover Network Cable between both cabinets.
Wire Cover Right (PD-0054UK)
Wire Cover Left (PD-0053UK)
Fixing Points - M4x10 MSCR PAN W/FS BLK (3)
• DonottaStandardLanorNetworkCableacrossthecabinetswithouttheuse
ofaHUB.TheREDCrossoverLanCablewhichissuppliedwiththeproductistobe
usedwhenONLYconnecting2cabinetsorsingleTwinnedCabinet.
• Donotmovethemcabinetsonceassembled.Movingthecabinetswhilst
assembledwill causedamagetothe product.Unfastenboth machinesfromthe
CoinChuteTowerAssemblybeforemoving.
Crossover Network Cable (Supplied)
